SunGoldPower

SunGoldPower SGM-655M Off-Grid Wall Mounted Solar Kit with 5.12kWh Powerwall Lithium Battery and 6500W Solar Inverter | 1480W Solar Panel | 48VDC | 120VAC

SunGoldPower SGM-655M Off-Grid Wall Mounted Solar Kit with 5.12kWh Powerwall Lithium Battery and 6500W Solar Inverter | 1480W Solar Panel | 48VDC | 120VAC

SGM-655M

Regular price
Price: $4,210.70
Regular price
$5,140.80
$4,210.70
Sale price
You Save: $930.10 (18%)

--You can save additional 3% OFF on top of all other discounts by paying via wire transfer or Zelle. Details at checkout--

Shipping & Returns

By placing an order at our store - ePowerGuys https://ePowerGuys.com/ - you declare that you have read and accept this Shipping & Returns Policy.

Order Confirmation:

As soon as you place your order, you will receive a confirmation email. After that, we double-check if all items ordered are in stock and available for immediate shipment. If your order is available for the delivery within the advertised time frame, we will submit it for shipment to the warehouse. If the expected delivery time exceeds the advertised time frame, we'll reach out to you via email and/or phone to confirm the order.

Order Shipment:

Within 1-2 business day from the time the item has been shipped, you will receive an email confirmation with tracking number. If you would not receive tracking information within 6 business days of your order, feel free to follow up with us at support@epowerguys.com.

For orders over $500.00 we offer Free Shipping (within the continental US). For orders under $500.00 a Shipping & Handling fee of $49.99 will be applied.

For LTL shipments, Free Shipping is Standard Curbside Delivery.

Curbside delivery is defined as delivery of the freight as close to the actual delivery address as possible. Please remember the size of the tractor trailer and certain safety precautions may prevent the freight carrier from delivering the freight at the actual curb or delivery address.

Curbside delivery is not guaranteed for addresses located on a cul-de-sac, dead-end street or dirt road. In this case, the customer may need to meet the driver at the nearest intersection / paved street that the delivery truck can access.

In special cases, when the customer's address is in a high cost delivery area (e.g. remote suburbs or the center of a large city) Free Shipping is not guaranteed and an additional delivery fee may be required. This mainly applies to ZIP codes 10000-15000, and may also apply to some addresses in the New England Area (Connecticut, Maine, Massachusetts, New Hampshire, Rhode Island, and Vermont), Washington and Oregon.

Note - items heavier than 1,400 lbs may require delivery to a delivery dock or fork truck to unload them. Additional charges might apply.

To confirm the availability of Fee Shipping - Standard Curbside Delivery Option, please contact the ePowerGuys Team before placing your order.

Estimated Time of Shipping:

Our standard shipping out time for orders from our warehouse to the customer is 4-12 business days and most orders are shipped within 3-6 business days of placing the order. Custom-made products are usually shipped within 8-12 weeks. If the expected shipping date for your order would fall outside of the advertised 4-12 business day time frame, our customer service team will reach out to you to confirm if you are OK with that date.

Customer Responsibility for Shipping Address Accuracy:

It is the customer's responsibility to ensure that the shipping address entered at checkout is complete and accurate. We fulfill orders strictly based on the information provided during the purchase process.

Liability Waiver:

We are not responsible for orders that are lost, delayed, or delivered to an incorrect destination due to an error in the shipping address provided by the customer. We are not responsible for orders that are lost, delayed, or delivered to an incorrect destination due to an error in the shipping address provided by the customer. We are not liable to provide refunds or complimentary replacements for items successfully delivered to an incorrect address originally provided by the customer at checkout.

Address Corrections:

Address modifications can only be requested before the order has been processed or shipped. Once a tracking number is generated or the package is in transit, no changes can be made.

Returned Packages:

If a package is returned to our warehouse due to an incorrect or incomplete address, the customer will be responsible for the cost of re-shipping the order to the corrected address.

Areas Covered:

All estimated delivery dates and shipping costs advertised on the website apply to the Contiguous United States only. Please contact our customer service team to confirm the possibility, time and cost of shipping to Hawaii / Alaska / Puerto Rico. We don't ship directly to Canada, but we can ship your order to the freight forwarder of your choice.

    Damages:

    It is very important that you inspect the packaging of your items and the items themselves when they arrive and check if you received all boxes listed on the delivery receipt.

    If you notice any damage or shortage of packages, you must make note of it on the bill of lading, take pictures, and REFUSE DELIVERY. Your note should say "refused due to damage". You must also take photos of all sides of the box and send them to us within 24 hours. If there are no damages visible before opening the box, you must note "subject to further inspection, may contain concealed damage".

    If a shipment with a damaged item is accepted by the recipient (even if the bill of lading would include information about the damage), we will not be able to offer you a replacement item or a refund for your order.

    After receiving the shipment and before unpacking the item, be sure to take photos of the packaging from all sides, even if there are no visible signs of damage - this is very important if after unpacking it turns out that the item has concealed damage and we would have to file a complaint with the carrier / manufacturer of the item.

    If you notice any damage after receiving the delivery, do not throw the box away, and contact us with the photos. After we receive information from you about the refused delivery or concealed damage, we immediately initiate a claim with the shipping company or with the manufacturer. After the claim is fully processed, we ship all replacements at absolutely no cost to you.

    Cancellations & Refunds:

    We can cancel your non-custom-made or non-made-to-order order at absolutely no cost to you before the shipping label or Bill of Lading has been created.

    Custom-made or made-to-order products are not eligible for refunds after the order and its conditions have been confirmed by the customer.

    Orders delivered outside the continental United States are not eligible for returns or refunds. In the event that an order shipped outside of the continental US needs to be returned for warranty service, you will be responsible for the cost of shipping the item to the designated location within the continental US.

    Any additional delivery options that go beyond the standard Free Shipping such as high cost delivery area fee / expedited delivery / to the garage delivery / inside delivery / white glove delivery etc. are non-refundable.

    If your order arrived damaged, "Damages" section applies.

    To be eligible for a return, the item must be unused and in the same condition as you received it. It must also remain in the original packaging, and the packaging must be in a perfect condition. We do not charge restocking fees or return shipping fees. All eligible returns are 100% free.

    Our refund policy lasts 45 days. If 45 days have gone by since you received your item, unfortunately, we can’t offer you a refund.

    Before approving the return procedure for your item, we must receive photos of the unpacked product (on each side) and the product packed in the original packaging (on each side) - based on the photos received, we can assess whether the item is subject to the return procedure.

    If you want to return the ordered product, it has to be arranged in the same manner it arrived to you. For products delivered via LTL freight, it must be packed in its original packaging on a pallet and made available for pickup by our carrier within 45 days from the date the product was delivered to you, at the exact same location to which it was delivered.

    For products not shipped as LTL freight (e.g. via FedEx Ground / UPS / USPS), the product you wish to return must be packed in the original packaging and made available to the courier for pickup or dropped off at the local branch of the shipping company within 45 days of where the product was delivered to you.

    Please contact us at support@epowerguys.com before returning an item to discuss shipping details.

    Refunds

    We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.

    If more than 15 business days have passed since we’ve approved your return, please contact us at support@epowerguys.com.

    Lowest Price Guarantee

    We work very hard to ensure that we offer the absolute best prices online. If you find another legitimate online store that offers a lower prices on an identical item we stock (including shipping, tax, etc.), we will beat the competitor's price by 10% of the difference! Please see below for complete details.

    Please fill out the form below to find out if you qualify for the discount. In most cases you will receive a response within 1 business day.

    To request your 110% Best Price Guarantee simply email us a link to the same product on our website, or on our competitors' website.

    Our 110% Price Guarantee has some limitations:

    • Promotions such as rebates and buy one, get one free offer are not eligible
    • The item must be in stock on the competitors' website
    • The competitor must be an online store, they may not have a retail location
    • The website can not be a discounter or auction website (i.e.; eBay, overstock, etc..)
    • The competitor must be an Authorized Retailer of the product in question, and must not be violating advertising price agreements with the manufacturer
    • The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax

    There may be brands excluded from that offer. Please contact us for further information.

    VIP Extended Warranty - Why is it worth it?

    Top Reasons to Choose Our VIP Extended Warranty:

    • Guaranteed Repair or Replacement
      Comprehensive Coverage: If your unit encounters any issues, we'll repair it or simply send you a new or refurbished product of similar quality.
      Fast Resolutions: We prioritize quick service to minimize any inconvenience to you.
    • Zero Hidden Costs
      No Deductibles: You won’t pay anything extra when you need service.
      Transparent Terms: What you see is what you get—no surprises.
    • VIP Coverage for 1, 2, or 3 Years from the Date of Purchase
      Hassle-Free: Enjoy complete coverage for your purchase throughout the entire warranty period with no additional costs.
      No Unnecessary Questions: We make the process smooth and straightforward.

    Exceptional Benefits:

    • Extended Protection Options
      Flexible Terms: Choose coverage for 1, 2, or 3 years based on your needs.
      Beyond Manufacturer’s Warranty: Enjoy additional protection that surpasses the Manufacturer's Warranty.
    • Covers Normal Wear and Tear
      Real-World Use: We cover breakdowns from everyday use, not just defects.
      Power Surge Protection: Includes mechanical or electrical failures caused by power surges.
    • Dedicated Support Team
      Expert Assistance: Our technical support team is always ready to help.
      Easy Communication: Reach us via phone or email for prompt service.

    Why This Warranty is a Smart Investment:

    • Protect Your Investment
      Avoid Unexpected Costs: Save potentially hundreds on repairs or replacements.
      Long-Term Savings: The warranty pays for itself with just one claim.
    • Peace of Mind
      Stress-Free Ownership: Use your product without worrying about potential issues.
      Reliable Service: Trust that we have you covered, no matter what happens.
    • Easy and Efficient Claims Process
      Simple Steps: Provide photos or videos of the issue—no complicated paperwork.
      Quick Turnaround: We work swiftly to resolve your claims.

    Effortless Claim Process:

    • Document the Issue
      Snap a photo or record a video of the problem.
    • Contact Us
      Email: support@epowerguys.com
      Phone:  +1 (888) 556-5886
    • Quick Troubleshooting
      Our team will help identify simple fixes or confirm if a replacement is needed.
    • Receive Replacement
      If necessary, we'll guide you through receiving and installing your replacement component.

    What the VIP Extended Warranty Does Not Cover:

    1. Manufacturer's Warranty or Recalls: Repairs covered by the manufacturer's warranty or recalls.
    2. Unauthorized Service: Damage caused by unauthorized service or parts.
    3. Extraordinary Events: Loss or damage from events like invasion, rebellion, riots, acts of god, strikes, or civil disturbances.
    4. Additional Costs: Costs for installation, setup, or diagnostic services unless specified, return shipping fees.

      Eligible Products:

      1. Solar Panels
      2. Inverters
      3. Batteries
      4. Portable Power Stations

          Contact Us Anytime:

          ePowerGuys
          30 N Gould St, Ste 24751
          Sheridan, WY 82801
          Email: support@epowerguys.com
          Phone: +1 (888) 556-5886

          Invest in Peace of Mind:

          The VIP Extended Warranty isn’t just a service; it’s a commitment to your long-term satisfaction. Protect your valuable solar and power solutions today and enjoy stress-free ownership for years to come!

          The SGM-5K5E Solar Kits come with mostly what you need to set up an off-grid solar system. It includes the 5000W inverter, allowing you to connect a maximum of 5000W of solar panels, 6 X 200W solar panels, 5.12KWH server rack batteries, a set of solar cables, and brackets. The Solar Array will produce around 5.12KWH per day based on 4 hours of sun. The system is ready for expansion; up to 6 identical inverters can be paralleled in single-phase (120VAC) or split-phase (240VAC) or three-phase (208V). You can add more batteries and solar panels according to your requirements. With Wi-Fi monitoring, the system shows the performance and energy data of your solar system through an app. Let’s enjoy off-grid living and the adventure with the Solar Energy Kit!

          SunGoldPower offers 6 models of Wall Mounted Solar Panel Kit:




          CA Residents: See Prop 65 Warning

          Features

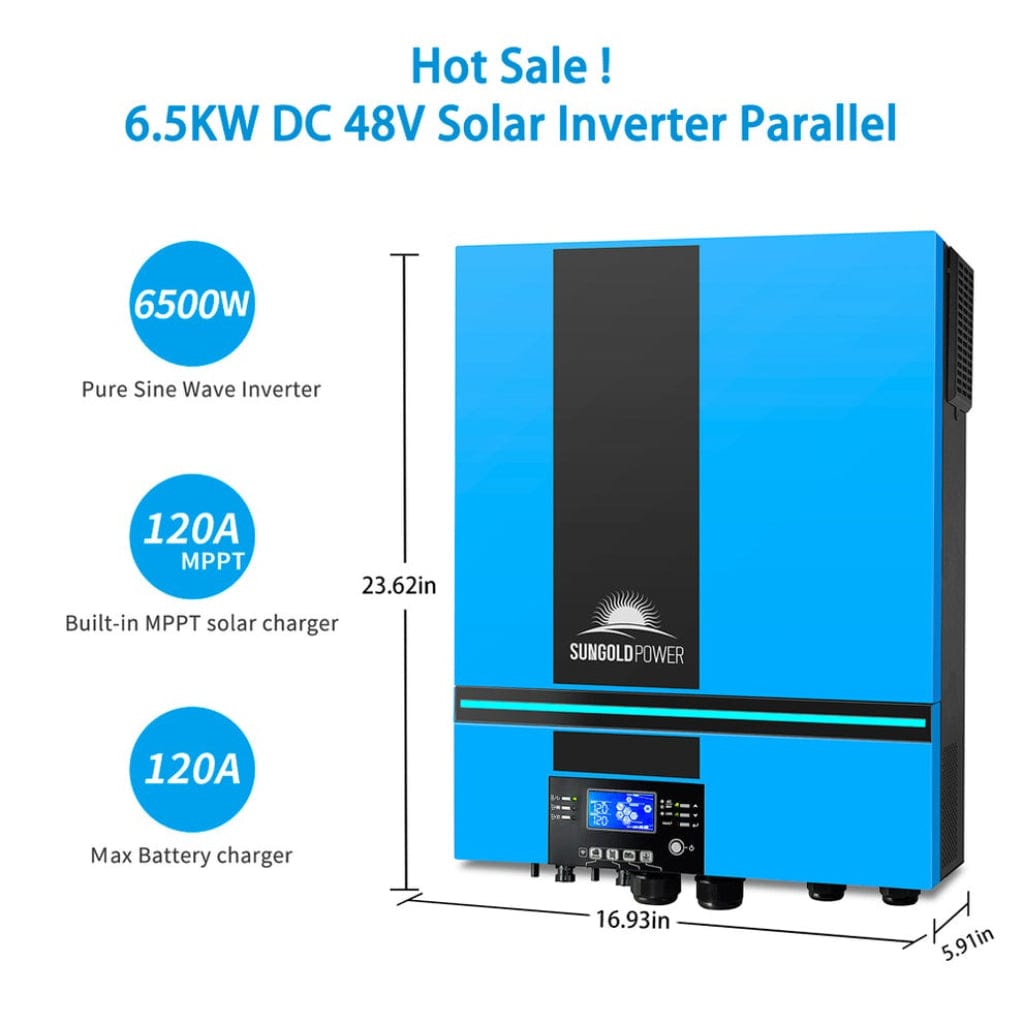

          SunGoldPower 6500W 48V Solar Charger Inverter UL1741 Certified

          • Solar Inverter: It provides a 6.5KW DC 48V pure sine wave AC output at 120V. It has a built-in MPPT solar charger with a maximum capacity of 120A and a utility battery charger also with a maximum capacity of 120A. The maximum PV input is 390V (VOC), and it supports dual PV input. The inverter is UL 1741 Standard Listed by TUV / CSA / FCC.
          • Parallel Kit: This feature allows for parallel support up to 6 units. It is capable of 120V single phase with 1 unit, 120V/240V Split Phase with 2 units in parallel, and 208V 3-Phase Support with 3 units in parallel.
          • WIFI Model: The inverter includes a built-in WIFI transmitter, enabling inverter data to be transmitted via WIFI to the user's iPhone or Android smartphone. An app can be downloaded from the Apple or Android store for monitoring.
          • Batteryless Support: The inverter can power loads from the PV array or AC grid without a battery connected.
          • LCD Operation: It features a detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232).

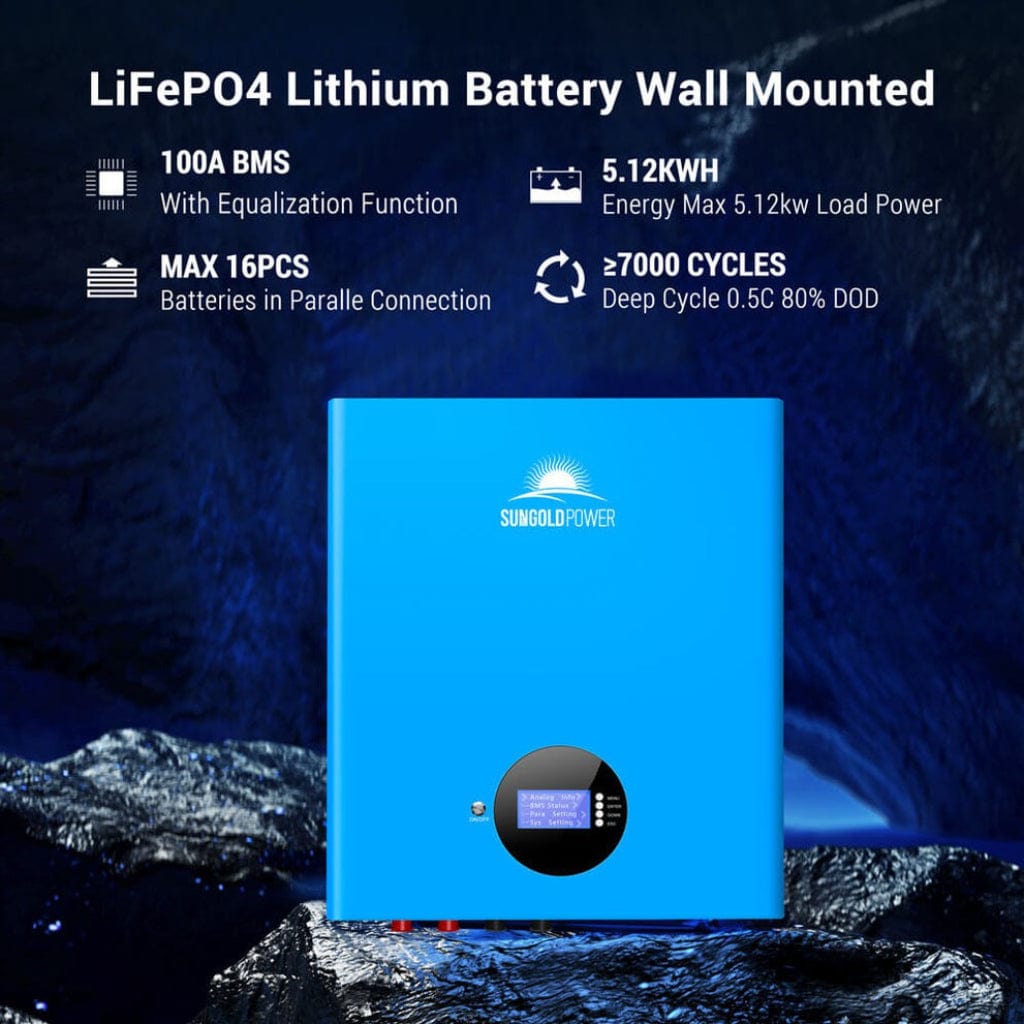

          SunGoldPower 5.12kwh Powerwall LiFePO4 Battery

          • Capacity: It has a storage capacity of 5.12 kWh, making it a high-capacity energy storage solution suitable for both home and commercial use.
          • Battery Type: The battery uses LIFEPO4 Lithium technology, known for its long lifespan and high energy density.
          • Battery Management System (BMS): It includes an advanced BMS for protection against overcharging, overheating, and other risks, ensuring a long lifespan of over 7000 deep cycles.
          • Modular Structure: The battery has a modular design, allowing for system expansion up to 81.9kWh, catering to growing energy needs.
          • Compatibility: It is compatible with a wide range of inverters, thanks to its versatile communication protocols, making it a seamless addition to most energy systems.
          • LCD Display: Features an LCD display for easy monitoring and management of the battery's status.
          • IP65 Rating: It has an IP65 waterproof rating, making it suitable for use in environments with light rain and splash protection.
          • Anti-Theft Sensor: Includes a sensor c-sensor-anti-theft function for added security.

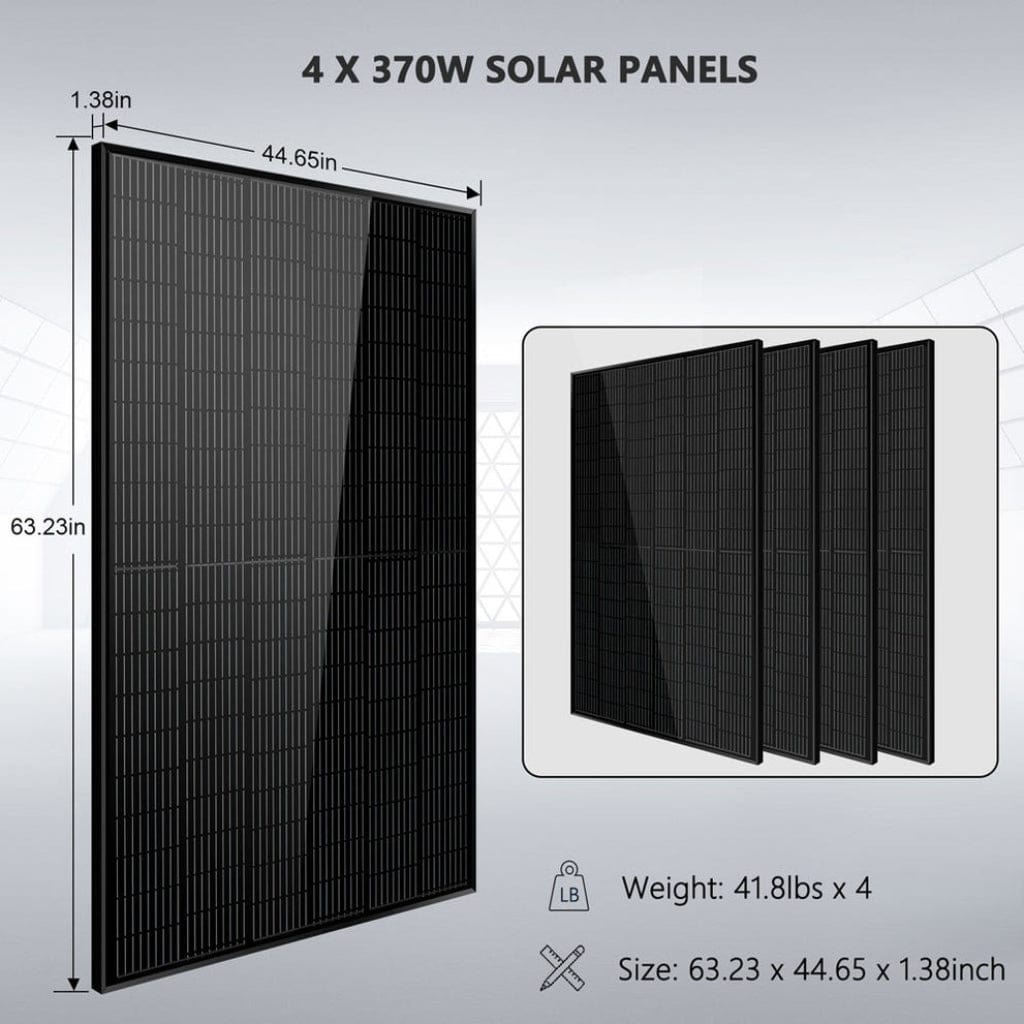

          SunGoldPower 370W Mono Black PERC Solar Panel

          • High Efficiency Module: It utilizes Mono PERC Half-Cut Technology, achieving a module efficiency of up to 20.3%. This technology allows the panels to provide more output per surface area compared to traditional panels.
          • High Tolerance: The panels are made with half-cell technology, enhancing power output and performance. They offer a higher shade tolerance due to their unique wiring system and an increased number of cells.
          • Wide Application: Suitable for off-grid, on-grid, or hybrid solar systems. It can be used in various facilities such as RVs, tiny houses, marine, household power supply, and commercial buildings, helping to reduce power consumption and save costs in the long term.
          • Warranty: The solar panels come with a 10-year workmanship warranty and a 25-year linear performance warranty. They are TUV certified, with UL certification expected to follow.
          • Waterproof: The solar junction box and solar connectors are IP68 rated, protecting them from dust and ensuring proper functionality after temporary immersion in water (up to 1m deep).

          Weight & Dimensions

          SunGoldPower 6500W 48V Solar Charger Inverter UL1741 Certified

          Weight (lbs) 43
          Dimensions
          Length
          Width Height
          23.6" 16.9" 5.9"


          SunGoldPower 5.12kwh Powerwall LiFePO4 Battery

          Weight (lbs) 108.5
          Dimensions
          Length
          Width Height
          23" 16.5" 6"


          SunGoldPower 370W Mono Black PERC Solar Panel

          Weight (lbs) 41.8
          Dimensions
          Length
          Width Height
          63.23" 44.65" 1.38"
          ***This is the weight and dimensions of each solar panel***


          Specifications

          SunGoldPower 6500W 48V Solar Charger Inverter UL1741 Certified

          Model Type BluePower SP6548
          Rated Power 6500W
          Parallel Yes, 6 units
          Voltage 120V
          Selectable Voltage Range 90-140 VAC/80-140 VAC
          Frequency Range 14.09A
          AC Voltage Regulation 120V AC +- 5%
          Surge Power 12000VA
          Efficiency 93%
          Transfer time 20ms
          Perform Pure Sine Wave
          Battery Voltage 48V DC
          Low DC Cut-off Voltage Self-defined from 42-48Vdc
          Bulk Charging Voltage Self-defined from 48V-62V
          Overcharge Protection 66 VDC
          Solar Charger Type MPPT
          Maximum PV Array Power 8000W (2 x 4000W)
          MPTT Operation Voltage 90-350VDC
          Maximum PV Array Open Circuit Voltage 390VDC
          Maximum Solar Charge Current 120A
          Maximum AC Charge Current 120A
          Maximum Charge Current 120A
          Communication Interface USB/RS232/RS485/WIFI/DRY-Contact
          Certification UL 1741 Standard Listed by TUV / CSA / FCC.



          SunGoldPower 5.12kwh Powerwall LiFePO4 Battery

          Model Type SG48100M
          Rated capacity 100Ah
          Nominal voltage 51.2V
          Recommended charging voltage 54.5V
          Charging Limited Voltage 42V
          SOC working range 0~100%
          Standard discharge current 50A
          Maximum continuous discharge current 100A
          Standard charging current 50A
          Maximumcontinuous-charge current 100A
          Maximum cut-off voltage for charging. 57.6V
          Charge cutoff.current 5A
          Disharge cut-off voltage 43.2V
          PACK.cyele life ≥7000
          Thermal management method Natural heat dissipation
          IP protection class IP65 battery box
          Flammability rating plastic parts UL94 V-0
          Total system mass Around 43KG
          Battery system shell material 299U Q235A
          Shipping SOC SOC45-55%
          Design life 15 Year
          Parallel function Supports up to 16 batteries in parallel
          Anti-theft function Sensor c-sensor-anti-theft function
          Display function English smart display
          Charging current limit function Current limit 20
          Communication mode RS232/RS485/CAN
          Communication protocol Support multiple protocols
          Storage ambient temperature 14°F~113°F
          Working temperature Battery charging:32°F~113°F, Battery discharging:-4°F~140°F
          Relative humidity of working environment ≤95



          SunGoldPower 370W Mono Black PERC Solar Panel

          Model Type SG-370WM
          Peak Power (Pmax) 370W
          Production tolerance ±3%
          Maximum Power Current (Imp) 11.15 A
          Maximum Power Voltage (Vmp) 33.2V
          Short Circuit Current (Isc) 11.81A
          Open Circuit Voltage (Voc) 40.17V
          Maximum System Voltage 1500V
          Wind Resistance 2400Pa
          Output Cables 12 AWG (1ft per cable)
          Number of Cells 120(6*20)
          Cell Type Mono 166*83mm
          Certifications CE TUV

          What's Included?

          INCLUDED
          1 X 6500 Watt UL 1741 48V DC 120V AC Output
          • 6500W
          • 48V DC
          • 120V AC Output
          • UL1741 Certified

          1 X 100AH 51.2V PowerWall Lithium Battery
          • 51.2V
          • Made of Lithium Iron Phosphate
          • 100Ah
          • 5.12kWh


          4 X 370 Watt Monocrystalline Solar Panels
          • 370W
          • Monocrystalline
          • 2400Pa wind resistance
          • CE, TUV

          4 X Sets of Mounting Z-Brackets

          • Lightweight Aluminum Corrosion, for RVs, Trailers, Boats, Yachts, Wall and Other Off Gird Roof

          1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input

          • 10 AWG Solar Extension Cable 50Ft

            Warranty

            WARRANTY & RETURN

            We hope you have enjoyed your online shopping experience with Sungoldpower. Please read below for more information about our warranty and return policies.


            WARRANTY & RETURN POLICY

            The warranty period for is 1~25 years for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

            Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.


            LIMITED TO ORIGINAL CONSUMER BUYER

            The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.


            EXCLUSIONS

            Sungoldpower's warranty does not apply to: Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature. Attempted repair by anyone other than an authorized facility. If any modified products received will be returned to you at your expense.



            REPLACEMENTS

            Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product. If the products appear faulty because of inappropriate operation, we can only help fix the issue and don’t accept returns or replacements. The customer needs to pay all the fees for accessories and shipping

            If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)


            RETURN

            Sungoldpower offers a 30-day money back guarantee for goods purchased directly from Sungoldpower.com.We are confident that you will love your new Sungoldpower product. However. If for any reason you are not fully satisfied with your purchase, you may return your products within 30 days as long as they are new, undamaged, and unmodified. We cannot guarantee that your item will be accepted for a refund or exchange if it does not meet these requirements. If you are unsatisfied for any reason, simply let us know within 30 days. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. Once we receive the product and confirm the validity, we will refund the full purchase price. Return requests outside of 30 days require special authorization.


            PLEASE BE PREPARED FOR THE FOLLOWING INFORMATION:

            Order number

            Video or photo of the faulty product (if applicable)

            The item with the original packaging.


            REFUNDS (IF APPLICABLE)

            Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

            If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.



            USED PRODUCTS

            The warranty period is one year. If the product appears a problem within 30 days naturally, Sungoldpower will cover all the shipping fees and repair fees for back and forth. If the product appears a problem within 1 year naturally, Sungoldpower will cover the repair fee and the customer needs to cover the shipping fee for back and forth.Sungoldpower shall not be responsible for the after-sale of products purchased through sales channels other than those designated by Sungoldpower. Customers can purchase accessories from Sungoldpower but Sungoldpower is not responsible for the after-sale of accessories.

            • 25 years Linear Product Workmanship Warranty.
            • 10 years workmanship warranty.



                Downloads

                • SunGoldPower 6500W 48V Solar Charger Inverter User Manual - Download
                • SunGoldPower 6500W 48V Solar Charger Inverter UL1741 Certificate - Download
                • SunGoldPower 5.12kwh Powerwall LiFePO4 Battery SG48100M User Manual - Download
                • SunGoldPower 5.12kwh Powerwall LiFePO4 Battery SG48100M Data Sheet - Download
                • SunGoldPower 370W Solar Panel User Manual - Download

                ★★★★★
                ★★★★★
                ★★★★★
                ★★★★★

                Get in touch with us

                Text or Call : 888-556-5886 or simply start a live chat with our experts.

                Average response time is 39 seconds. We are open 7 days a Week; 8:00 AM - 8:00 PM EST

                support@epowerguys.com

                6 Reasons Why Clients Recommend Us:

                Collapsible content

                FREE SHIPPING

                On all orders over $500

                110% LOWEST PRICE GUARANTEE

                We will beat the competitors' price. With us, you buy knowing you get the best deal

                FREE RETURNS (FOR REAL!)

                For all eligible returns, we DO NOT charge any shipping fees or restocking fees.

                BIGGEST SELECTION AVAILABLE ONLINE

                We work with the best Manufacturers on the market. If competition has it out of stock, we will get it for you.

                REAL PEOPLE HERE TO HELP

                Our Customer Service team is here for you 7 days a week. You will always get customized help and assistance.

                SAFE & SECURE ORDERING

                Secure checkout on a website ensures that your personal and payment information is encrypted and protected during the transaction.

                • Live Chat Support

                  or call 888-556-5886

                • No Restocking Fees

                  $0 Restocking Fees

                • No Sales Tax

                  $0 Sales Tax!
