SunGoldPower SGM-10K20 Off-Grid Wall Mounted Solar Kit with 20.48kWh Powerwall Lithium Battery and 10000W Solar Inverter | 5550W Solar Panel | 48VDC | 120VAC

SunGoldPower SGM-10K20 Off-Grid Wall Mounted Solar Kit with 20.48kWh Powerwall Lithium Battery and 10000W Solar Inverter | 5550W Solar Panel | 48VDC | 120VAC

SGM-10K20

0 total reviews

Regular price
Price: $11,151.00
Regular price
$12,390.00
$11,151.00
Sale price
You Save: $1,239.00 (10%)

You can save additionalĀ 3% OFFĀ on top of all other discountsĀ by paying via wire transfer or Zelle. Details at checkout

Shipping & Returns

Shipping & Returns

Order Confirmation:

As soon as you place your order, you will receive a confirmation email. After that, we double-check if all items ordered are in stock and available for immediate shipment. If yourĀ orderĀ is available for the delivery within the advertised time frame, we will submit itĀ for shipment to the warehouse. If the expected delivery time exceeds the advertised time frame, we'll reach out to you via email and/or phone to confirm the order.

Order Shipment:

Within 1-2 business dayĀ from the time the item has been shipped, you will receiveĀ an email confirmation with tracking number. If youĀ would not receive tracking information withinĀ 6 business days of your order, feel free to follow up with us at support@epowerguys.com.

For LTL shipments, Free Shipping is Standard Curbside Delivery.

Curbside delivery is defined as delivery of the freight as close to the actual delivery address as possible. Please remember the size of the tractor trailer and certain safety precautions may prevent the freight carrier from delivering the freight at the actual curb or delivery address.

For addresses located on a cul-de-sac or dead-end street, curbside delivery is not guaranteed. In this case, the customer may need to meet the driver at the nearest intersection that the delivery truck can access.

In special cases, when the customer's address is in a high cost delivery area (e.g. remote suburbs or the center of a large city) an additional delivery fee may be required.Ā This mainly applies to ZIP codes 10000-15000, and may also apply to some addresses in the New England Area (Connecticut, Maine, Massachusetts, New Hampshire, Rhode Island, and Vermont), Washington and Oregon.

Note - itemsĀ heavier than 1,400 lbs may require delivery to a delivery dock or fork truck to unload them. Additional charges might apply.

To confirm the availability of Fee Shipping - Standard Curbside Delivery Option, please contact the ePowerGuysĀ Team before placing your order.

Estimated Time of Arrival:

Our standard shipping out time for orders from our warehouse to the customer is 4-12 business days and most orders are shipped within 3-6 business days of placing the order. Custom-made products are usuallyĀ shipped within 8-12Ā weeks. If the expectedĀ shipping date for your order would fall outside of the advertised 4-12 business day time frame, our customer service team will reach out to you to confirm if you are OK with that date.

Areas Covered:

All estimated delivery dates and shipping costs advertised on the website apply the Contiguous United States only. Please contact our customerĀ serviceĀ team to discuss the time and cost of shipping to HawaiiĀ or Alaska. We don't ship directly to Canada, but we can shipĀ your order to theĀ freight carrier of your choice.

    Damages:

    It is very important that you inspect the packaging of your items and the items themselves when they arrive and check if you received all boxes listed on the delivery receipt.

    If you notice any damage or shortage of packages, you must make note of it on the bill of lading, take pictures, and REFUSE DELIVERY.Ā YourĀ note should say "refused due to damage". You must also take photos of all sides of the box and send them to us within 24 hours.Ā If there are no damages visible before opening the box, youĀ must note "subject to further inspection, may contain concealed damage".

    If a shipment with a damaged item is accepted by the recipient (even if the bill of lading would include information about the damage), we will not be able to offer you a replacement item or a refund for your order.

    After receiving the shipment and before unpacking the item, be sure to take photos of the packaging from all sides, even if there are no visible signs of damage - this is very important if after unpacking it turns out that the item has concealed damage and we would have to file a complaint with the carrier / manufacturer of the item.

    If you notice any damage after receiving the delivery, do not throw the box away, and contact us with the photos. After we receive information from you about the refused delivery or concealed damage, we immediatelyĀ initiate a claim withĀ the shipping companyĀ or with the manufacturer. After the claim is fully processed, we ship all replacements atĀ absolutely no cost to you.

    Cancellations & Refunds:

    We can cancel your non-custom-made or non-made-to-order order at absolutely no cost to you before the shipping label or Bill of Lading has been created.

    Custom-made or made-to-order products are not eligible for refunds after the order and its conditions have been confirmed by the customer.

    Orders delivered outside the United States are not eligible for refunds.

    If your order arrived damaged, "Damages" section applies.

    To be eligible for a return, the item must be unused and in the same condition as you received it. It must also remain in the original packaging, and the packaging must be in a perfect condition. We do not charge restocking fees or return shipping fees. All eligible returns are 100% free.Ā

    Our refund policy lasts 45 days. If 45 days have gone by since you received your item, unfortunately, we canā€™t offer you a refund.

    Before approving the return procedure for your item, we must receive photos of the unpacked product (on each side) and the product packed in the original packaging (on each side) - based on the photos received, we can assess whether the item is subject to the return procedure.

    If you want to return the ordered product, it has to be arranged in the same manner it arrived to you. For products delivered via LTL freight, it must be packed in its original packaging on a pallet and made available for pickup by our carrier within 45 days from the date the product was delivered to you, at the exact same location to which it was delivered.

    For products not shipped as LTL freight (e.g. via FedEx Ground / UPS / USPS), the product you wish to return must be packed in the original packaging and made available to the courier for pickup or dropped off at the local branch of the shipping company within 45 days of where the product was delivered to you.

    Please contact us at support@epowerguys.com before returning an item to discuss shipping details.

    Refunds

    We will notify you once weā€™ve received and inspected your return, and let you know if the refund was approved or not. If approved, youā€™ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.

    If more than 15 business days have passed since weā€™ve approved your return, please contact us at support@epowerguys.com.

    Lowest Price Guarantee

    We work very hard to ensure that we offer the absolute best prices online. If you find another legitimate online store that offers a lowerĀ prices on an identical item we stock (including shipping, tax, etc.), we will beat the competitor's price by 10% of the difference! Please see below for complete details.

    Please fill out the form below to find out if you qualify for the discount. In most cases you will receive a response within 1 business day.

    To request yourĀ 110% Best Price Guarantee simply email us a link to the same product on our website, or on our competitors' website.

    Our 110% Price Guarantee has some limitations:

    • Promotions such as rebates and buy one, get one free offer are not eligible
    • The item must be in stock on the competitors' website
    • The competitor must be an online store, they may not have a retail location
    • The website can not be a discounter or auction website (i.e.; eBay, overstock, etc..)
    • The competitor must be an Authorized Retailer of the product in question, and must not be violating advertising price agreements with the manufacturer
    • The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax

    There may be brands excluded from that offer. PleaseĀ contact us for further information.

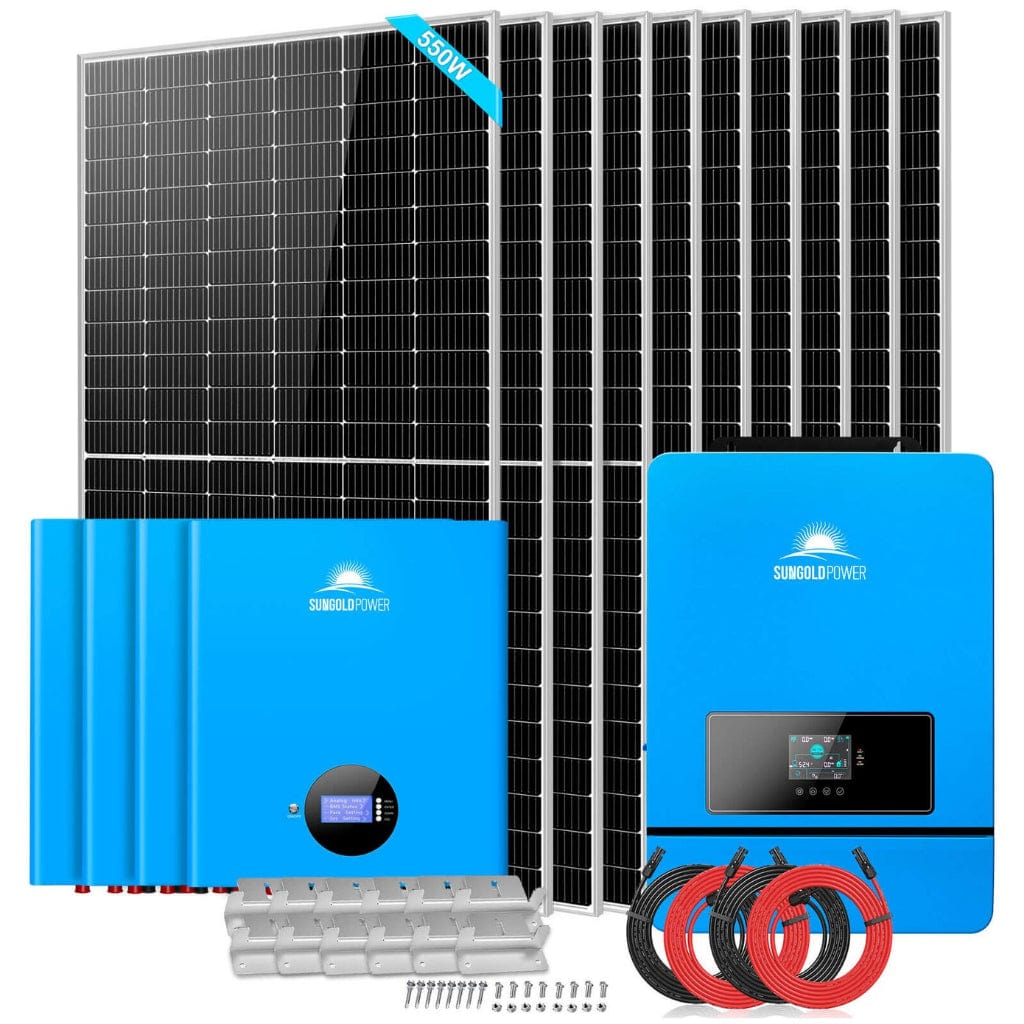

    This SGM-10K20 Off-Grid Wall Mounted Solar Kit includes 10 X 550W solar panels, a 20.48KWH Powerwall battery, a 10KW solar inverter, and a set of solar cables and brackets.Ā The Solar Array will produce around 22KWH per day based on 4 hours of sun. This size of system generally works great for cabins, shops, and houses. You can add more batteries and solar panels according to your requirements. Letā€™s enjoy off-grid living and the adventure with the Solar Energy Kit!

    SunGoldPower offers 6 models of Wall Mounted Solar Panel Kit:


    Ā

    CA Residents: See Prop 65 Warning

    Features

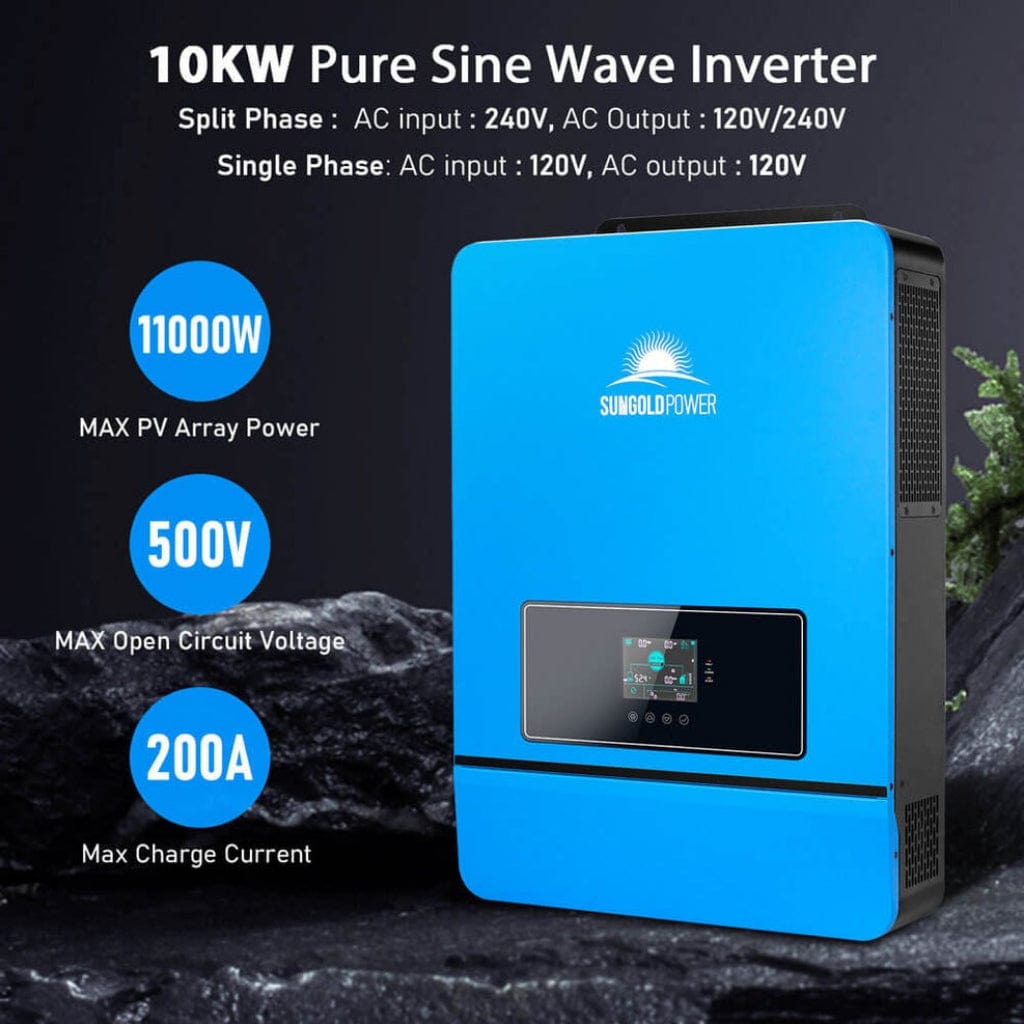

    SunGoldPower 10KW 48V Hybrid Split Phase Pure Sine Wave Solar Inverter

    • Pure Sine Wave Output: Ensures compatibility with sensitive electronics and appliances, providing a stable and clean power supply.
    • IP20 Rated: Offers protection against dust and water, making it suitable for outdoor installations in various weather conditions.
    • ROHS Certified: Complies with the Restriction of Hazardous Substances Directive, ensuring the product is safe and environmentally friendly.
    • 2-Year Warranty: Provides peace of mind with a warranty period covering the manufacturer's quality assurance.
    • Hybrid Charging Modes: Offers four charging modes (Hybrid Charging, Utility Priority Charging, Solar Priority Charging, Only Solar Charging) to meet different energy needs and preferences.
    • Time-slot Charging/Discharging Function: Allows users to optimize energy usage by setting specific charging and discharging periods, potentially saving on utility costs.
    • Battery Compatibility: Supports a wide range of battery types, including 48V AGM/Sealed, Gel, Flooded, and Lithium batteries, with a User Mode for compatibility with all battery types. It also supports battery-free operation, activating the lithium battery when needed.
    • Communication with SunGoldPower Batteries: Enables Can, USB, and RS485 communication with SunGoldPower batteries, facilitating seamless integration and management of solar energy systems.
    • Built-in Wi-Fi Module: Allows for remote monitoring and control of the inverter's operating status and parameters via a mobile app, enhancing convenience and user experience.
    • UL1741 Listed by ETL: Indicates compliance with international safety standards, ensuring the product meets high-quality and safety requirements.

    Ā

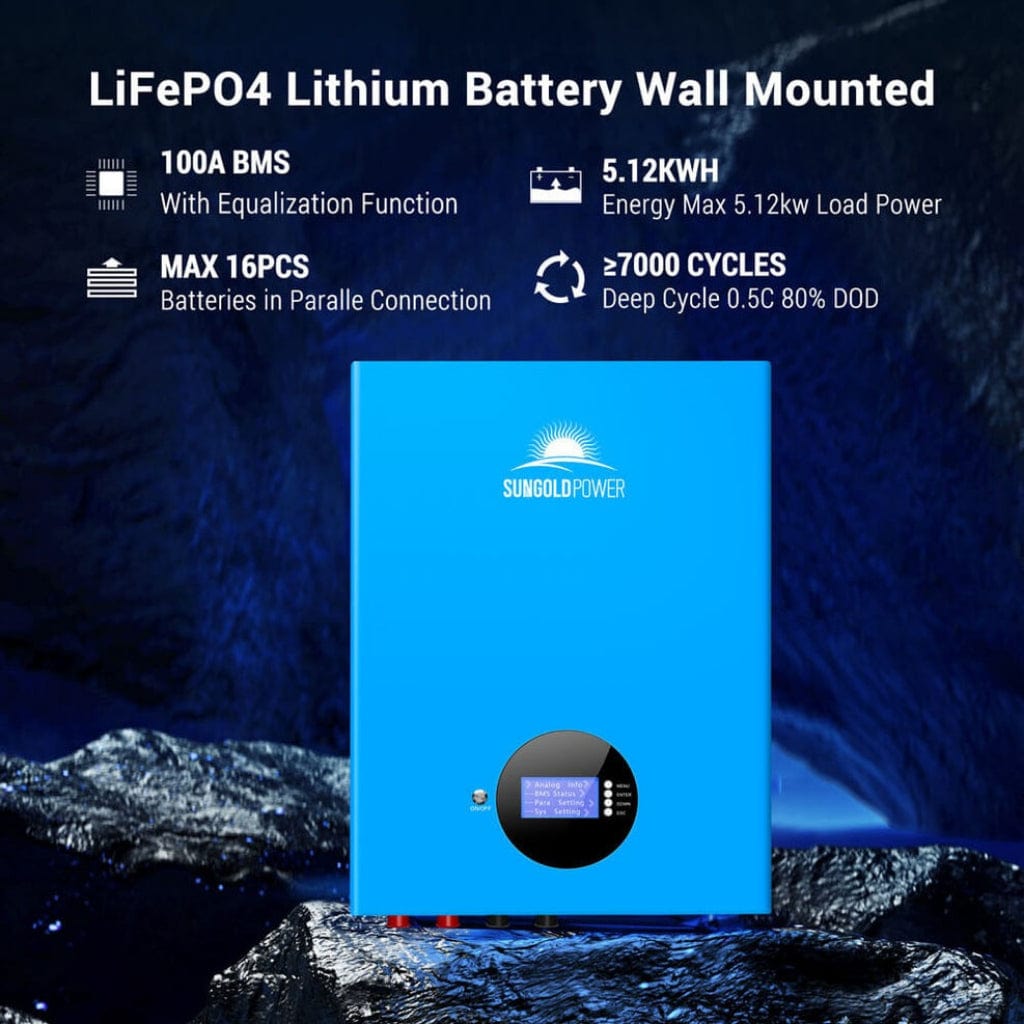

    SunGoldPower 5.12kwh Powerwall Lithium Battery

    • Capacity: It has a storage capacity of 5.12 kWh, making it a high-capacity energy storage solution suitable for both home and commercial use.
    • Battery Type: The battery uses LIFEPO4 Lithium technology, known for its long lifespan and high energy density.
    • Battery Management System (BMS): It includes an advanced BMS for protection against overcharging, overheating, and other risks, ensuring a long lifespan of over 7000 deep cycles.
    • Modular Structure: The battery has a modular design, allowing for system expansion up to 81.9kWh, catering to growing energy needs.
    • Compatibility: It is compatible with a wide range of inverters, thanks to its versatile communication protocols, making it a seamless addition to most energy systems.
    • LCD Display: Features an LCD display for easy monitoring and management of the battery's status.
    • IP65 Rating: It has an IP65 waterproof rating, making it suitable for use in environments with light rain and splash protection.
    • Anti-Theft Sensor: Includes a sensor c-sensor-anti-theft function for added security.

    Ā

    SunGoldPower 550W Monocrystalline PERC Solar Panel

    • High Efficiency: It features highly efficient silicon solar cells, ensuring clean and quiet energy production.
    • Durability: The panel comes with an IP68-rated junction box, making it suitable for marine applications, and an aluminum frame that is corrosion-resistant, ideal for extended outdoor use.
    • Performance: The solar panel is capable of generating up to 550W of power, with a maximum power current of 13.11A and a maximum power voltage of 41.96V. It also has a short circuit current of 14.01A and an open circuit voltage of 49.9V.
    • Design: It is designed with a corrosion-resistant anodized aluminum frame and a twin wall frame, ensuring durability and longevity. The panel is also easy to install with pre-drilled holes.
    • Warranty: The panel comes with a comprehensive warranty, including a 5-year 95% output warranty, a 10-year 90% output warranty, and a 25-year 80% output warranty, along with a 10-year material and workmanship warranty.
    • Specifications: The panel has a production tolerance of Ā±3%, a maximum system voltage of 1500V, and wind resistance of 2400Pa. It uses 12 AWG output cables and has 144 cells (6x24), with 60 cells in series. The cell type is PERC Monocrystalline, measuring 7.2x3.6 inches.
    • Dimensions and Weight: The product dimensions are 89.844.91.4 inches, with a weight of 56.9lbs. The package dimensions are 92.147.23.5 inches, and the package weight is 128.7lbs for two panels.

    Weight & Dimensions

    SunGoldPower 5.12kwh Powerwall Lithium Battery


    Weight (lbs) 108.5
    Dimensions
    Length
    Width Height
    23" 16.5" 6"
    ***This is the weight and dimensions of each battery***


    SunGoldPower 10KW 48V Hybrid Split Phase Pure Sine Wave Solar Inverter

    Weight (lbs) 54
    Dimensions
    Length
    Width Height
    17.9" 26" 5.1"
    ***This is the weight and dimensions of each solar charger***

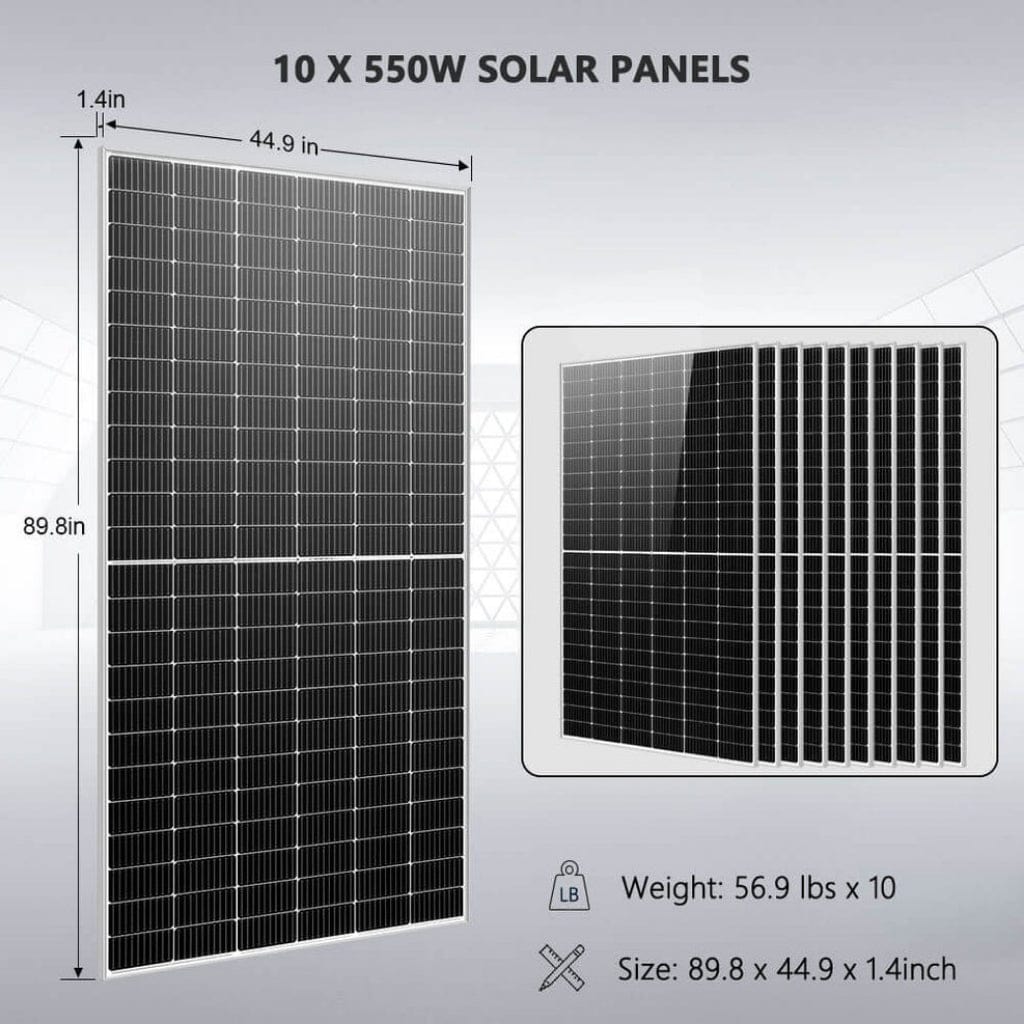

    SunGoldPower 550W Monocrystalline PERC Solar Panel


    Weight (lbs) 56.9
    Dimensions
    Length
    Width Height
    89.8" 44.9" 1.4"

    ***This is the weight and dimensions of each solar panel***

    Specifications

    SunGoldPower 10KW 48V Hybrid Split Phase Pure Sine Wave Solar Inverter

    Model Type LFPV10K24V240VSP
    Continuous Output Power 10.0KW
    Surge Rating(20Secs) 30.0KW
    Output Waveform Pure Sine wave/Same as input(Bypass Mod
    Nominal Efficiency >88%(Peak)
    Line Mode Efficiency >95%
    Power Factor 0.9-1.0
    Nominal Output Voltage rms 100-110-120Vac / 220-230-240
    Output Voltage Regulation Ā±10% RMS
    Output Frequency 50Hz Ā± 0.3Hz/60Hz Ā±
    Short Circuit Protection Yes( 1sec after fault )
    Typical transfer Time 10ms(Max
    THD < 10%
    Nominal Input Voltage 48.0Vdc
    Minimum Start Voltage *2 for 24Vdc, *4 for 48V
    Low Battery Alarm *2 for 24Vdc, *4 for 48V
    Low Battery Trip *2 for 24Vdc, *4 for 48V
    High Voltage Alarm *2 for 24Vdc, *4 for 48V
    Low Battery voltage recove *2 for 24Vdc, *4 for 48V
    Idle Consumption-Search Mode < 25 W when Power Saver On.(Ref
    Charger Breaker Rating 60A
    Max Charge Power Rate 1/3 Rating Power (Refer to Table 2.5.3
    Battery Initial Voltage for Start *2 for 24Vdc, *4 for 48Vd
    Over Charge Protection S.D Yes(Refer to the table )
    Variances in Charging Voltage & S.D Voltage Base on the Battery
    Temperature.
    Input Voltage Waveform Sine wave (Grid or Generator)
    Nominal Voltage 100-110-120Vac / 220-230-240Vac
    Max Input AC Voltage 150VAC For 120Vac LV Modeļ¼›300VAC For 230Vac HV Modeļ¼›
    Nominal Input Frequency 50Hz or 60Hz
    Low Freq Trip 47Ā±0.3Hz for 50Hz, 57Ā±0.3Hz for 60Hz
    High Freq Trip 55Ā±0.3Hz for 50Hz, 65Ā±0.3Hz for 60Hz
    Overload protection(SMPS load) Circuit Breaker
    Output Short circuit protect Circuit Breaker
    Bypass breaker rating 40A
    Transfer switch rating 80Amp for UL
    Bypass without battery connected Yes (Option
    Max bypass current 80Amp
    Mounting Wall Mount
    Color Blue



    SunGoldPower 5.12kwh Powerwall Lithium Battery

    Model Type SG48100M
    Rated capacity 100Ah
    Nominal voltage 51.2V
    Recommended charging voltage 54.5V
    Charging Limited Voltage 42V
    SOC working range 0~100%
    Standard discharge current 50A
    Maximum continuous discharge current 100A
    Standard charging current 50A
    Maximumcontinuous-charge current 100A
    Maximum cut-off voltage for charging. 57.6V
    Charge cutoff.current 5A
    Disharge cut-off voltage 43.2V
    PACK.cyele life ā‰„7000
    Thermal management method Natural heat dissipation
    IP protection class IP65 battery box
    Flammability rating plastic parts UL94 V-0
    Total system mass Around 43KG
    Battery system shell material 299U Q235A
    Shipping SOC SOC45-55%
    Design life 15 Year
    Parallel function Supports up to 16 batteries in parallel
    Anti-theft function Sensor c-sensor-anti-theft function
    Display function English smart display
    Charging current limit function Current limit 20
    Communication mode RS232/RS485/CAN
    Communication protocol Support multiple protocols
    Storage ambient temperature 14Ā°F~113Ā°F
    Working temperature Battery charging:32Ā°F~113Ā°F, Battery discharging:-4Ā°F~140Ā°F
    Relative humidity of working environment ā‰¤95


    SunGoldPower 550W Monocrystalline PERC Solar Panel

    Model Type SG-550WM
    Peak Power (Pmax) 550W
    Production tolerance Ā±3%
    Maximum Power Current (Imp) 13.11A
    Maximum Power Voltage (Vmp) 41.96V
    Short Circuit Current (Isc) 14.01A
    Open Circuit Voltage (Voc) 49.9V
    Maximum System Voltage 1500V
    Wind Resistance 2400Pa
    Output Cables 12 AWG (1ft per cable)
    Number of Cells 144(6x 24),60 cells in series
    Cell Type PERC Monocrystalline (7.2x 3.6 in)
    Certifications CE TUV

    What's Included?

    INCLUDED
    1 X 10000 Watt Split Phase Solar InverterĀ
    • 10000W
    • 500VDCĀ
    • 120/240V AC Output
    • Pure Sine Wave

    4 X 100AH 51.2V PowerWall Lithium Battery
    • 51.2V
    • Made of Lithium Iron Phosphate
    • 100Ah
    • 5.12kWh

    10 X 550 Watt Monocrystalline Solar Panels
    • 550WĀ
    • Monocrystalline
    • 144(6X24), 60 cells in series
    • CE, TUV

    4 X Sets of Mounting Z-Brackets

    • Lightweight Aluminum Corrosion, for RVs, Trailers, Boats, Yachts, Wall and Other Off Gird Roof

    1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input

    • 10 AWG Solar Extension Cable 50Ft

      Warranty

      WARRANTY & RETURN

      We hope you have enjoyed your online shopping experience with Sungoldpower. Please read below for more information about our warranty and return policies.


      WARRANTY & RETURN POLICY

      The warranty period for is 1~25 years for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

      Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.


      LIMITED TO ORIGINAL CONSUMER BUYER

      The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.


      EXCLUSIONS

      Sungoldpower's warranty does not apply to: Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature. Attempted repair by anyone other than an authorized facility. If any modified products received will be returned to you at your expense. Ā



      REPLACEMENTS

      Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product. If the products appear faulty because of inappropriate operation, we can only help fix the issue and donā€™t accept returns or replacements. The customer needs to pay all the fees for accessories and shipping

      If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)


      RETURN

      Sungoldpower offers a 30-day money back guarantee for goods purchased directly from Sungoldpower.com.We are confident that you will love your new Sungoldpower product. However. If for any reason you are not fully satisfied with your purchase, you may return your products within 30 days as long as they are new, undamaged, and unmodified. We cannot guarantee that your item will be accepted for a refund or exchange if it does not meet these requirements. If you are unsatisfied for any reason, simply let us know within 30 days. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. Once we receive the product and confirm the validity, we will refund the full purchase price. Return requests outside of 30 days require special authorization.


      PLEASE BE PREPARED FOR THE FOLLOWING INFORMATION:

      Order number

      Video or photo of the faulty product (if applicable)

      The item with the original packaging.


      REFUNDS (IF APPLICABLE)

      Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

      If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

      Ā Ā

      USED PRODUCTS

      The warranty period is one year. If the product appears a problem within 30 days naturally, Sungoldpower will cover all the shipping fees and repair fees for back and forth. If the product appears a problem within 1 year naturally, Sungoldpower will cover the repair fee and the customer needs to cover the shipping fee for back and forth.Sungoldpower shall not be responsible for the after-sale of products purchased through sales channels other than those designated by Sungoldpower. Customers can purchase accessories from Sungoldpower but Sungoldpower is not responsible for the after-sale of accessories.

      • 25 years Linear Product Workmanship Warranty.
      • 10 years workmanship warranty.

        Ā

          Downloads

          • SunGoldPower 10KW 48V Hybrid Split Phase Pure Sine Wave Solar InverterĀ User Manual - Download
          • SunGoldPower 5.12kwh Powerwall Lithium Battery SG48100M User Manual - Download
          • SunGoldPower 5.12kwh Powerwall Lithium Battery SG48100M Data Sheet - Download
          • SunGoldPower 550W Solar Panel User Manual - Download

          Get in touch with us

          Text or Call :Ā 888-556-5886Ā or simply start a live chat with our experts.

          Average response time is 39 seconds. We are open 7 days a Week; 8:00 AM - 8:00 PM EST

          support@epowerguys.com

          6 Reasons Why Clients Recommend Us:

          Collapsible content

          FREE SHIPPING

          On all orders over $200

          110% LOWEST PRICE GUARANTEE

          We will beat the competitors' price. With us, you buy knowing you get the best deal

          FREE RETURNS (FOR REAL!)

          For all eligible returns, we DO NOT charge any shipping fees or restocking fees.

          BIGGEST SELECTION AVAILABLE ONLINE

          We work with the best Manufacturers on the market. If competition has it out of stock, we will get it for you.

          REAL PEOPLE HERE TO HELP

          Our Customer Service team is here for you 7 days a week. You will always get customized help and assistance.

          SAFE & SECURE ORDERING

          Secure checkout on a website ensures that your personal and payment information is encrypted and protected during the transaction.

          • Live Chat Support

            or call 888-556-5886

          • No Restocking Fees

            $0 Restocking Fees

          • No Sales Tax

            $0 Sales Tax!
