SunGoldPower

SunGoldPower SGM-5K5E Off-Grid Wall Mounted Solar Kit with 5.12kWh Powerwall Lithium Battery and 5000W Solar Inverter | 1200W Solar Panel | 48VDC | 120VAC

SunGoldPower SGM-5K5E Off-Grid Wall Mounted Solar Kit with 5.12kWh Powerwall Lithium Battery and 5000W Solar Inverter | 1200W Solar Panel | 48VDC | 120VAC

SGM-5K5E

1 total reviews

Regular price
Price: $3,624.25
Regular price
$3,815.00
$3,624.25
Sale price
You Save: $190.75 (5%)

You can save additionalĀ 3% OFFĀ on top of all other discountsĀ by paying via wire transfer or Zelle. Details at checkout

Shipping & Returns

Shipping & Returns

Order Confirmation:

As soon as you place your order, you will receive a confirmation email. After that, we double-check if all items ordered are in stock and available for immediate shipment. If yourĀ orderĀ is available for the delivery within the advertised time frame, we will submit itĀ for shipment to the warehouse. If the expected delivery time exceeds the advertised time frame, we'll reach out to you via email and/or phone to confirm the order.

Order Shipment:

Within 1-2 business dayĀ from the time the item has been shipped, you will receiveĀ an email confirmation with tracking number. If youĀ would not receive tracking information withinĀ 6 business days of your order, feel free to follow up with us at support@epowerguys.com.

For LTL shipments, Free Shipping is Standard Curbside Delivery.

Curbside delivery is defined as delivery of the freight as close to the actual delivery address as possible. Please remember the size of the tractor trailer and certain safety precautions may prevent the freight carrier from delivering the freight at the actual curb or delivery address.

For addresses located on a cul-de-sac or dead-end street, curbside delivery is not guaranteed. In this case, the customer may need to meet the driver at the nearest intersection that the delivery truck can access.

In special cases, when the customer's address is in a high cost delivery area (e.g. remote suburbs or the center of a large city) an additional delivery fee may be required.Ā This mainly applies to ZIP codes 10000-15000, and may also apply to some addresses in the New England Area (Connecticut, Maine, Massachusetts, New Hampshire, Rhode Island, and Vermont), Washington and Oregon.

Note - itemsĀ heavier than 1,400 lbs may require delivery to a delivery dock or fork truck to unload them. Additional charges might apply.

To confirm the availability of Fee Shipping - Standard Curbside Delivery Option, please contact the ePowerGuysĀ Team before placing your order.

Estimated Time of Arrival:

Our standard shipping out time for orders from our warehouse to the customer is 4-12 business days and most orders are shipped within 3-6 business days of placing the order. Custom-made products are usuallyĀ shipped within 8-12Ā weeks. If the expectedĀ shipping date for your order would fall outside of the advertised 4-12 business day time frame, our customer service team will reach out to you to confirm if you are OK with that date.

Areas Covered:

All estimated delivery dates and shipping costs advertised on the website apply the Contiguous United States only. Please contact our customerĀ serviceĀ team to discuss the time and cost of shipping to HawaiiĀ or Alaska. We don't ship directly to Canada, but we can shipĀ your order to theĀ freight carrier of your choice.

    Damages:

    It is very important that you inspect the packaging of your items and the items themselves when they arrive and check if you received all boxes listed on the delivery receipt.

    If you notice any damage or shortage of packages, you must make note of it on the bill of lading, take pictures, and REFUSE DELIVERY.Ā YourĀ note should say "refused due to damage". You must also take photos of all sides of the box and send them to us within 24 hours.Ā If there are no damages visible before opening the box, youĀ must note "subject to further inspection, may contain concealed damage".

    If a shipment with a damaged item is accepted by the recipient (even if the bill of lading would include information about the damage), we will not be able to offer you a replacement item or a refund for your order.

    After receiving the shipment and before unpacking the item, be sure to take photos of the packaging from all sides, even if there are no visible signs of damage - this is very important if after unpacking it turns out that the item has concealed damage and we would have to file a complaint with the carrier / manufacturer of the item.

    If you notice any damage after receiving the delivery, do not throw the box away, and contact us with the photos. After we receive information from you about the refused delivery or concealed damage, we immediatelyĀ initiate a claim withĀ the shipping companyĀ or with the manufacturer. After the claim is fully processed, we ship all replacements atĀ absolutely no cost to you.

    Cancellations & Refunds:

    We can cancel your non-custom-made or non-made-to-order order at absolutely no cost to you before the shipping label or Bill of Lading has been created.

    Custom-made or made-to-order products are not eligible for refunds after the order and its conditions have been confirmed by the customer.

    Orders delivered outside the United States are not eligible for refunds.

    If your order arrived damaged, "Damages" section applies.

    To be eligible for a return, the item must be unused and in the same condition as you received it. It must also remain in the original packaging, and the packaging must be in a perfect condition. We do not charge restocking fees or return shipping fees. All eligible returns are 100% free.Ā

    Our refund policy lasts 45 days. If 45 days have gone by since you received your item, unfortunately, we canā€™t offer you a refund.

    Before approving the return procedure for your item, we must receive photos of the unpacked product (on each side) and the product packed in the original packaging (on each side) - based on the photos received, we can assess whether the item is subject to the return procedure.

    If you want to return the ordered product, it has to be arranged in the same manner it arrived to you. For products delivered via LTL freight, it must be packed in its original packaging on a pallet and made available for pickup by our carrier within 45 days from the date the product was delivered to you, at the exact same location to which it was delivered.

    For products not shipped as LTL freight (e.g. via FedEx Ground / UPS / USPS), the product you wish to return must be packed in the original packaging and made available to the courier for pickup or dropped off at the local branch of the shipping company within 45 days of where the product was delivered to you.

    Please contact us at support@epowerguys.com before returning an item to discuss shipping details.

    Refunds

    We will notify you once weā€™ve received and inspected your return, and let you know if the refund was approved or not. If approved, youā€™ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.

    If more than 15 business days have passed since weā€™ve approved your return, please contact us at support@epowerguys.com.

    Lowest Price Guarantee

    We work very hard to ensure that we offer the absolute best prices online. If you find another legitimate online store that offers a lowerĀ prices on an identical item we stock (including shipping, tax, etc.), we will beat the competitor's price by 10% of the difference! Please see below for complete details.

    Please fill out the form below to find out if you qualify for the discount. In most cases you will receive a response within 1 business day.

    To request yourĀ 110% Best Price Guarantee simply email us a link to the same product on our website, or on our competitors' website.

    Our 110% Price Guarantee has some limitations:

    • Promotions such as rebates and buy one, get one free offer are not eligible
    • The item must be in stock on the competitors' website
    • The competitor must be an online store, they may not have a retail location
    • The website can not be a discounter or auction website (i.e.; eBay, overstock, etc..)
    • The competitor must be an Authorized Retailer of the product in question, and must not be violating advertising price agreements with the manufacturer
    • The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax

    There may be brands excluded from that offer. PleaseĀ contact us for further information.

    SGM-5K5E Solar Kits come with mostly that you need to set up off-grid solar system,it includes the 5000W inverter allowing you to connect Max 5000W of solar panel, 6 X 200W solar panel, 5.12KWH server rack batteries, a set of solar cables and brackets.The Solar Array will produce around 5.12KWH per day based on 4 hours sun. the system is ready for expansion, up to 6 identical inverters can be paralleled in single-phase (120VAC) or split-phase (240VAC) or three-sphase (208V). You can add more batteries and solar panel according to your requirment. with Wi-Fi monitor shows the performance and energy data of your solar system through an app. Letā€™s Enjoy off grid living and the adventure with Solar Energy Kit !

    SunGoldPower offers 6 models of Wall Mounted Solar Panel Kit:


    Ā

    CA Residents: See Prop 65 Warning

    Features

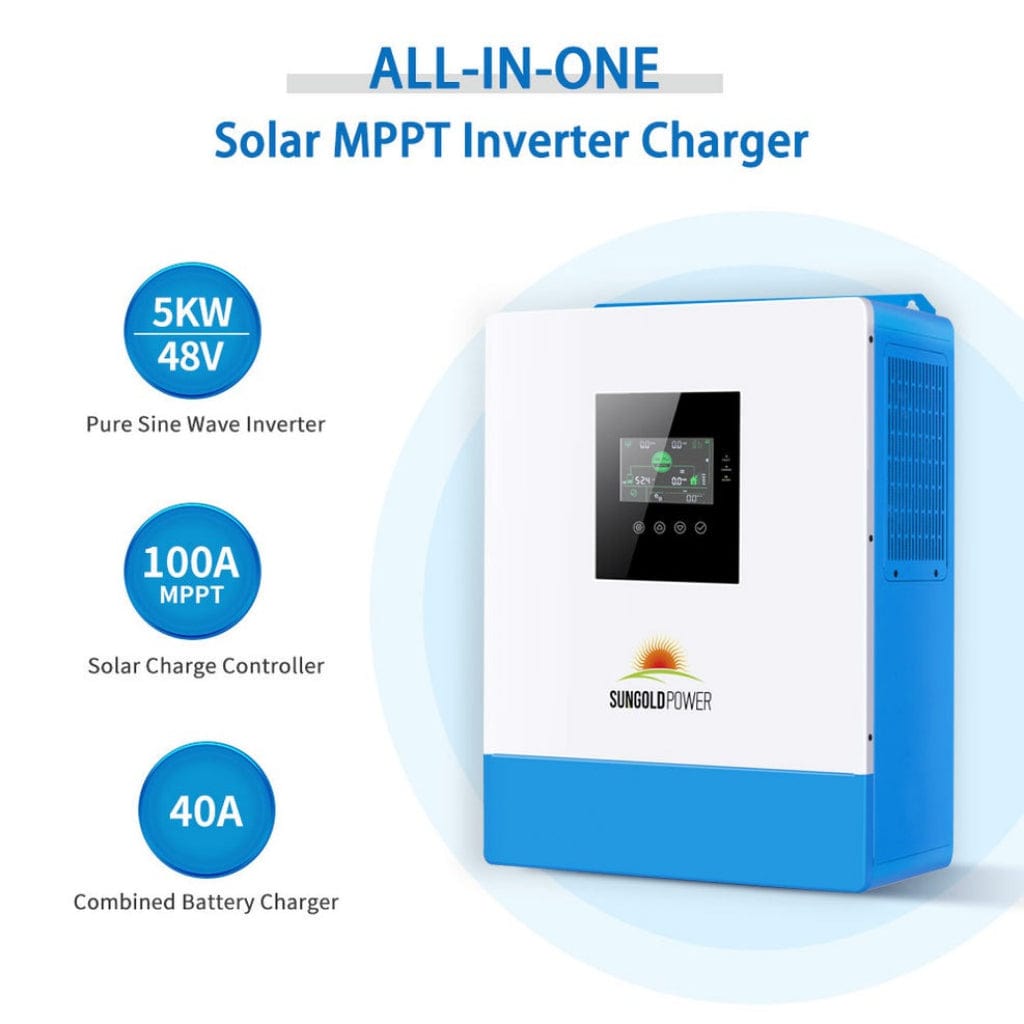

    SunGoldPower 5000W 48V Solar Charger Inverter

    • 5000W Power Capacity: It offers a substantial power output, making it suitable for running large appliances and systems.
    • 48V Pure Sine Wave: The inverter provides a clean, pure sine wave output, ensuring compatibility with sensitive electronics and appliances.
    • CE & EN61000 Certified: The product complies with European safety and electromagnetic compatibility standards, ensuring reliability and safety.
    • Home Backup Inverter: Ideal for use as a backup power supply for homes, providing uninterrupted power during outages or emergencies.
    • Built-in UPS Function: Offers uninterrupted power to run household electric devices, enhancing the reliability of your power supply.
    • Large Surge Capacity: Features a 300% surge capacity for 20 seconds, providing protection against power spikes.
    • AC Auto-Transfer Switch: Automatically switches loads to AC power when shore power or generator input is available, and to DC battery source during power cuts.
    • Battery Charging Capability: Includes a battery charger, allowing for simultaneous power supply and battery charging.
    • LCD Display Monitoring: Offers easy monitoring of the inverter's performance and battery status.
    • Low Idle Consumption: Designed for energy efficiency, with minimal power consumption when idle.
    • Battery Temperature Sensor: Increases battery life by monitoring and optimizing charging conditions.
    • Remote Control: Provides an easy on/off switch for the inverters, offering convenience and control.

    Ā

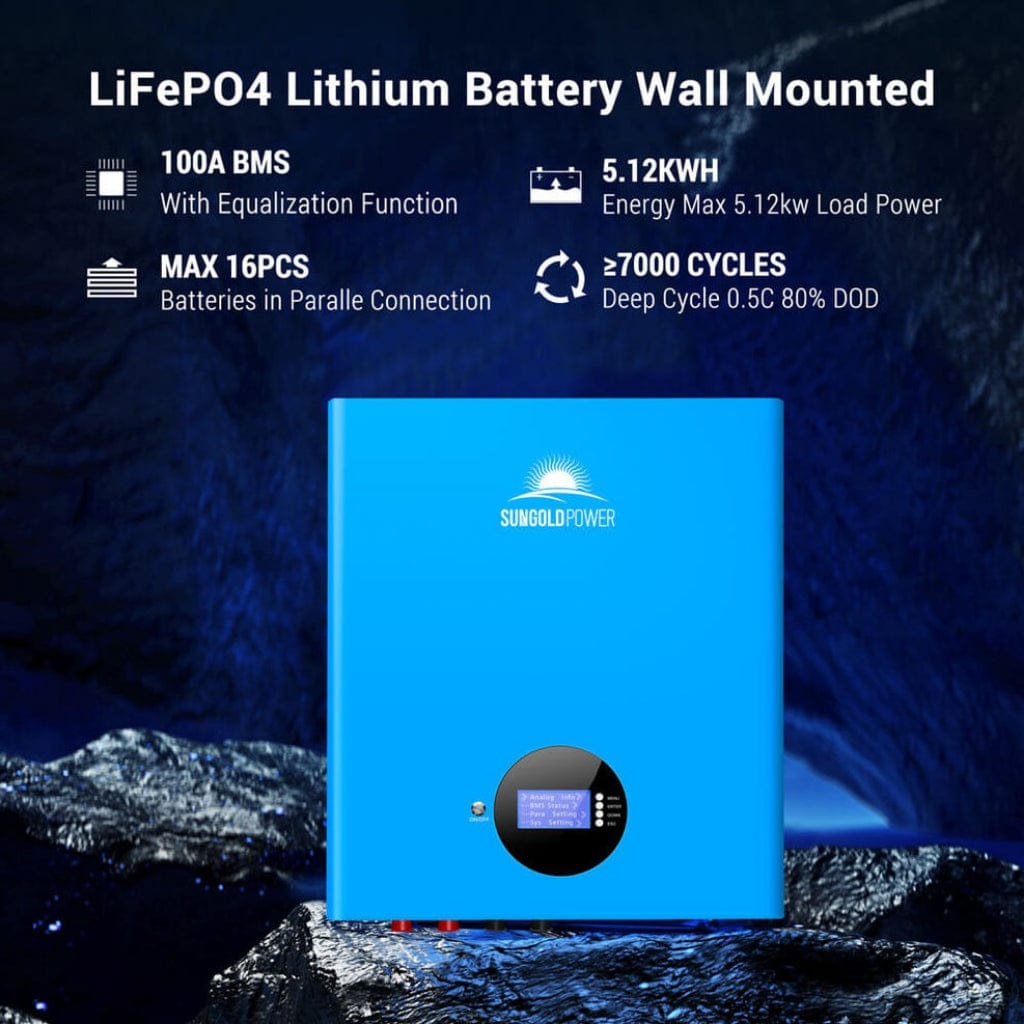

    SunGoldPower 5.12kWh Powerwall Lithium Battery SG48100M

    • Capacity: It has a storage capacity of 5.12 kWh, making it a high-capacity energy storage solution suitable for both home and commercial use.
    • Battery Type: The battery uses LIFEPO4 Lithium technology, known for its long lifespan and high energy density.
    • Battery Management System (BMS): It includes an advanced BMS for protection against overcharging, overheating, and other risks, ensuring a long lifespan of over 7000 deep cycles.
    • Modular Structure: The battery has a modular design, allowing for system expansion up to 81.9kWh, catering to growing energy needs.
    • Compatibility: It is compatible with a wide range of inverters, thanks to its versatile communication protocols, making it a seamless addition to most energy systems.
    • LCD Display: Features an LCD display for easy monitoring and management of the battery's status.
    • IP65 Rating: It has an IP65 waterproof rating, making it suitable for use in environments with light rain and splash protection.
    • Anti-Theft Sensor: Includes a sensor c-sensor-anti-theft function for added security.

    Ā

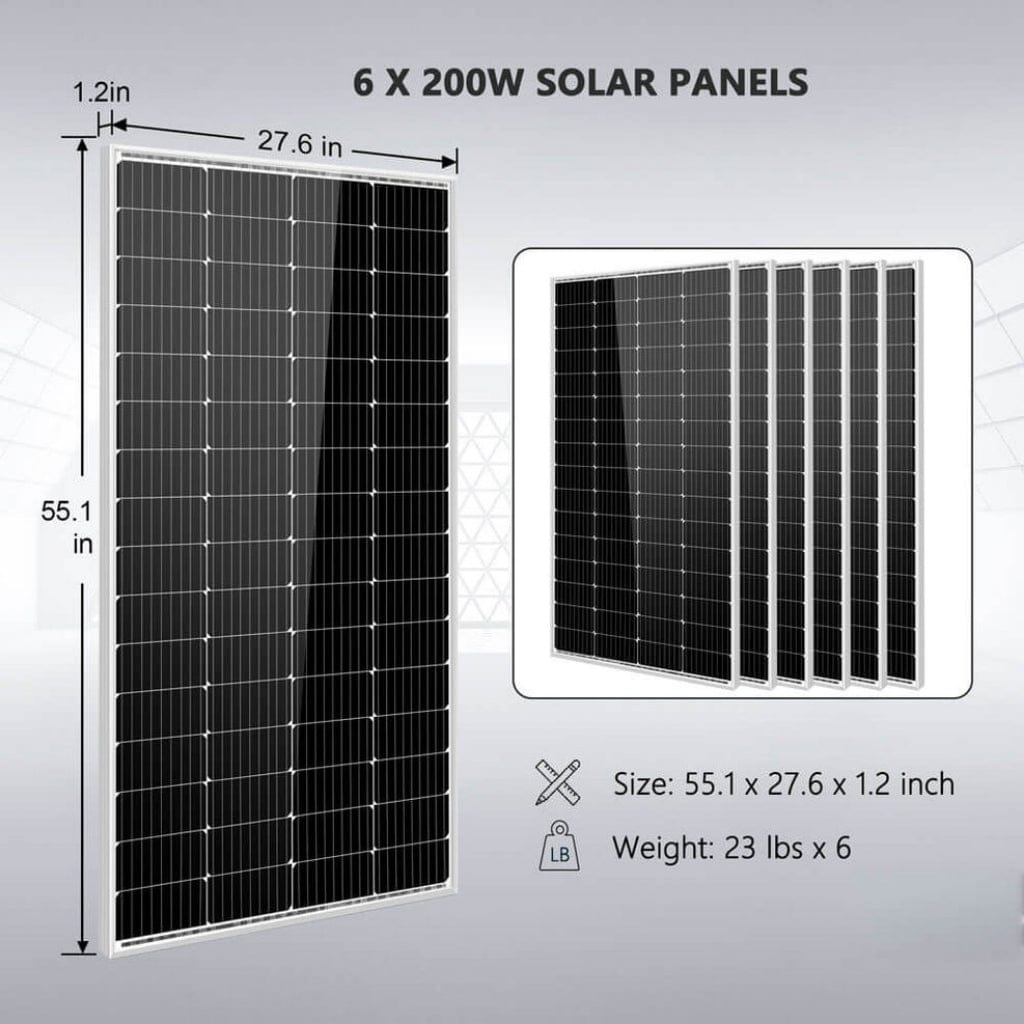

    SunGoldPower 200 Watt Monocrystalline Solar Panel

    • Peak Power: 200W, ensuring sufficient power output for a wide range of applications.
    • Production Tolerance: 土3%, indicating a high level of quality control and consistency in performance.
    • Maximum Power Current: 5.21A, providing ample current for most electrical needs.
    • Maximum Power Voltage: 38.42V, suitable for a wide range of inverters and systems.
    • Short Circuit Current: 5.52A, offering protection against short circuits.
    • Open Circuit Voltage: 46.1V, ensuring optimal performance under sunlight.
    • Maximum System Voltage: 1000V, compatible with most solar inverters.
    • Wind Resistance: 2400Pa, designed to withstand windy conditions.
    • Product Weight: 21.7lbs, making it manageable for installation.
    • Product Dimension: 55.1 in x 27.6 in x 1.2 in, providing a compact and efficient design.
    • Package Weight: 27.8lbs, including the necessary installation materials.
    • Package Dimension: 57.9 in x 30.3 in x 1.6 in, ensuring easy transportation and installation.
    • IP65 & IP67 Rating: The panel is rated IP65, making it suitable for marine applications, and IP67, offering protection against dust and water jets.
    • Warranty: Comes with a 25-year output warranty, ensuring long-term reliability and performance.
    • Design and Construction: Features a corrosion-resistant aluminum frame with a twin wall construction, enhancing durability and longevity. The panel is designed for easy installation with pre-drilled holes and is suitable for various outdoor applications including caravans, RVs, boats, and more.
    • High Conversion Efficiency: Made with high conversion efficiency cells, ensuring excellent performance even in low-light environments.

    Weight & Dimensions

    SunGoldPower 5000W 48V Solar Charger Inverter

    Weight (lbs) 29
    Dimensions
    Length
    Width Height
    18" 14" 5.2"


    SunGoldPower 5.12kwh Powerwall Lithium Battery

    Weight (lbs) 108.5
    Dimensions
    Length
    Width Height
    23" 16.5" 6"


    SunGoldPower 200 Watt Monocrystalline Solar Panel

    Weight (lbs) 21.7
    Dimensions
    Length
    Width Height
    55.1" 27.6" 1.2"
    ***This is the weight and dimensions of each solar panel***


    Specifications

    SunGoldPower 5000W 48V Solar Charger Inverter

    Model Type SPH5048P
    Permitted parallel numberĀ  1~6
    Rated input voltageĀ  110/120Vac
    Input voltage rangeĀ  (90Vac~140Vac)Ā±2%
    Frequency 50Hz/ 60Hz (Auto detection
    Frequency Range 47Ā±0.3Hz ~ 55Ā±0.3Hz (50Hz);
    57Ā±0.3Hz ~ 65Ā±0.3Hz (60Hz);
    Overload/short circuit protection Circuit breaker
    EfficiencyĀ  >95%
    Conversion time (bypass and inverter) 10ms (typical)
    AC reverse protection Available
    Maximum bypass overload current 63A
    Output voltage waveform Pure sine wave
    Rated output power (VA) 5000
    Rated output power (W) 5000
    Power factor 1
    Rated output voltage (Vac) 120Vac (100/105/110Vac Settable)
    Output voltage error Ā±5%
    Output frequency range (Hz) 50Hz Ā± 0.3Hz
    60Hz Ā± 0.3Hz
    Maximum Efficiency >92%
    Overload protection (102% < load <110%) Ā±10%: report error and turn off the output after 5
    minutes;
    (110% < load < 125%) Ā± 10%: report error and turn off the output after 10
    seconds;
    (Load >125% Ā±10%): report error and turn off the output after 5 seconds;
    Peak power 10000VA
    Loaded motor capability 4HP
    Rated battery input voltage 48V (Minimum starting voltage 44V)
    Battery voltage range Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage
    recovery... settable on LCD screen)
    Power saving mode selfconsumption Loadā‰¤50W
    Rated Output Power (W) 5000W
    Max. apparent power (VA) 5000VA
    Max. output current (A) 41.7A
    THDI ļ¼œ3%
    Rated voltage(V) 120Vac
    Frequency 50Hz/60Hz
    Battery type Lead acid or lithium battery
    Maximum charge current(can be set) 0-40A
    Charge current error Ā± 3Adc
    Charge voltage range 40 ā€“58Vdc
    Short circuit protection Circuit breaker and blown fuse
    Circuit breaker specifications 63A
    Overcharge protection Alarm and turn off charging after 1 minute
    Maximum PV open circuit voltage 500Vdc
    PV operating voltage range 120-500Vdc
    MPPT voltage range 120-450Vdc
    Battery voltage range 40-60Vdc
    Maximum PV input power 5500W
    Maximum PV input current 22A
    PV charging current range (can be set) 100A
    Charging short circuit protection Blown fuse
    Wiring protection Reverse polarity protection
    Max charger current(can be set) 100A
    Certification CE(IEC62109-1)
    EMC certification level EN61000
    Operating temperature range -10Ā°C to 55Ā°C
    Storage temperature range -25Ā°C ~ 60Ā°C
    Humidity range 5% to 95% (Conformal coating protection)
    Noise ā‰¤60dB
    Heat dissipation Forced air cooling, variable speed of fan
    Communication interface USB/RS485(WiFi/GPRS)/Dry contact control

    Ā

    SunGoldPower 5.12kwh Powerwall Lithium Battery

    Model Type SG48100M
    Rated capacity 100Ah
    Nominal voltage 51.2V
    Recommended charging voltage 54.5V
    Charging Limited Voltage 42V
    SOC working range 0~100%
    Standard discharge current 50A
    Maximum continuous discharge current 100A
    Standard charging current 50A
    Maximumcontinuous-charge current 100A
    Maximum cut-off voltage for charging. 57.6V
    Charge cutoff.current 5A
    Disharge cut-off voltage 43.2V
    PACK.cyele life ā‰„7000
    Thermal management method Natural heat dissipation
    IP protection class IP65 battery box
    Flammability rating plastic parts UL94 V-0
    Total system mass Around 43KG
    Battery system shell material 299U Q235A
    Shipping SOC SOC45-55%
    Design life 15 Year
    Parallel function Supports up to 16 batteries in parallel
    Anti-theft function Sensor c-sensor-anti-theft function
    Display function English smart display
    Charging current limit function Current limit 20
    Communication mode RS232/RS485/CAN
    Communication protocol Support multiple protocols
    Storage ambient temperature 14Ā°F~113Ā°F
    Working temperature Battery charging:32Ā°F~113Ā°F, Battery discharging:-4Ā°F~140Ā°F
    Relative humidity of working environment ā‰¤95

    Ā

    SunGoldPower 370W Mono Black PERC Solar Panel

    Model Type SG-200WM
    Peak Power (Pmax) 200W
    Production tolerance Ā±3%
    Maximum Power Current (Imp) 5.21A
    Maximum Power Voltage (Vmp) 38.42V
    Short Circuit Current (Isc) 5.52A
    Open Circuit Voltage (Voc) 46.1V
    Maximum System Voltage 1000V
    Wind Resistance 2400Pa
    Output Cables LAPP(4mm2)
    Number of Cells 64 cells in series(4x 16)
    Cell Type Monocrystalline

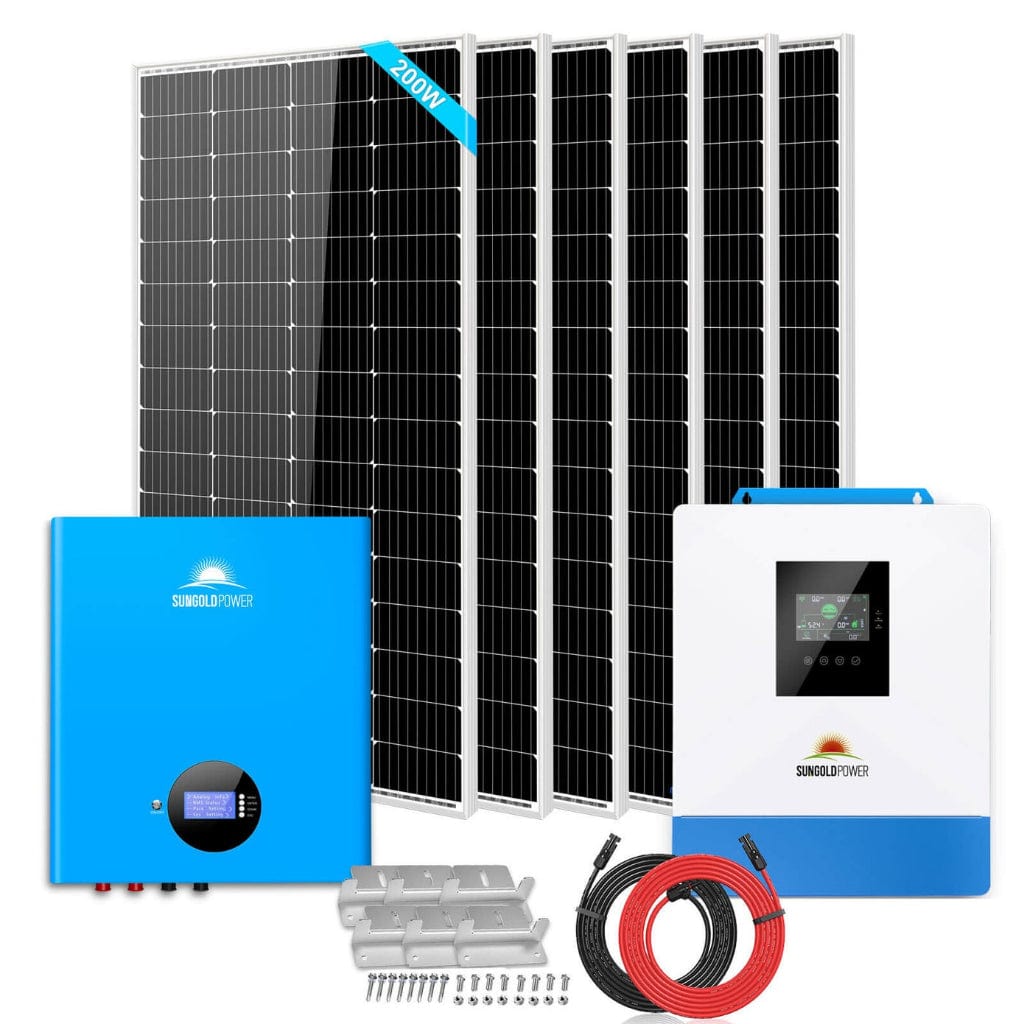

    What's Included?

    INCLUDED
    1 X 5000 Watt 48V DC 120V AC Output CE & EN61000 CertifiedĀ
    • 5000W
    • 48V DCĀ
    • 120V AC Output
    • 48V DC 120V AC Output

    1 X 100AH 51.2V PowerWall Lithium Battery
    • 51.2V
    • Made of Lithium Iron Phosphate
    • 100Ah
    • 5.12kWh

    6 X 200 Watt Monocrystalline Solar Panels
    • 200WĀ
    • Monocrystalline
    • 2400Pa wind resistance
    • CE, TUV

    4 X Sets of Mounting Z-Brackets

    • Lightweight Aluminum Corrosion, for RVs, Trailers, Boats, Yachts, Wall and Other Off Gird Roof

    1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input

    • 10 AWG Solar Extension Cable 50Ft

      Warranty

      WARRANTY & RETURN

      We hope you have enjoyed your online shopping experience with Sungoldpower. Please read below for more information about our warranty and return policies.


      WARRANTY & RETURN POLICY

      The warranty period for is 1~25 years for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

      Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.


      LIMITED TO ORIGINAL CONSUMER BUYER

      The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.


      EXCLUSIONS

      Sungoldpower's warranty does not apply to: Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature. Attempted repair by anyone other than an authorized facility. If any modified products received will be returned to you at your expense. Ā



      REPLACEMENTS

      Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product. If the products appear faulty because of inappropriate operation, we can only help fix the issue and donā€™t accept returns or replacements. The customer needs to pay all the fees for accessories and shipping

      If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)


      RETURN

      Sungoldpower offers a 30-day money back guarantee for goods purchased directly from Sungoldpower.com.We are confident that you will love your new Sungoldpower product. However. If for any reason you are not fully satisfied with your purchase, you may return your products within 30 days as long as they are new, undamaged, and unmodified. We cannot guarantee that your item will be accepted for a refund or exchange if it does not meet these requirements. If you are unsatisfied for any reason, simply let us know within 30 days. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. Once we receive the product and confirm the validity, we will refund the full purchase price. Return requests outside of 30 days require special authorization.


      PLEASE BE PREPARED FOR THE FOLLOWING INFORMATION:

      Order number

      Video or photo of the faulty product (if applicable)

      The item with the original packaging.


      REFUNDS (IF APPLICABLE)

      Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

      If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

      Ā Ā

      USED PRODUCTS

      The warranty period is one year. If the product appears a problem within 30 days naturally, Sungoldpower will cover all the shipping fees and repair fees for back and forth. If the product appears a problem within 1 year naturally, Sungoldpower will cover the repair fee and the customer needs to cover the shipping fee for back and forth.Sungoldpower shall not be responsible for the after-sale of products purchased through sales channels other than those designated by Sungoldpower. Customers can purchase accessories from Sungoldpower but Sungoldpower is not responsible for the after-sale of accessories.

      • 25 years Linear Product Workmanship Warranty.
      • 10 years workmanship warranty.

        Ā

          Downloads

          • SunGoldPower 5000W 48V Solar Charger Inverter User Manual - Download
          • SunGoldPower 5.12kwh Powerwall Lithium Battery SG48100M User Manual - Download
          • SunGoldPower 5.12kwh Powerwall Lithium Battery SG48100M Data Sheet - Download
          • SunGoldPower 200W Solar Panel User Manual - Download

          Get in touch with us

          Text or Call :Ā 888-556-5886Ā or simply start a live chat with our experts.

          Average response time is 39 seconds. We are open 7 days a Week; 8:00 AM - 8:00 PM EST

          support@epowerguys.com

          6 Reasons Why Clients Recommend Us:

          Collapsible content

          FREE SHIPPING

          On all orders over $200

          110% LOWEST PRICE GUARANTEE

          We will beat the competitors' price. With us, you buy knowing you get the best deal

          FREE RETURNS (FOR REAL!)

          For all eligible returns, we DO NOT charge any shipping fees or restocking fees.

          BIGGEST SELECTION AVAILABLE ONLINE

          We work with the best Manufacturers on the market. If competition has it out of stock, we will get it for you.

          REAL PEOPLE HERE TO HELP

          Our Customer Service team is here for you 7 days a week. You will always get customized help and assistance.

          SAFE & SECURE ORDERING

          Secure checkout on a website ensures that your personal and payment information is encrypted and protected during the transaction.

          • Live Chat Support

            or call 888-556-5886

          • No Restocking Fees

            $0 Restocking Fees

          • No Sales Tax

            $0 Sales Tax!
