SunGoldPower

SunGoldPower SGM-5K10M Off-Grid Wall Mounted Solar Kit with 10.24kWh Powerwall Lithium Battery and 5000W Solar Inverter | 2220W Solar Panel | 48VDC | 120VAC

SunGoldPower SGM-5K10M Off-Grid Wall Mounted Solar Kit with 10.24kWh Powerwall Lithium Battery and 5000W Solar Inverter | 2220W Solar Panel | 48VDC | 120VAC

SGM-5K10M

0 total reviews

Regular price
Price: $5,589.00
Regular price
$6,210.00
$5,589.00
Sale price
You Save: $621.00 (10%)

You can save additionalĀ 3% OFFĀ on top of all other discountsĀ by paying via wire transfer or Zelle. Details at checkout

Shipping & Returns

Shipping & Returns

Order Confirmation:

As soon as you place your order, you will receive a confirmation email. After that, we double-check if all items ordered are in stock and available for immediate shipment. If yourĀ orderĀ is available for the delivery within the advertised time frame, we will submit itĀ for shipment to the warehouse. If the expected delivery time exceeds the advertised time frame, we'll reach out to you via email and/or phone to confirm the order.

Order Shipment:

Within 1-2 business dayĀ from the time the item has been shipped, you will receiveĀ an email confirmation with tracking number. If youĀ would not receive tracking information withinĀ 6 business days of your order, feel free to follow up with us at support@epowerguys.com.

For LTL shipments, Free Shipping is Standard Curbside Delivery.

Curbside delivery is defined as delivery of the freight as close to the actual delivery address as possible. Please remember the size of the tractor trailer and certain safety precautions may prevent the freight carrier from delivering the freight at the actual curb or delivery address.

For addresses located on a cul-de-sac or dead-end street, curbside delivery is not guaranteed. In this case, the customer may need to meet the driver at the nearest intersection that the delivery truck can access.

In special cases, when the customer's address is in a high cost delivery area (e.g. remote suburbs or the center of a large city) an additional delivery fee may be required.Ā This mainly applies to ZIP codes 10000-15000, and may also apply to some addresses in the New England Area (Connecticut, Maine, Massachusetts, New Hampshire, Rhode Island, and Vermont), Washington and Oregon.

Note - itemsĀ heavier than 1,400 lbs may require delivery to a delivery dock or fork truck to unload them. Additional charges might apply.

To confirm the availability of Fee Shipping - Standard Curbside Delivery Option, please contact the ePowerGuysĀ Team before placing your order.

Estimated Time of Arrival:

Our standard shipping out time for orders from our warehouse to the customer is 4-12 business days and most orders are shipped within 3-6 business days of placing the order. Custom-made products are usuallyĀ shipped within 8-12Ā weeks. If the expectedĀ shipping date for your order would fall outside of the advertised 4-12 business day time frame, our customer service team will reach out to you to confirm if you are OK with that date.

Areas Covered:

All estimated delivery dates and shipping costs advertised on the website apply the Contiguous United States only. Please contact our customerĀ serviceĀ team to discuss the time and cost of shipping to HawaiiĀ or Alaska. We don't ship directly to Canada, but we can shipĀ your order to theĀ freight carrier of your choice.

    Damages:

    It is very important that you inspect the packaging of your items and the items themselves when they arrive and check if you received all boxes listed on the delivery receipt.

    If you notice any damage or shortage of packages, you must make note of it on the bill of lading, take pictures, and REFUSE DELIVERY.Ā YourĀ note should say "refused due to damage". You must also take photos of all sides of the box and send them to us within 24 hours.Ā If there are no damages visible before opening the box, youĀ must note "subject to further inspection, may contain concealed damage".

    If a shipment with a damaged item is accepted by the recipient (even if the bill of lading would include information about the damage), we will not be able to offer you a replacement item or a refund for your order.

    After receiving the shipment and before unpacking the item, be sure to take photos of the packaging from all sides, even if there are no visible signs of damage - this is very important if after unpacking it turns out that the item has concealed damage and we would have to file a complaint with the carrier / manufacturer of the item.

    If you notice any damage after receiving the delivery, do not throw the box away, and contact us with the photos. After we receive information from you about the refused delivery or concealed damage, we immediatelyĀ initiate a claim withĀ the shipping companyĀ or with the manufacturer. After the claim is fully processed, we ship all replacements atĀ absolutely no cost to you.

    Cancellations & Refunds:

    We can cancel your non-custom-made or non-made-to-order order at absolutely no cost to you before the shipping label or Bill of Lading has been created.

    Custom-made or made-to-order products are not eligible for refunds after the order and its conditions have been confirmed by the customer.

    Orders delivered outside the United States are not eligible for refunds.

    If your order arrived damaged, "Damages" section applies.

    To be eligible for a return, the item must be unused and in the same condition as you received it. It must also remain in the original packaging, and the packaging must be in a perfect condition. We do not charge restocking fees or return shipping fees. All eligible returns are 100% free.Ā

    Our refund policy lasts 45 days. If 45 days have gone by since you received your item, unfortunately, we canā€™t offer you a refund.

    Before approving the return procedure for your item, we must receive photos of the unpacked product (on each side) and the product packed in the original packaging (on each side) - based on the photos received, we can assess whether the item is subject to the return procedure.

    If you want to return the ordered product, it has to be arranged in the same manner it arrived to you. For products delivered via LTL freight, it must be packed in its original packaging on a pallet and made available for pickup by our carrier within 45 days from the date the product was delivered to you, at the exact same location to which it was delivered.

    For products not shipped as LTL freight (e.g. via FedEx Ground / UPS / USPS), the product you wish to return must be packed in the original packaging and made available to the courier for pickup or dropped off at the local branch of the shipping company within 45 days of where the product was delivered to you.

    Please contact us at support@epowerguys.com before returning an item to discuss shipping details.

    Refunds

    We will notify you once weā€™ve received and inspected your return, and let you know if the refund was approved or not. If approved, youā€™ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.

    If more than 15 business days have passed since weā€™ve approved your return, please contact us at support@epowerguys.com.

    Lowest Price Guarantee

    We work very hard to ensure that we offer the absolute best prices online. If you find another legitimate online store that offers a lowerĀ prices on an identical item we stock (including shipping, tax, etc.), we will beat the competitor's price by 10% of the difference! Please see below for complete details.

    Please fill out the form below to find out if you qualify for the discount. In most cases you will receive a response within 1 business day.

    To request yourĀ 110% Best Price Guarantee simply email us a link to the same product on our website, or on our competitors' website.

    Our 110% Price Guarantee has some limitations:

    • Promotions such as rebates and buy one, get one free offer are not eligible
    • The item must be in stock on the competitors' website
    • The competitor must be an online store, they may not have a retail location
    • The website can not be a discounter or auction website (i.e.; eBay, overstock, etc..)
    • The competitor must be an Authorized Retailer of the product in question, and must not be violating advertising price agreements with the manufacturer
    • The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax

    There may be brands excluded from that offer. PleaseĀ contact us for further information.

    Our SGM-5K10M Off-Grid Solar Kit comes with nearly everything you need to bring 2.22KW of off-grid solar power and storage to mid-sized off-grid homes or remote cabins. With 2 PCS 51.2V 100AH PowerWall Lithium batteries and solar panel mounting, you're on your way! This system includes a 5000W 48V 120V Pure Sine Wave Inverter, which powers most home appliances. The system is ready for expansion; up to 6 identical inverters can be paralleled in single-phase (120VAC) or split-phase (240VAC) or three-phase (208V). You can add more batteries and solar panels according to your requirements. With Wi-Fi monitoring showing the performance and energy data of your solar system through an app, letā€™s enjoy off-grid living and the adventure with the Solar Energy Kit!

    SunGoldPower offers 6 models of Wall Mounted Solar Panel Kit:


    Ā

    CA Residents: See Prop 65 Warning

    Features

    SunGoldPower 5000W 48V Solar Charger Inverter

    • 5000W Power Capacity: It offers a substantial power output, making it suitable for running large appliances and systems.
    • 48V Pure Sine Wave: The inverter provides a clean, pure sine wave output, ensuring compatibility with sensitive electronics and appliances.
    • CE & EN61000 Certified: The product complies with European safety and electromagnetic compatibility standards, ensuring reliability and safety.
    • Home Backup Inverter: Ideal for use as a backup power supply for homes, providing uninterrupted power during outages or emergencies.
    • Built-in UPS Function: Offers uninterrupted power to run household electric devices, enhancing the reliability of your power supply.
    • Large Surge Capacity: Features a 300% surge capacity for 20 seconds, providing protection against power spikes.
    • AC Auto-Transfer Switch: Automatically switches loads to AC power when shore power or generator input is available, and to DC battery source during power cuts.
    • Battery Charging Capability: Includes a battery charger, allowing for simultaneous power supply and battery charging.
    • LCD Display Monitoring: Offers easy monitoring of the inverter's performance and battery status.
    • Low Idle Consumption: Designed for energy efficiency, with minimal power consumption when idle.
    • Battery Temperature Sensor: Increases battery life by monitoring and optimizing charging conditions.
    • Remote Control: Provides an easy on/off switch for the inverters, offering convenience and control.


      SunGoldPower 5.12kwh Powerwall Lithium Battery

      • Capacity: It has a storage capacity of 5.12 kWh, making it a high-capacity energy storage solution suitable for both home and commercial use.
      • Battery Type: The battery uses LIFEPO4 Lithium technology, known for its long lifespan and high energy density.
      • Battery Management System (BMS): It includes an advanced BMS for protection against overcharging, overheating, and other risks, ensuring a long lifespan of over 7000 deep cycles.
      • Modular Structure: The battery has a modular design, allowing for system expansion up to 81.9kWh, catering to growing energy needs.
      • Compatibility: It is compatible with a wide range of inverters, thanks to its versatile communication protocols, making it a seamless addition to most energy systems.
      • LCD Display: Features an LCD display for easy monitoring and management of the battery's status.
      • IP65 Rating: It has an IP65 waterproof rating, making it suitable for use in environments with light rain and splash protection.
      • Anti-Theft Sensor: Includes a sensor c-sensor-anti-theft function for added security.


      SunGoldPower 370W Mono Black PERC Solar Panel

      • High Efficiency Module: It utilizes Mono PERC Half-Cut Technology, achieving a module efficiency of up to 20.3%. This technology allows the panels to provide more output per surface area compared to traditional panels.
      • High Tolerance: The panels are made with half-cell technology, enhancing power output and performance. They offer a higher shade tolerance due to their unique wiring system and an increased number of cells.
      • Wide Application: Suitable for off-grid, on-grid, or hybrid solar systems. It can be used in various facilities such as RVs, tiny houses, marine, household power supply, and commercial buildings, helping to reduce power consumption and save costs in the long term.
      • Warranty: The solar panels come with a 10-year workmanship warranty and a 25-year linear performance warranty. They are TUV certified, with UL certification expected to follow.
      • Waterproof: The solar junction box and solar connectors are IP68 rated, protecting them from dust and ensuring proper functionality after temporary immersion in water (up to 1m deep).

        Weight & Dimensions

        SunGoldPower 5.12kwh Powerwall Lithium Battery

        Weight (lbs) 108.5
        Dimensions
        Length
        Width Height
        23" 16.5" 6"
        ***This is the weight and dimensions of each battery***


        SunGoldPower 5000W 48V Solar Charger Inverter

        Weight (lbs) 29
        Dimensions
        Length
        Width Height
        18" 14" 5.2"
        ***This is the weight and dimensions of each solar charger inverter***

        SunGoldPower 370W Mono Black PERC Solar Panel

        Weight (lbs) 41.3
        Dimensions
        Length
        Width Height
        69.3" 40.9" 1.4"
        ***This is the weight and dimensions of each solar panel***


        Specifications

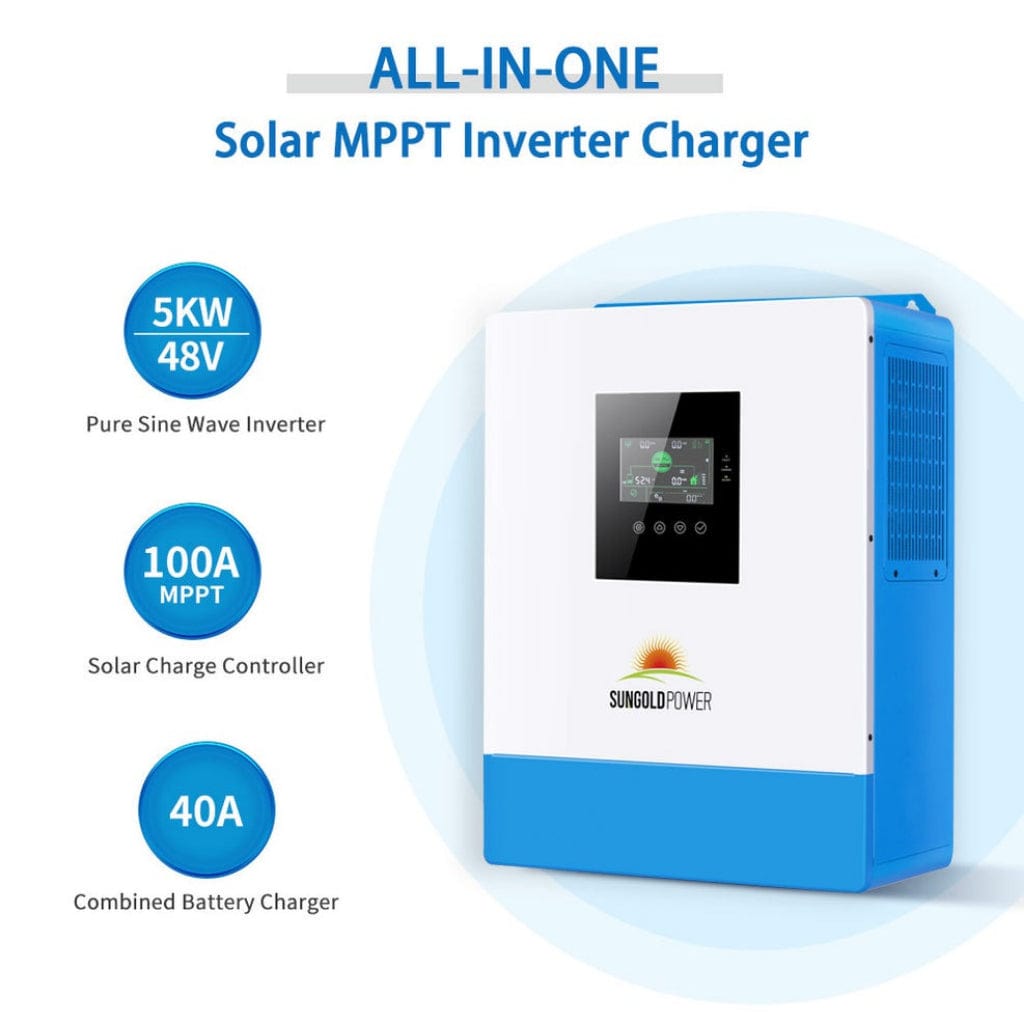

        SunGoldPower 5000W 48V Solar Charger Inverter

        Model Type SPH5048P
        Permitted parallel numberĀ  1~6
        Rated input voltageĀ  110/120Vac
        Input voltage rangeĀ  (90Vac~140Vac)Ā±2%
        Frequency 50Hz/ 60Hz (Auto detection
        Frequency Range 47Ā±0.3Hz ~ 55Ā±0.3Hz (50Hz);
        57Ā±0.3Hz ~ 65Ā±0.3Hz (60Hz);
        Overload/short circuit protection Circuit breaker
        EfficiencyĀ  >95%
        Conversion time (bypass and inverter) 10ms (typical)
        AC reverse protection Available
        Maximum bypass overload current 63A
        Output voltage waveform Pure sine wave
        Rated output power (VA) 5000
        Rated output power (W) 5000
        Power factor 1
        Rated output voltage (Vac) 120Vac (100/105/110Vac Settable)
        Output voltage error Ā±5%
        Output frequency range (Hz) 50Hz Ā± 0.3Hz
        60Hz Ā± 0.3Hz
        Maximum Efficiency >92%
        Overload protection (102% < load <110%) Ā±10%: report error and turn off the output after 5
        minutes;
        (110% < load < 125%) Ā± 10%: report error and turn off the output after 10
        seconds;
        (Load >125% Ā±10%): report error and turn off the output after 5 seconds;
        Peak power 10000VA
        Loaded motor capability 4HP
        Rated battery input voltage 48V (Minimum starting voltage 44V)
        Battery voltage range Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage
        recovery... settable on LCD screen)
        Power saving mode selfconsumption Loadā‰¤50W
        Rated Output Power (W) 5000W
        Max. apparent power (VA) 5000VA
        Max. output current (A) 41.7A
        THDI ļ¼œ3%
        Rated voltage(V) 120Vac
        Frequency 50Hz/60Hz
        Battery type Lead acid or lithium battery
        Maximum charge current(can be set) 0-40A
        Charge current error Ā± 3Adc
        Charge voltage range 40 ā€“58Vdc
        Short circuit protection Circuit breaker and blown fuse
        Circuit breaker specifications 63A
        Overcharge protection Alarm and turn off charging after 1 minute
        Maximum PV open circuit voltage 500Vdc
        PV operating voltage range 120-500Vdc
        MPPT voltage range 120-450Vdc
        Battery voltage range 40-60Vdc
        Maximum PV input power 5500W
        Maximum PV input current 22A
        PV charging current range (can be set) 100A
        Charging short circuit protection Blown fuse
        Wiring protection Reverse polarity protection
        Max charger current(can be set) 100A
        Certification CE(IEC62109-1)
        EMC certification level EN61000
        Operating temperature range -10Ā°C to 55Ā°C
        Storage temperature range -25Ā°C ~ 60Ā°C
        Humidity range 5% to 95% (Conformal coating protection)
        Noise ā‰¤60dB
        Heat dissipation Forced air cooling, variable speed of fan
        Communication interface USB/RS485(WiFi/GPRS)/Dry contact control

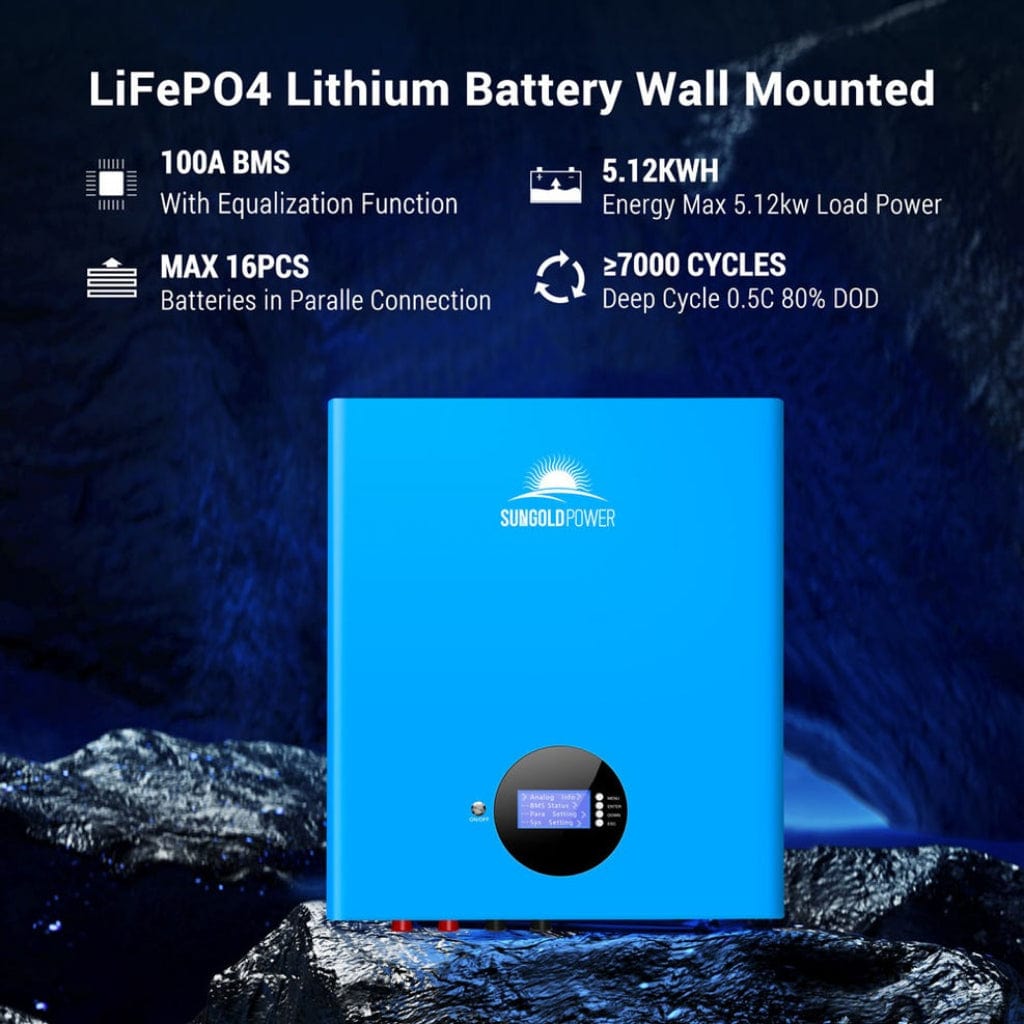

        SunGoldPower 5.12kwh Powerwall Lithium Battery

        Model Type SG48100M
        Rated capacity 100Ah
        Nominal voltage 51.2V
        Recommended charging voltage 54.5V
        Charging Limited Voltage 42V
        SOC working range 0~100%
        Standard discharge current 50A
        Maximum continuous discharge current 100A
        Standard charging current 50A
        Maximumcontinuous-charge current 100A
        Maximum cut-off voltage for charging. 57.6V
        Charge cutoff.current 5A
        Disharge cut-off voltage 43.2V
        PACK.cyele life ā‰„7000
        Thermal management method Natural heat dissipation
        IP protection class IP65 battery box
        Flammability rating plastic parts UL94 V-0
        Total system mass Around 43KG
        Battery system shell material 299U Q235A
        Shipping SOC SOC45-55%
        Design life 15 Year
        Parallel function Supports up to 16 batteries in parallel
        Anti-theft function Sensor c-sensor-anti-theft function
        Display function English smart display
        Charging current limit function Current limit 20
        Communication mode RS232/RS485/CAN
        Communication protocol Support multiple protocols
        Storage ambient temperature 14Ā°F~113Ā°F
        Working temperature Battery charging:32Ā°F~113Ā°F, Battery discharging:-4Ā°F~140Ā°F
        Relative humidity of working environment ā‰¤95

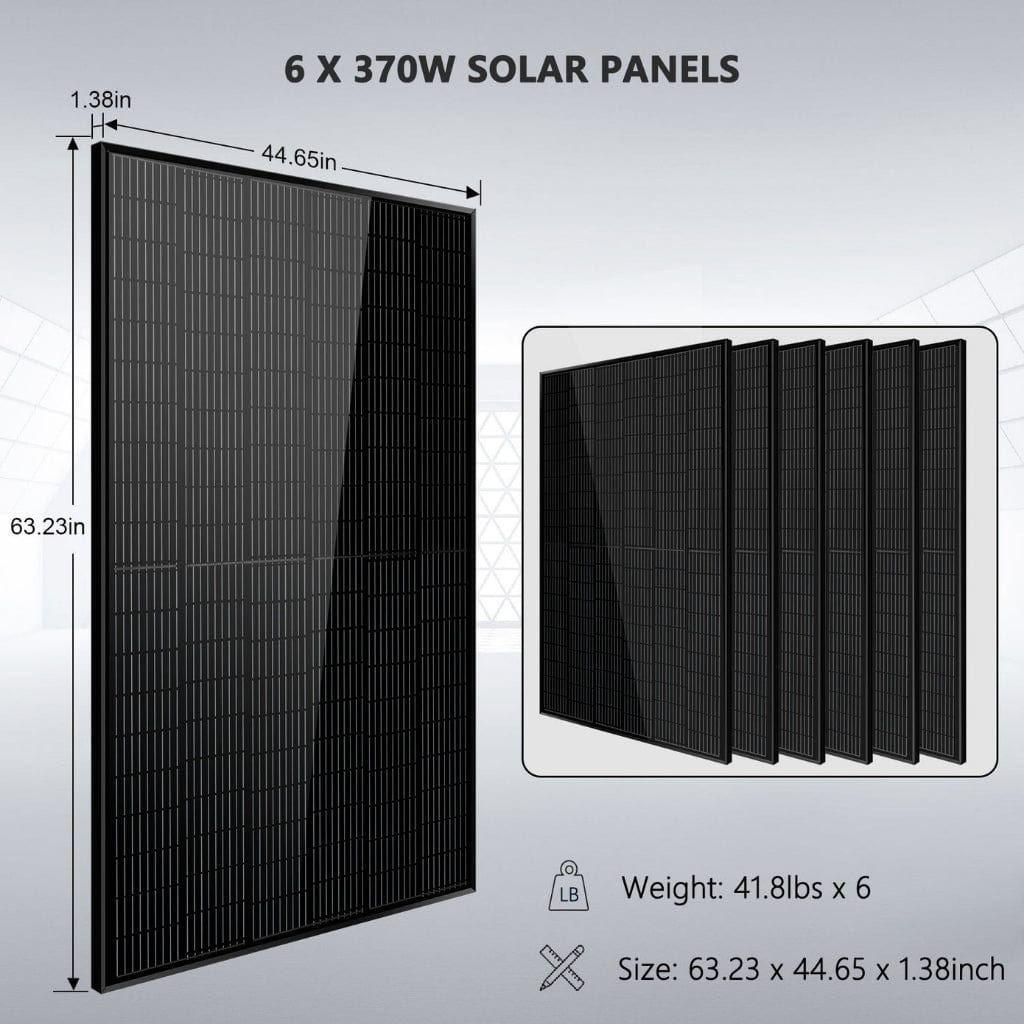

        SunGoldPower 370W Mono Black PERC Solar Panel

        Model Type SG-370WM
        Peak Power (Pmax) 370W
        Production tolerance Ā±3%
        Maximum Power Current (Imp) 11.15 A
        Maximum Power Voltage (Vmp) 33.2V
        Short Circuit Current (Isc) 11.81A
        Open Circuit Voltage (Voc) 40.17V
        Maximum System Voltage 1500V
        Wind Resistance 2400Pa
        Output Cables 12 AWG (1ft per cable)
        Number of Cells 120(6*20)
        Cell Type Mono 166*83mm
        Certifications CE TUV

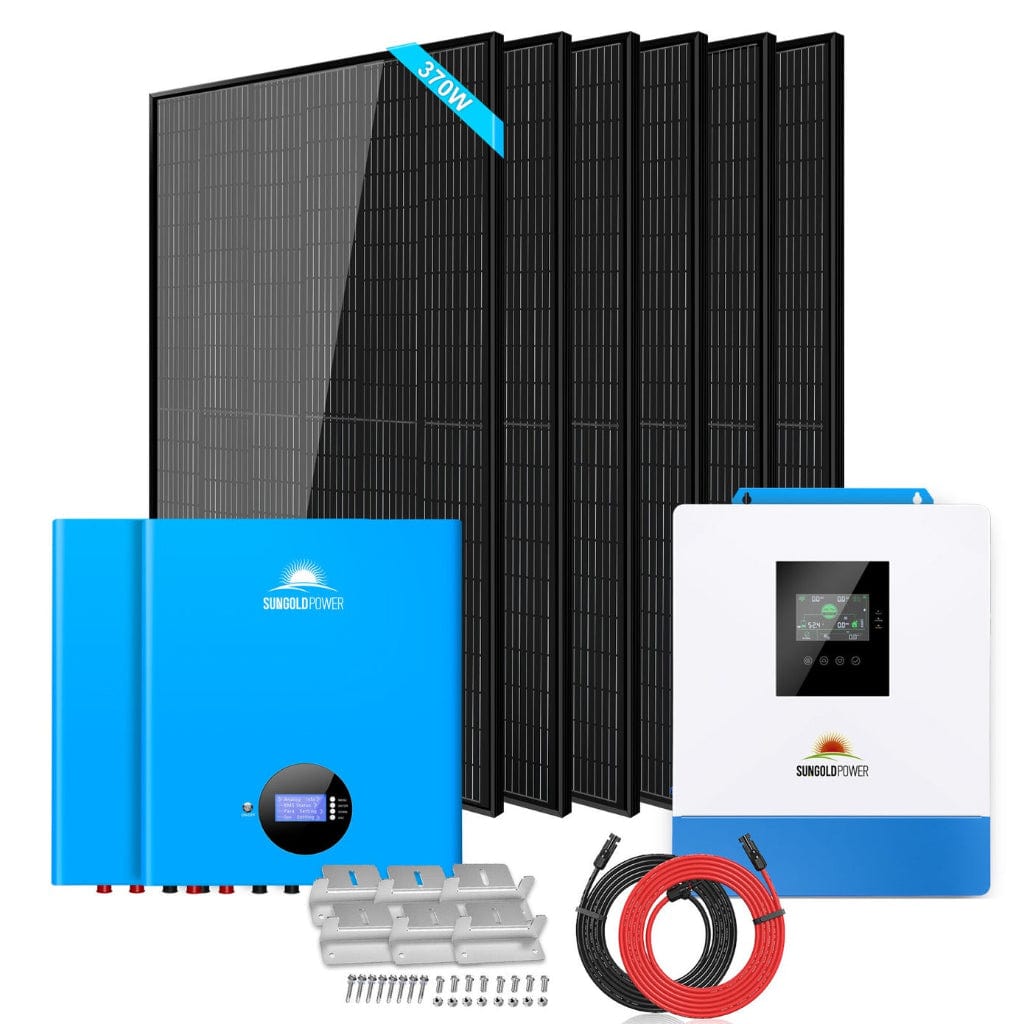

        What's Included?

        INCLUDED
        1 X 5000 Watt 48V DC 120V AC Output CE & EN61000 CertifiedĀ
        • 5000W
        • 48V DCĀ
        • 120V AC Output
        • 48V DC 120V AC Output

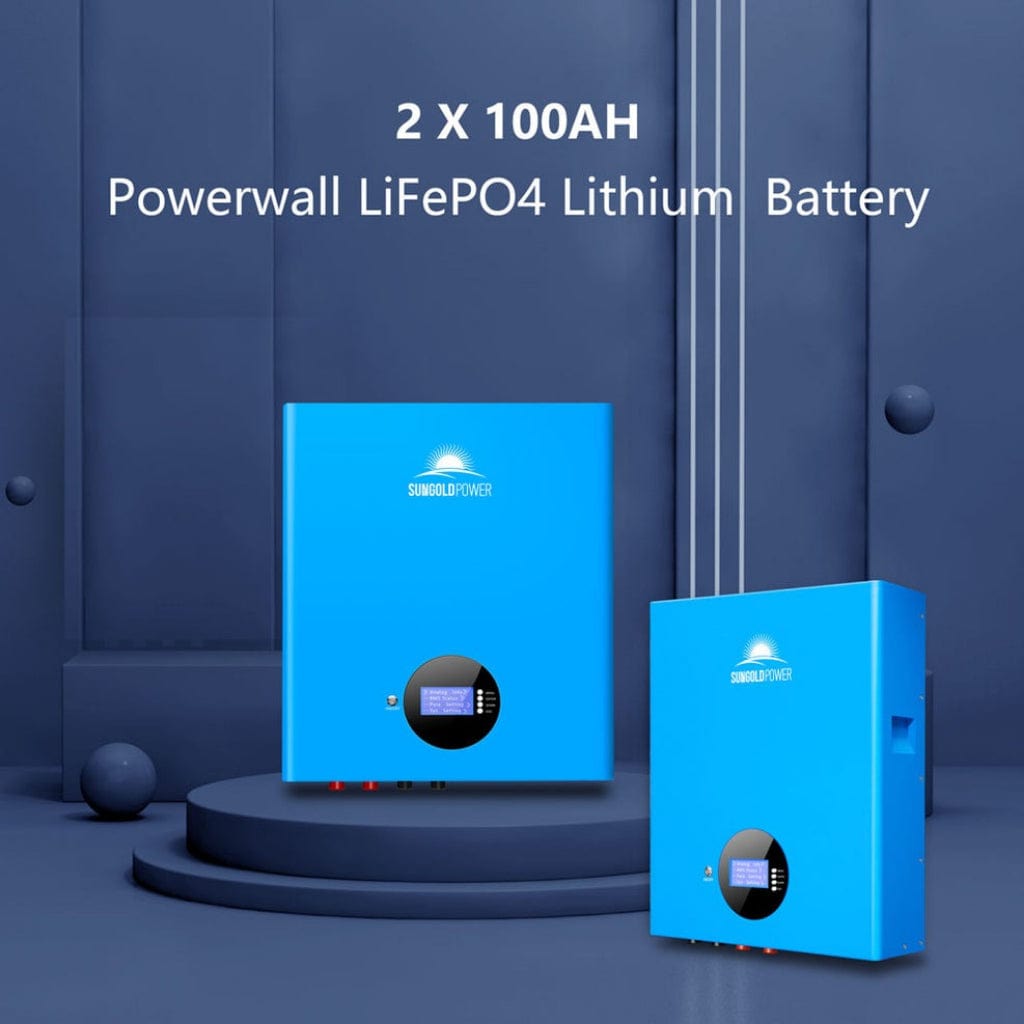

          2 X 100AH 5.12kWh PowerWall Lithium Battery
          • 51.2V
          • Made of Lithium Iron Phosphate
          • 100Ah
          • 5.12kWh


          6 X 370 Watt Monocrystalline Solar Panelsx
          • 370WĀ
          • Monocrystalline
          • 2400Pa wind resistance
          • CE, TUV

          4 X Sets of Mounting Z-Brackets

          • Lightweight Aluminum Corrosion, for RVs, Trailers, Boats, Yachts, Wall and Other Off Gird Roof

          1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input

          • 10 AWG Solar Extension Cable 50Ft

            Warranty

            WARRANTY & RETURN

            We hope you have enjoyed your online shopping experience with Sungoldpower. Please read below for more information about our warranty and return policies.


            WARRANTY & RETURN POLICY

            The warranty period for is 1~25 years for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

            Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.


            LIMITED TO ORIGINAL CONSUMER BUYER

            The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.


            EXCLUSIONS

            Sungoldpower's warranty does not apply to: Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature. Attempted repair by anyone other than an authorized facility. If any modified products received will be returned to you at your expense. Ā



            REPLACEMENTS

            Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product. If the products appear faulty because of inappropriate operation, we can only help fix the issue and donā€™t accept returns or replacements. The customer needs to pay all the fees for accessories and shipping

            If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)


            RETURN

            Sungoldpower offers a 30-day money back guarantee for goods purchased directly from Sungoldpower.com.We are confident that you will love your new Sungoldpower product. However. If for any reason you are not fully satisfied with your purchase, you may return your products within 30 days as long as they are new, undamaged, and unmodified. We cannot guarantee that your item will be accepted for a refund or exchange if it does not meet these requirements. If you are unsatisfied for any reason, simply let us know within 30 days. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. Once we receive the product and confirm the validity, we will refund the full purchase price. Return requests outside of 30 days require special authorization.


            PLEASE BE PREPARED FOR THE FOLLOWING INFORMATION:

            Order number

            Video or photo of the faulty product (if applicable)

            The item with the original packaging.


            REFUNDS (IF APPLICABLE)

            Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

            If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

            Ā Ā

            USED PRODUCTS

            The warranty period is one year. If the product appears a problem within 30 days naturally, Sungoldpower will cover all the shipping fees and repair fees for back and forth. If the product appears a problem within 1 year naturally, Sungoldpower will cover the repair fee and the customer needs to cover the shipping fee for back and forth.Sungoldpower shall not be responsible for the after-sale of products purchased through sales channels other than those designated by Sungoldpower. Customers can purchase accessories from Sungoldpower but Sungoldpower is not responsible for the after-sale of accessories.

            • 25 years Linear Product Workmanship Warranty.
            • 10 years workmanship warranty.

              Ā

                Downloads

                • SunGoldPower 5000W 48V Solar Charger Inverter User Manual - Download
                • SunGoldPower 5.12kwh Powerwall Lithium Battery SG48100M User Manual - Download
                • SunGoldPower 5.12kwh Powerwall Lithium Battery SG48100M Data Sheet - Download
                • SunGoldPower 3700W Solar Panel User Manual - Download

                Get in touch with us

                Text or Call :Ā 888-556-5886Ā or simply start a live chat with our experts.

                Average response time is 39 seconds. We are open 7 days a Week; 8:00 AM - 8:00 PM EST

                support@epowerguys.com

                6 Reasons Why Clients Recommend Us:

                Collapsible content

                FREE SHIPPING

                On all orders over $200

                110% LOWEST PRICE GUARANTEE

                We will beat the competitors' price. With us, you buy knowing you get the best deal

                FREE RETURNS (FOR REAL!)

                For all eligible returns, we DO NOT charge any shipping fees or restocking fees.

                BIGGEST SELECTION AVAILABLE ONLINE

                We work with the best Manufacturers on the market. If competition has it out of stock, we will get it for you.

                REAL PEOPLE HERE TO HELP

                Our Customer Service team is here for you 7 days a week. You will always get customized help and assistance.

                SAFE & SECURE ORDERING

                Secure checkout on a website ensures that your personal and payment information is encrypted and protected during the transaction.

                • Live Chat Support

                  or call 888-556-5886

                • No Restocking Fees

                  $0 Restocking Fees

                • No Sales Tax

                  $0 Sales Tax!
