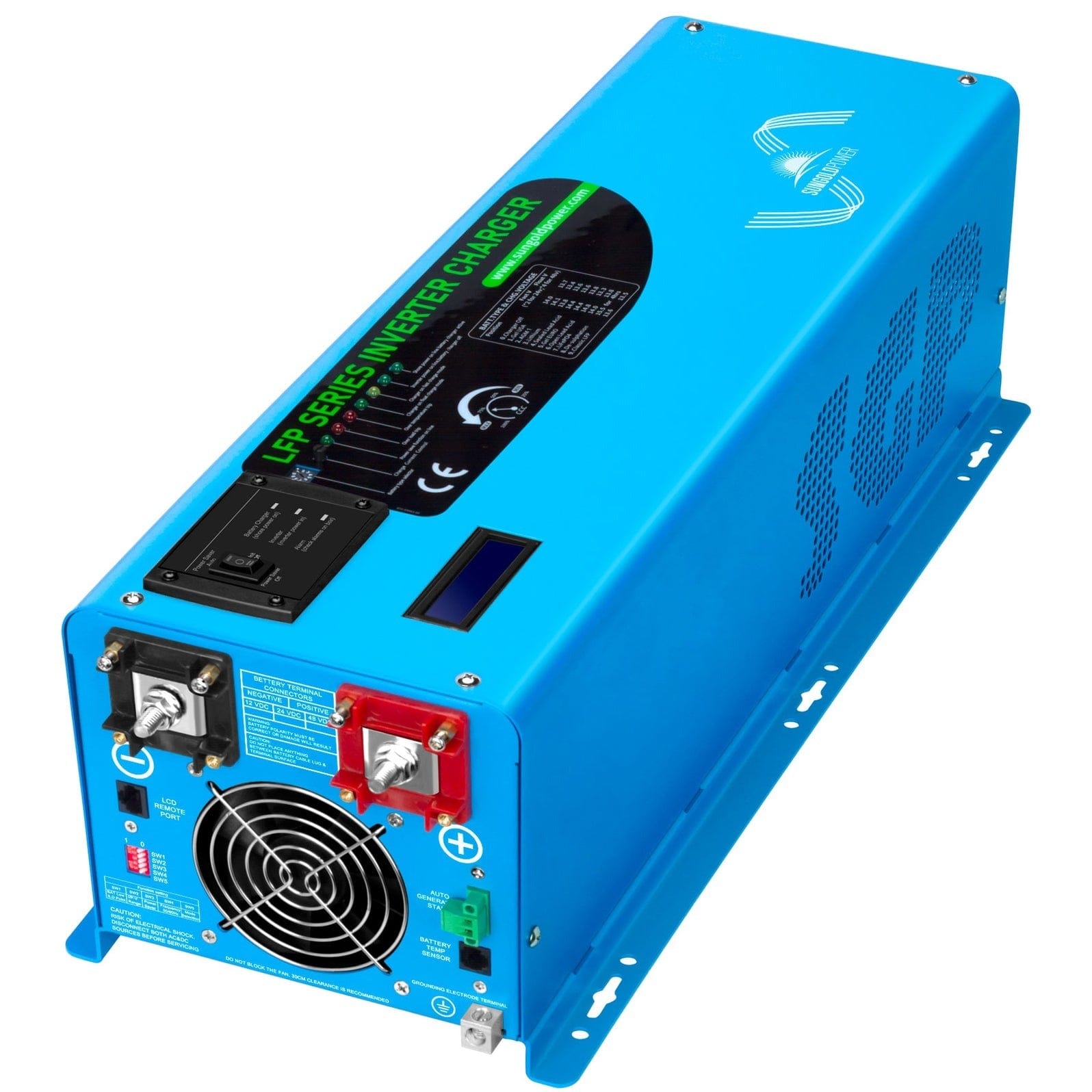

SunGoldPower 4000W DC 24V Split Phase Inverter with Charger | Pure Sine Wave | Low Frequency | Overload Protection

SunGoldPower 4000W DC 24V Split Phase Inverter with Charger | Pure Sine Wave | Low Frequency | Overload Protection

LFP4K24V240VSP

0 total reviews

Regular price
Price: $945.25
Regular price
$995.00
$945.25
Sale price
You Save: $49.75 (5%)

You can save additional 3% OFF on top of all other discounts by paying via wire transfer or Zelle. Details at checkout

Shipping & Returns

Shipping & Returns

Order Confirmation:

As soon as you place your order, you will receive a confirmation email. After that, we double-check if all items ordered are in stock and available for immediate shipment. If your order is available for the delivery within the advertised time frame, we will submit it for shipment to the warehouse. If the expected delivery time exceeds the advertised time frame, we'll reach out to you via email and/or phone to confirm the order.

Order Shipment:

Within 1-2 business day from the time the item has been shipped, you will receive an email confirmation with tracking number. If you would not receive tracking information within 6 business days of your order, feel free to follow up with us at support@epowerguys.com.

For LTL shipments, Free Shipping is Standard Curbside Delivery.

Curbside delivery is defined as delivery of the freight as close to the actual delivery address as possible. Please remember the size of the tractor trailer and certain safety precautions may prevent the freight carrier from delivering the freight at the actual curb or delivery address.

For addresses located on a cul-de-sac or dead-end street, curbside delivery is not guaranteed. In this case, the customer may need to meet the driver at the nearest intersection that the delivery truck can access.

In special cases, when the customer's address is in a high cost delivery area (e.g. remote suburbs or the center of a large city) an additional delivery fee may be required. This mainly applies to ZIP codes 10000-15000, and may also apply to some addresses in the New England Area (Connecticut, Maine, Massachusetts, New Hampshire, Rhode Island, and Vermont), Washington and Oregon.

Note - items heavier than 1,400 lbs may require delivery to a delivery dock or fork truck to unload them. Additional charges might apply.

To confirm the availability of Fee Shipping - Standard Curbside Delivery Option, please contact the ePowerGuys Team before placing your order.

Estimated Time of Arrival:

Our standard shipping out time for orders from our warehouse to the customer is 4-12 business days and most orders are shipped within 3-6 business days of placing the order. Custom-made products are usually shipped within 8-12 weeks. If the expected shipping date for your order would fall outside of the advertised 4-12 business day time frame, our customer service team will reach out to you to confirm if you are OK with that date.

Areas Covered:

All estimated delivery dates and shipping costs advertised on the website apply the Contiguous United States only. Please contact our customer service team to discuss the time and cost of shipping to Hawaii or Alaska. We don't ship directly to Canada, but we can ship your order to the freight carrier of your choice.

    Damages:

    It is very important that you inspect the packaging of your items and the items themselves when they arrive and check if you received all boxes listed on the delivery receipt.

    If you notice any damage or shortage of packages, you must make note of it on the bill of lading, take pictures, and REFUSE DELIVERY. Your note should say "refused due to damage". You must also take photos of all sides of the box and send them to us within 24 hours. If there are no damages visible before opening the box, you must note "subject to further inspection, may contain concealed damage".

    If a shipment with a damaged item is accepted by the recipient (even if the bill of lading would include information about the damage), we will not be able to offer you a replacement item or a refund for your order.

    After receiving the shipment and before unpacking the item, be sure to take photos of the packaging from all sides, even if there are no visible signs of damage - this is very important if after unpacking it turns out that the item has concealed damage and we would have to file a complaint with the carrier / manufacturer of the item.

    If you notice any damage after receiving the delivery, do not throw the box away, and contact us with the photos. After we receive information from you about the refused delivery or concealed damage, we immediately initiate a claim with the shipping company or with the manufacturer. After the claim is fully processed, we ship all replacements at absolutely no cost to you.

    Cancellations & Refunds:

    We can cancel your non-custom-made or non-made-to-order order at absolutely no cost to you before the shipping label or Bill of Lading has been created.

    Custom-made or made-to-order products are not eligible for refunds after the order and its conditions have been confirmed by the customer.

    Orders delivered outside the United States are not eligible for refunds.

    If your order arrived damaged, "Damages" section applies.

    To be eligible for a return, the item must be unused and in the same condition as you received it. It must also remain in the original packaging, and the packaging must be in a perfect condition. We do not charge restocking fees or return shipping fees. All eligible returns are 100% free.

    Our refund policy lasts 45 days. If 45 days have gone by since you received your item, unfortunately, we can’t offer you a refund.

    Before approving the return procedure for your item, we must receive photos of the unpacked product (on each side) and the product packed in the original packaging (on each side) - based on the photos received, we can assess whether the item is subject to the return procedure.

    If you want to return the ordered product, it has to be arranged in the same manner it arrived to you. For products delivered via LTL freight, it must be packed in its original packaging on a pallet and made available for pickup by our carrier within 45 days from the date the product was delivered to you, at the exact same location to which it was delivered.

    For products not shipped as LTL freight (e.g. via FedEx Ground / UPS / USPS), the product you wish to return must be packed in the original packaging and made available to the courier for pickup or dropped off at the local branch of the shipping company within 45 days of where the product was delivered to you.

    Please contact us at support@epowerguys.com before returning an item to discuss shipping details.

    Refunds

    We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.

    If more than 15 business days have passed since we’ve approved your return, please contact us at support@epowerguys.com.

    Lowest Price Guarantee

    We work very hard to ensure that we offer the absolute best prices online. If you find another legitimate online store that offers a lower prices on an identical item we stock (including shipping, tax, etc.), we will beat the competitor's price by 10% of the difference! Please see below for complete details.

    Please fill out the form below to find out if you qualify for the discount. In most cases you will receive a response within 1 business day.

    To request your 110% Best Price Guarantee simply email us a link to the same product on our website, or on our competitors' website.

    Our 110% Price Guarantee has some limitations:

    • Promotions such as rebates and buy one, get one free offer are not eligible
    • The item must be in stock on the competitors' website
    • The competitor must be an online store, they may not have a retail location
    • The website can not be a discounter or auction website (i.e.; eBay, overstock, etc..)
    • The competitor must be an Authorized Retailer of the product in question, and must not be violating advertising price agreements with the manufacturer
    • The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax

    There may be brands excluded from that offer. Please contact us for further information.

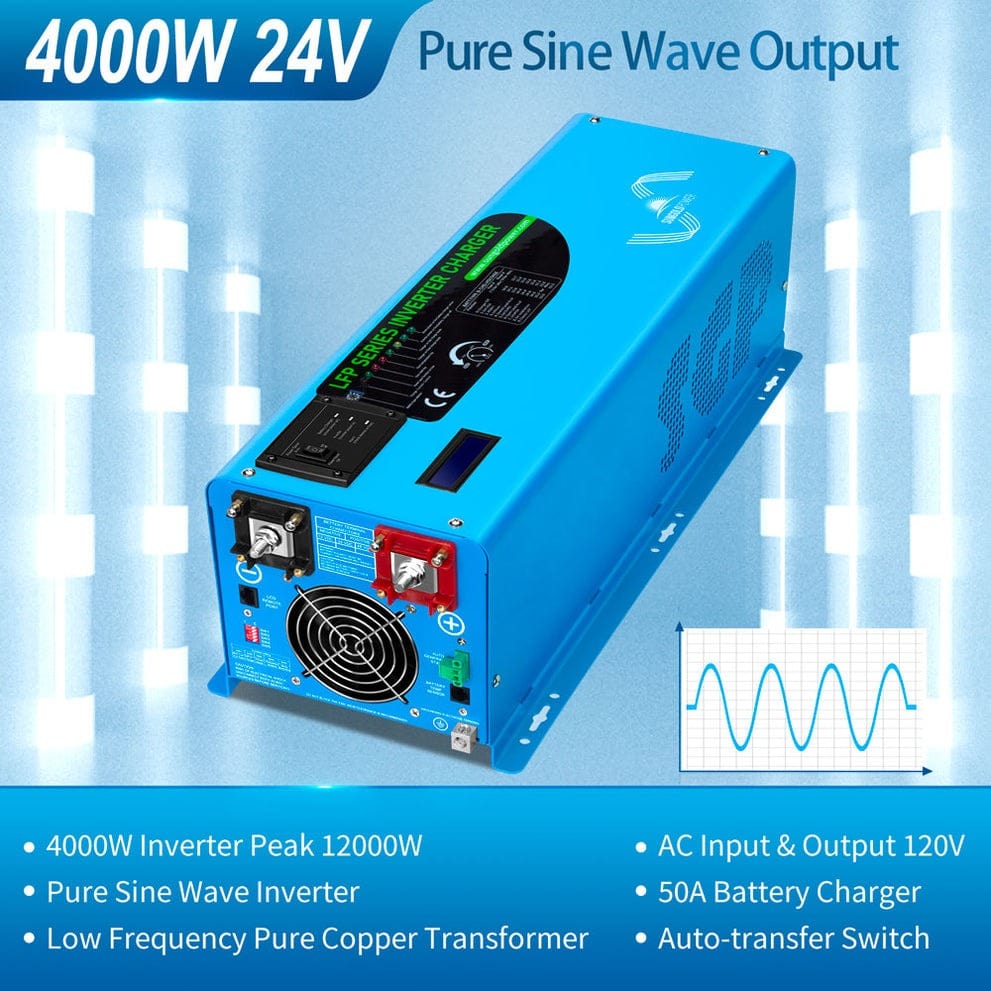

    Discover the SunGoldPower 4000W DC 24V Split Phase Inverter with Charger: a versatile powerhouse combining inverter, charger, and auto-transfer switch functionalities. With low frequency design and low idle current, it ensures stable power delivery. Offering 4000 watts of output, it supports 120VAC or 240VAC appliances and allows frequency adjustment. Switch between AC and battery priority, adjust charging current, and enjoy auto generator start for seamless power management. Experience efficiency, reliability, and convenience in one compact package.

    Features

    The SunGoldPower LFP 4000 Watt DC 24V AC 120/240 Split Phase Inverter Charger is a top high quality low frequency power inverter, built for running your whole house (small home), Business, RV System, Trailer or Boat Application, this inverter charger is perfect for your off grid system or an emergency backup supply.

    The split-phase inverter requires 240VAC input and will output 110/120 or 220/230/240VAC, and it can output 50 or 60Hz via the SW4. It is capable of producing 2 legs of 110V, making this inverter perfect for home and business applications with a 220 panel in place.

    Three in one product:

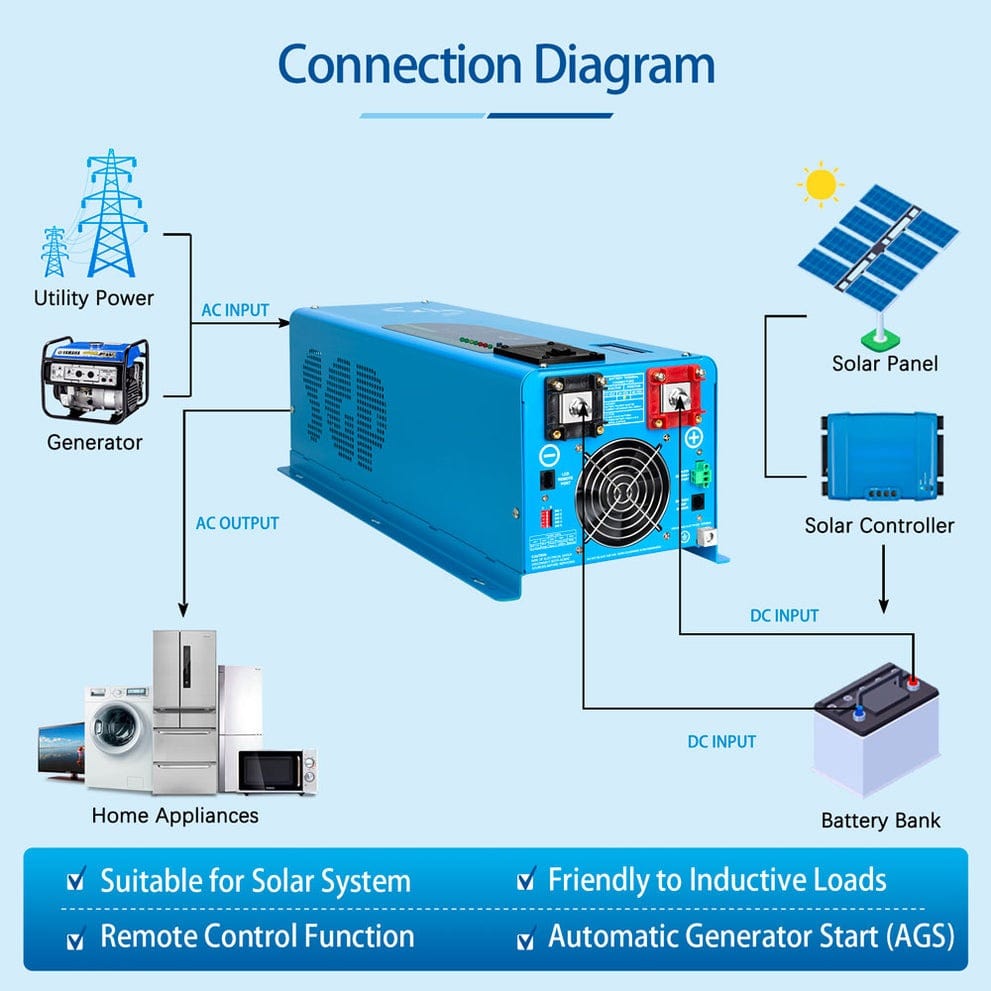

    ★ The inverter transforms 24V DC power stored by batteries to AC electricity that can power the tools and appliances.
    ★ It has a built-in 50 amp battery charger which help the grid or generator to recharge the battery.
    ★ The transfer switch allows the product to automatically switch between shore power and battery power within 10 mili seconds.

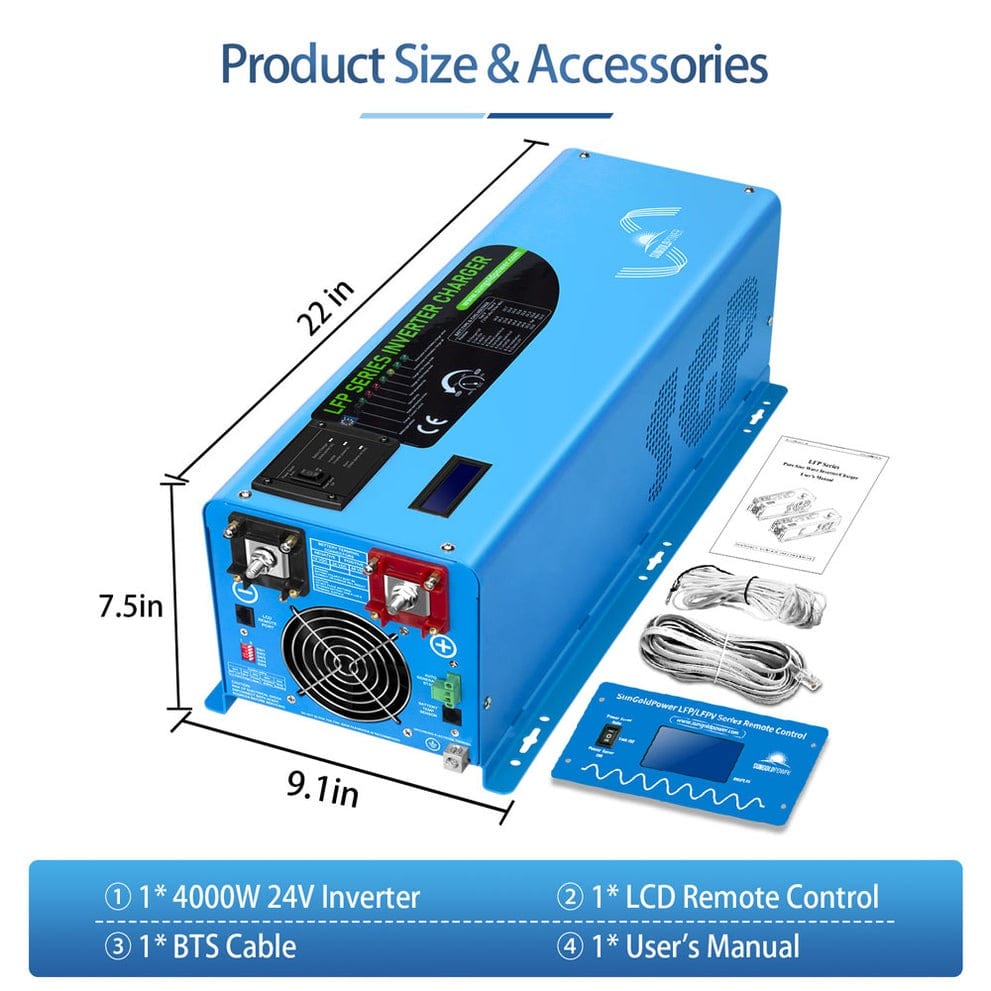

    Weight & Dimensions

    Weight (lbs) 55
    Dimensions
    Height Width Depth
    22" 9.1" 7.5"

    ***This is the weight and dimensions of each solar charger inverter***

    Specifications

    Model LFP4K24V240VSP

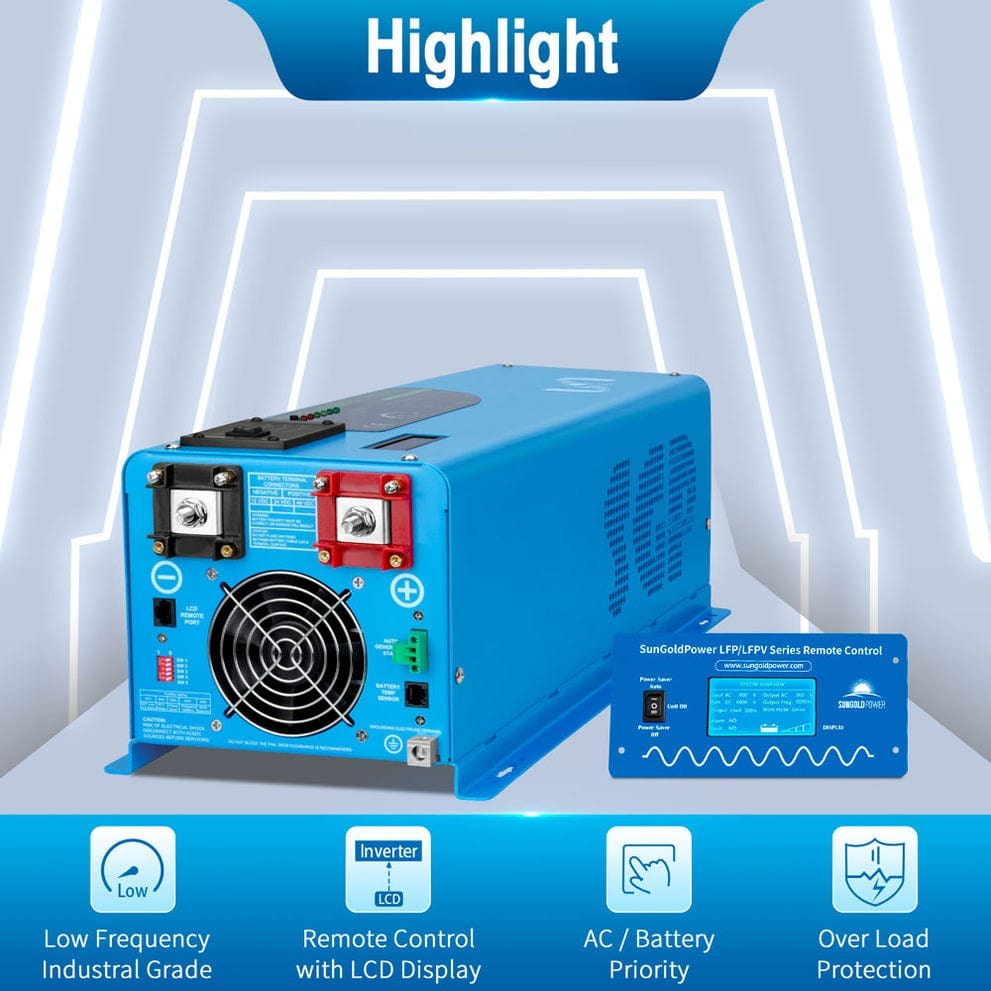

    Main Features
    4000W Low Frequency Pure Sine Inverter With Charger.
    AC/Battery Priority Selector
    Automatic Generator Start

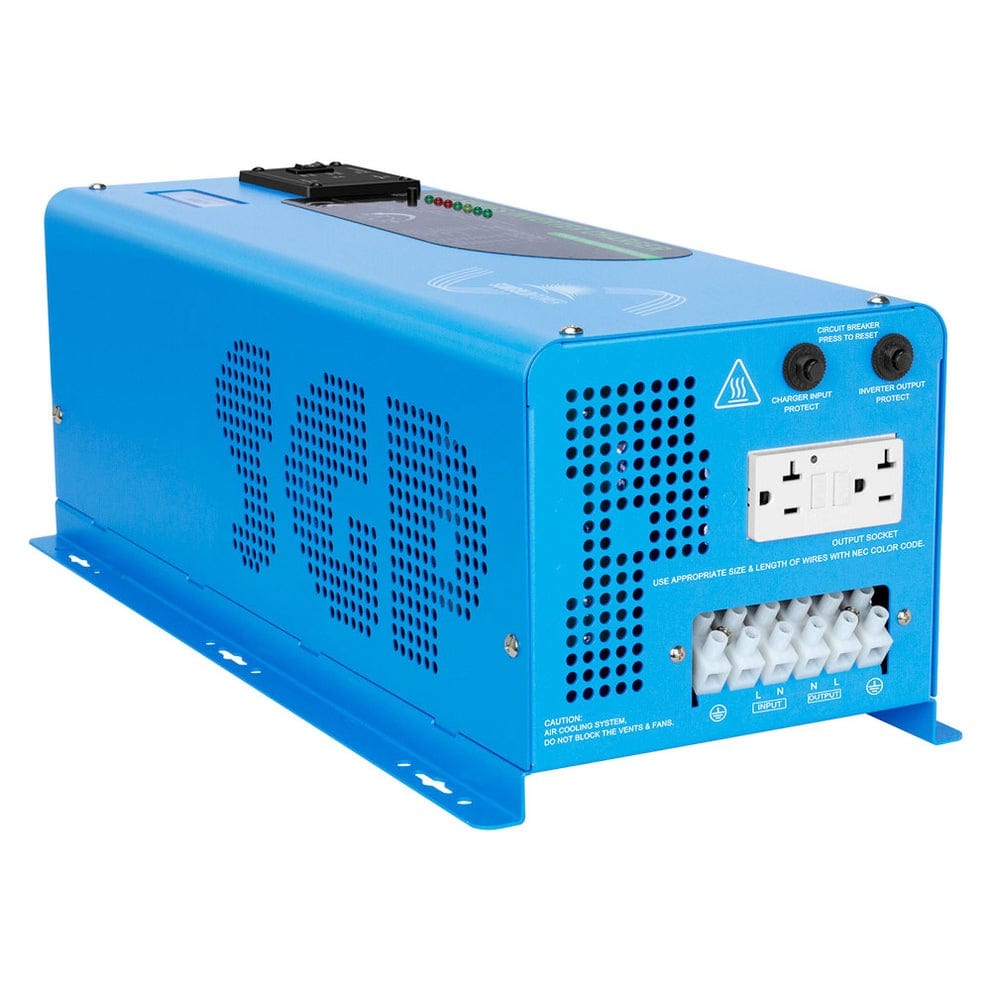

    GFCI Socket, Safety and Convenient
    The low frequency inverter can power all kinds of appliances
    LCD Display, Remote Control, BTS including
    Low Idle Consumption

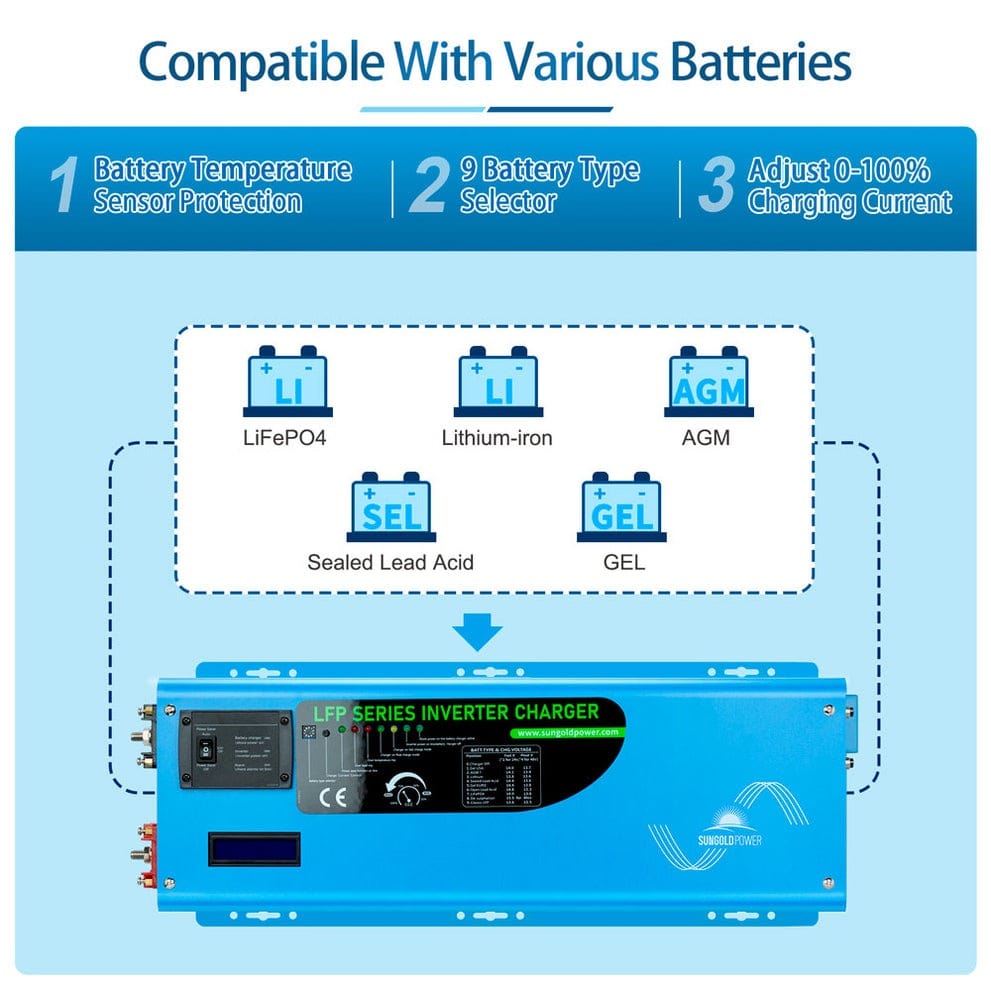

    9 battery type settings for charger
    Multi Stage Smart charger 50+/-5A, charger can be disable
    10 millisec typical transfer time


    Inverter Output
    Continuous Output Power 4000W
    Surge Rating 12000W (20 Seconds)
    AC Output AC 120V and AC 240V
    AC Input  240V
    Output Wave Pure Sine Wave (bypass mode)
    Typical transfer Time 10ms (MAX)
    Nominal Efficiency >88%


    DC Input
    Nominal Input Voltage  24.0Vdc
    Minimum Start Voltage 20.0Vdc
    Low Battery Alarm 21.0Vdc-22.0Vdc
    Low battery Trip 20.0Vdc-21.0Vdc (select by SW1)
    High Voltage Alarm 32.0Vdc
    Low battery Voltage Restart 26Vdc
    Idle Consumption 48W
    Power Saver off Idle Power 19W


    AC Charger
    Charger Rate 50+/-5A
    AC input Range (Grid or Generator) 140V-270VAC/184V-253VAC (select by SW2)
    Over Charge Protection Shutdown 31.4V
    Selectable Charge Setting based on battery type off 0%-100%


    Color Blue

    FAQ

    Regarding the SunGoldPower 4000W DC 24V SPLIT PHASE PURE SINE WAVE INVERTER WITH CHARGER: Would a 220 amp hour, 24 volt, AGM battery pack have enough power to start my 1.5 hp, 230 volt, 10.6 amp, 2 wire deep well pump?

    Dear Customer, yes, it is ok for the 1.5hp 230v well pump, thanks.



    What gauge size battery cable/wire should be used in this inverter?

    Dear Customer, you could use 120mm² cable if the cable length is in 10m, thanks.



    Will the battery charger work with li fe po4 batteries, lithium?

    Dear Customer, yes, it can. you could find the description of "battery type selector" in the manual, it's ok as long as your battery voltage is within that range, you could download the manual from the product page, thanks.

    What's Included?

    INCLUDED



    4000W DC 24V Split Phase Pure Sine Wave Inverter with Charger

    • This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.
    • The split-phase 4000-watt power inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
    • AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
    • Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.
    • Auto Gen Start: The inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.
