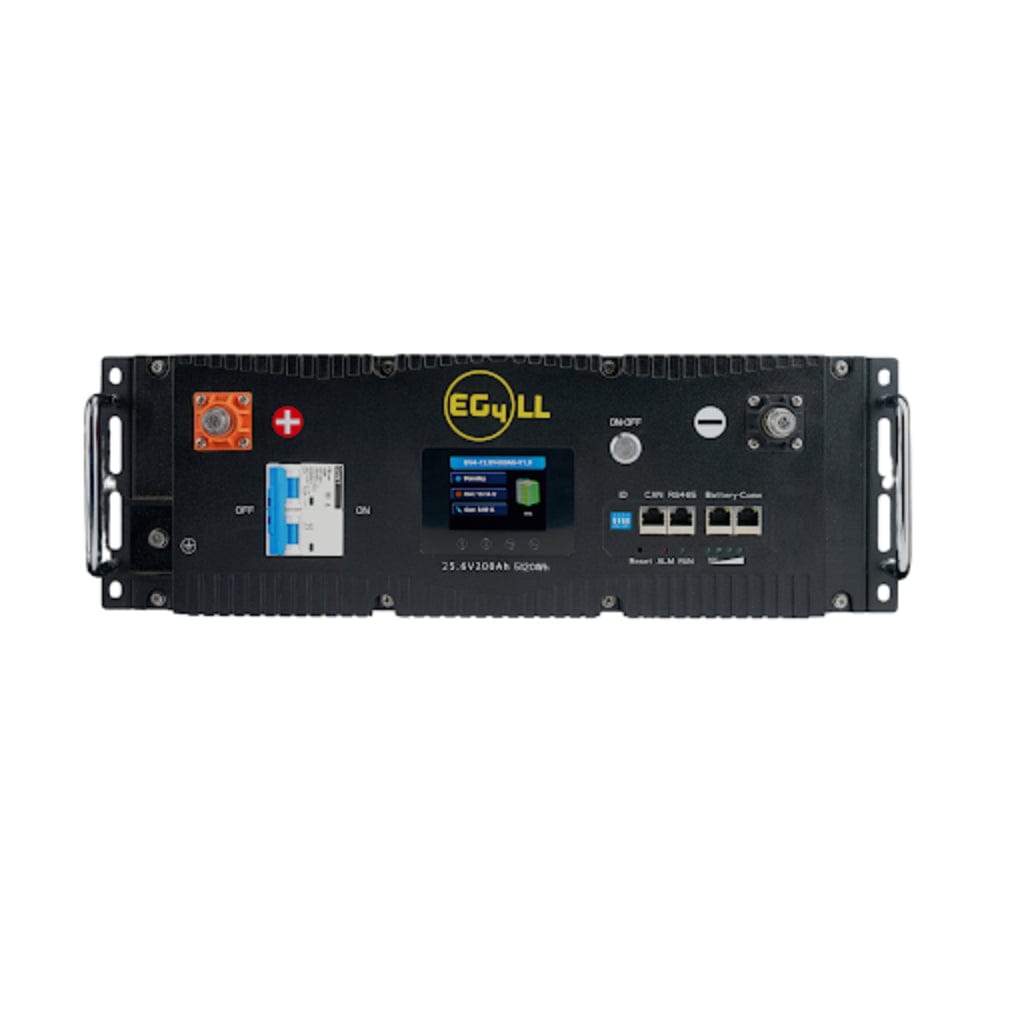

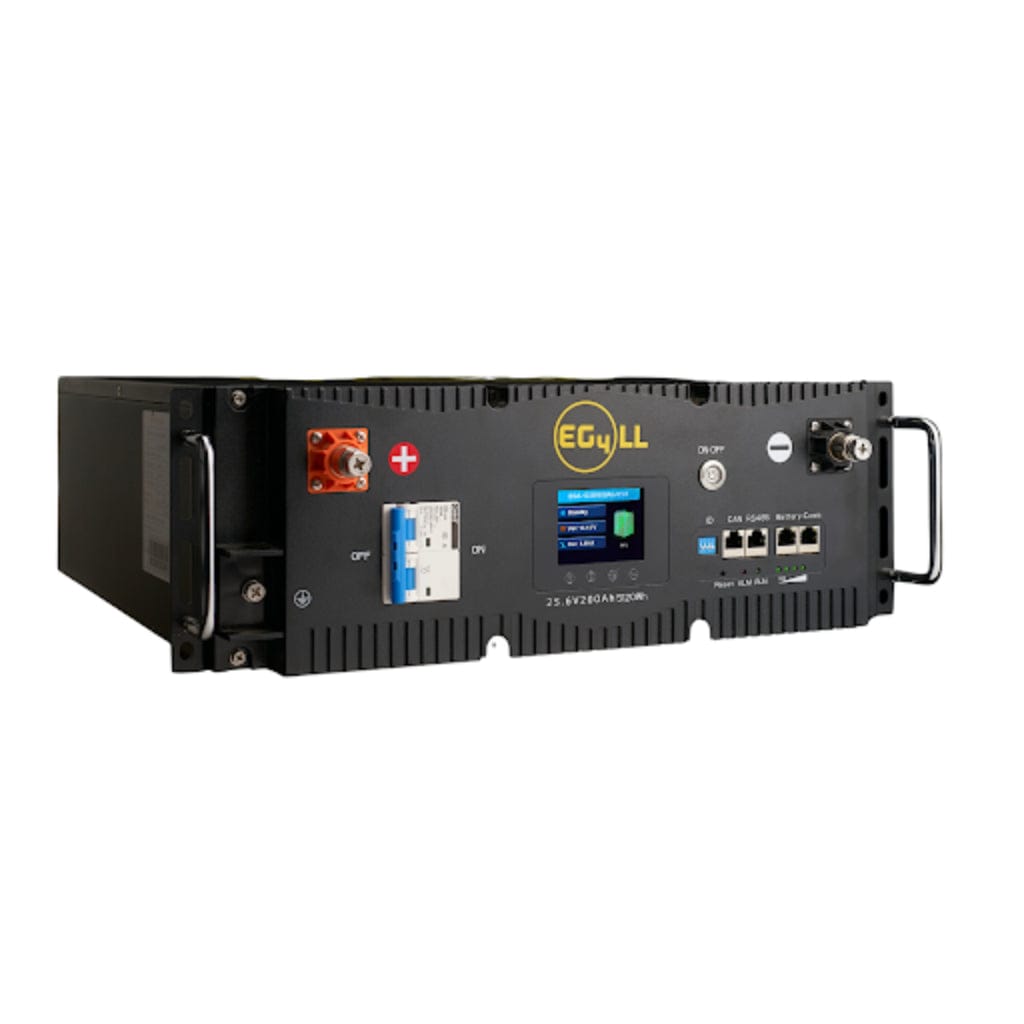

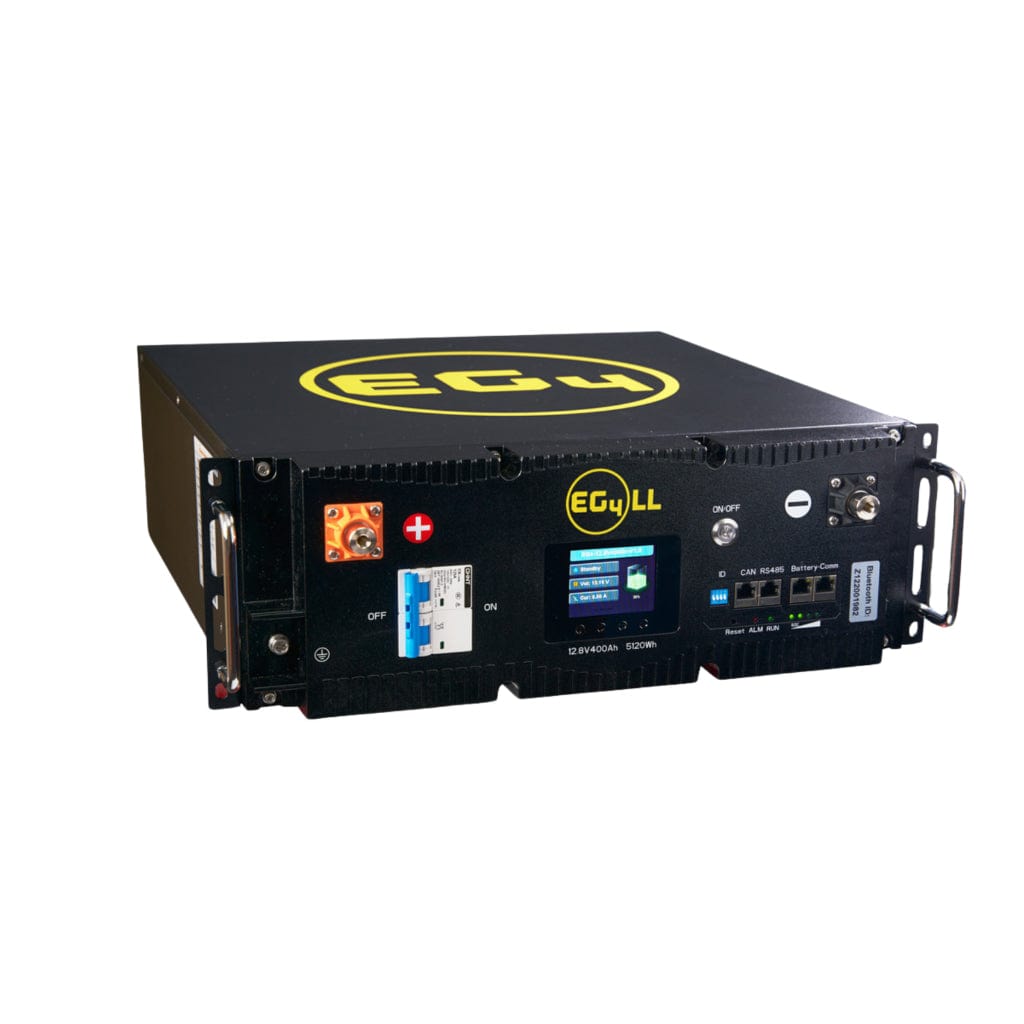

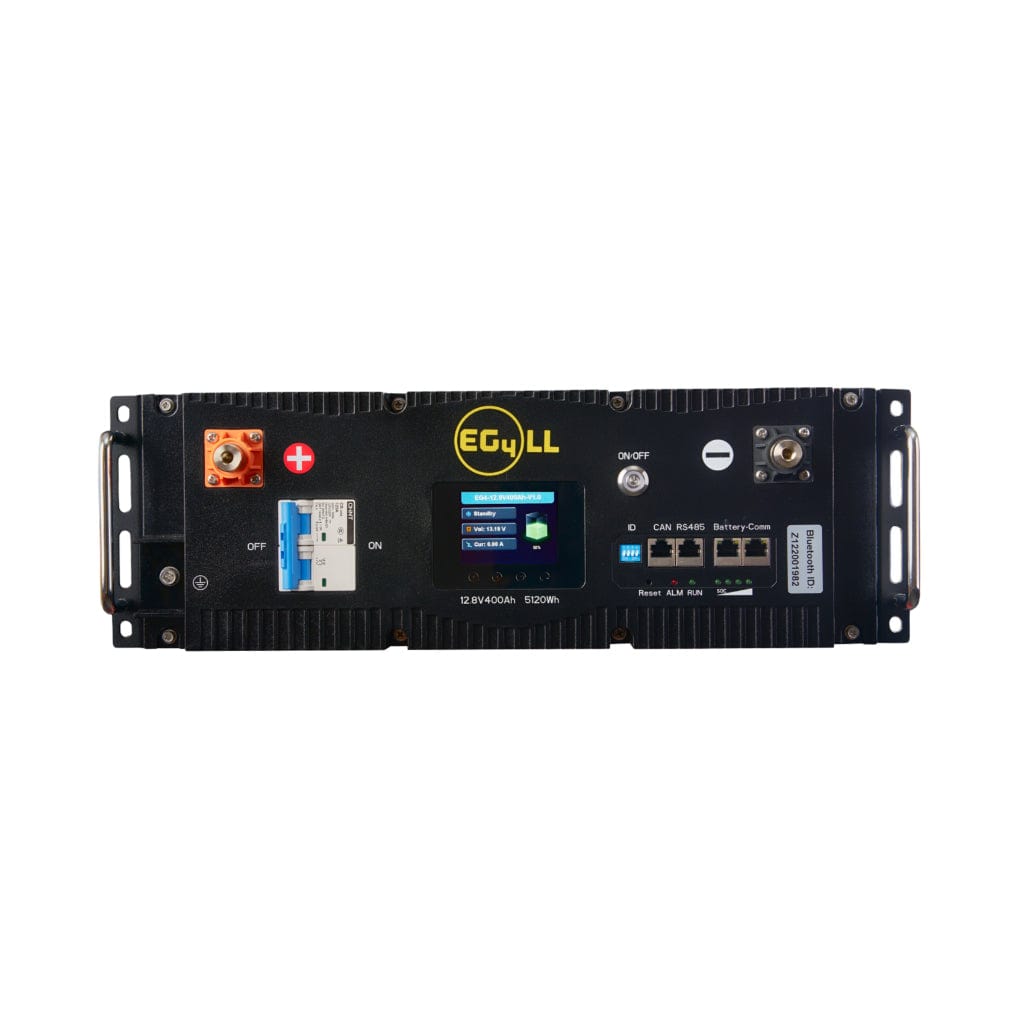

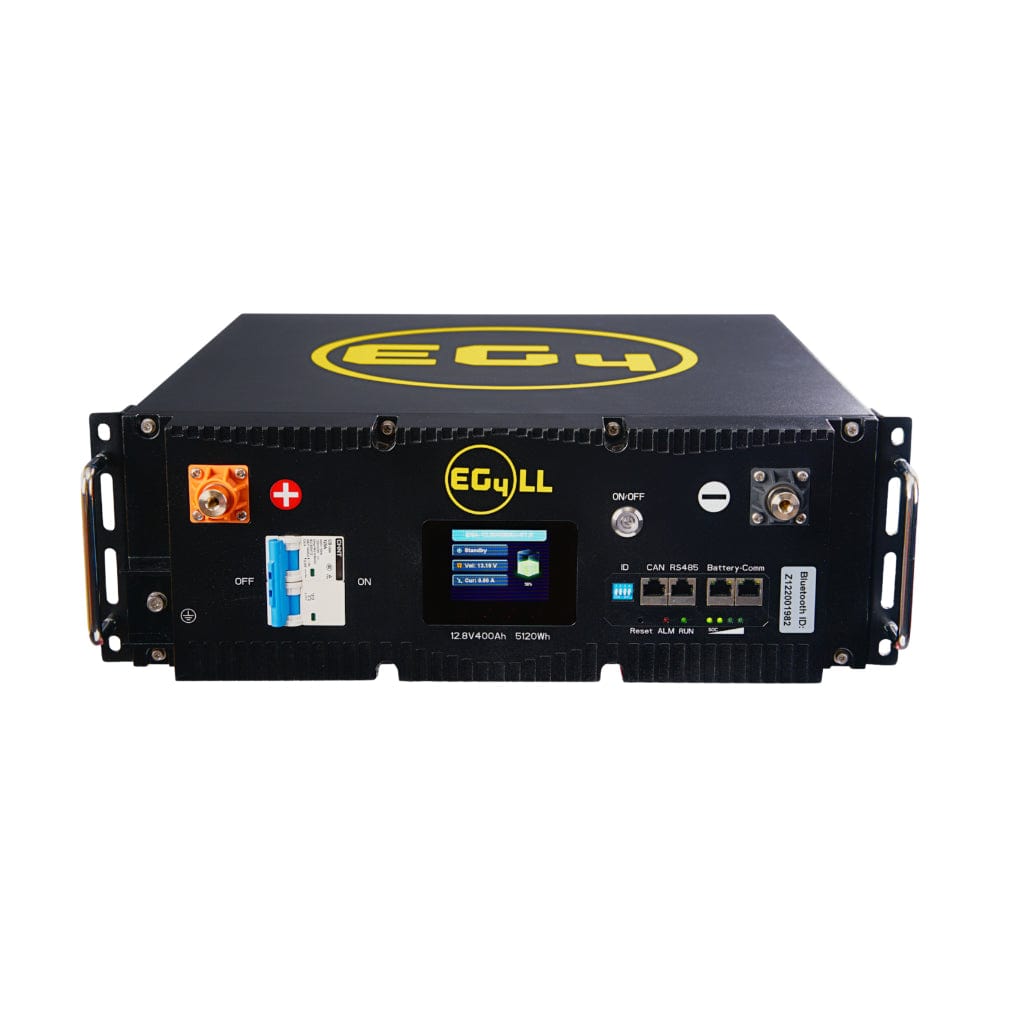

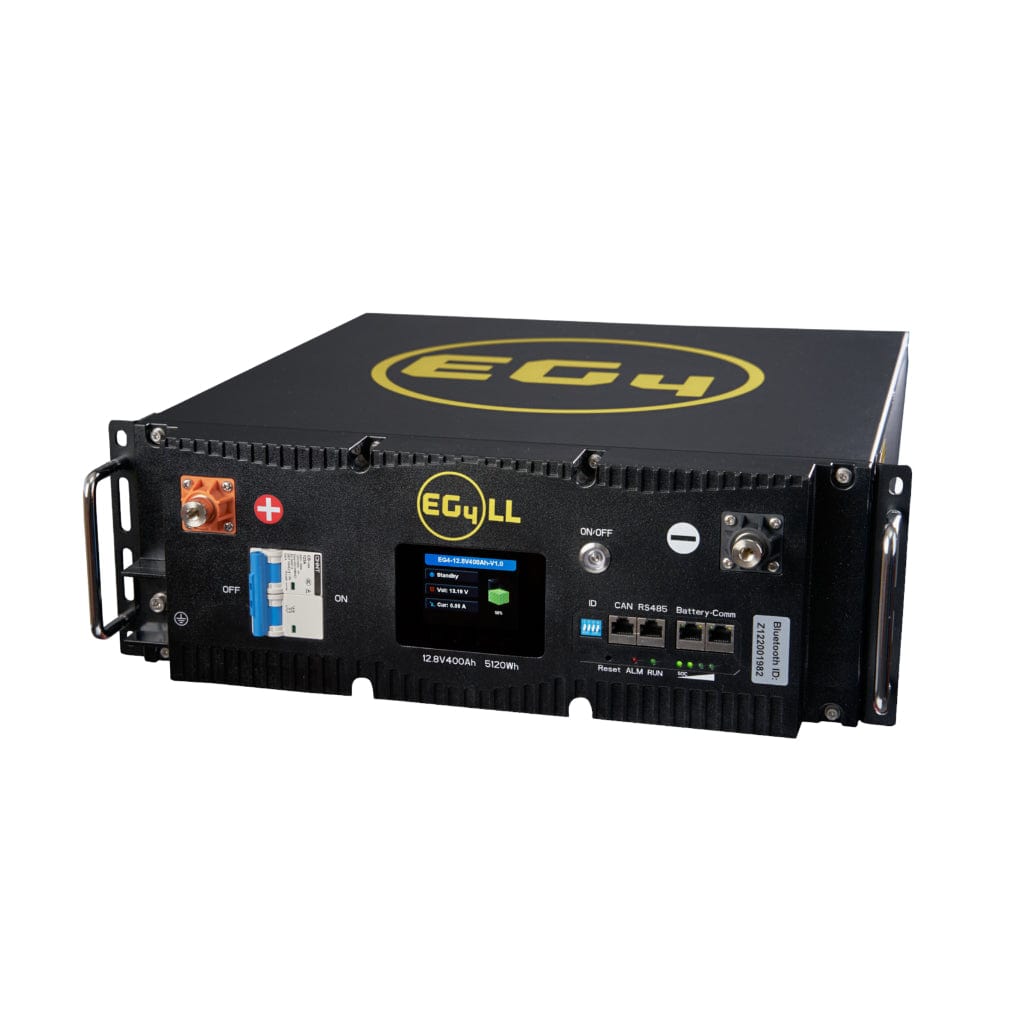

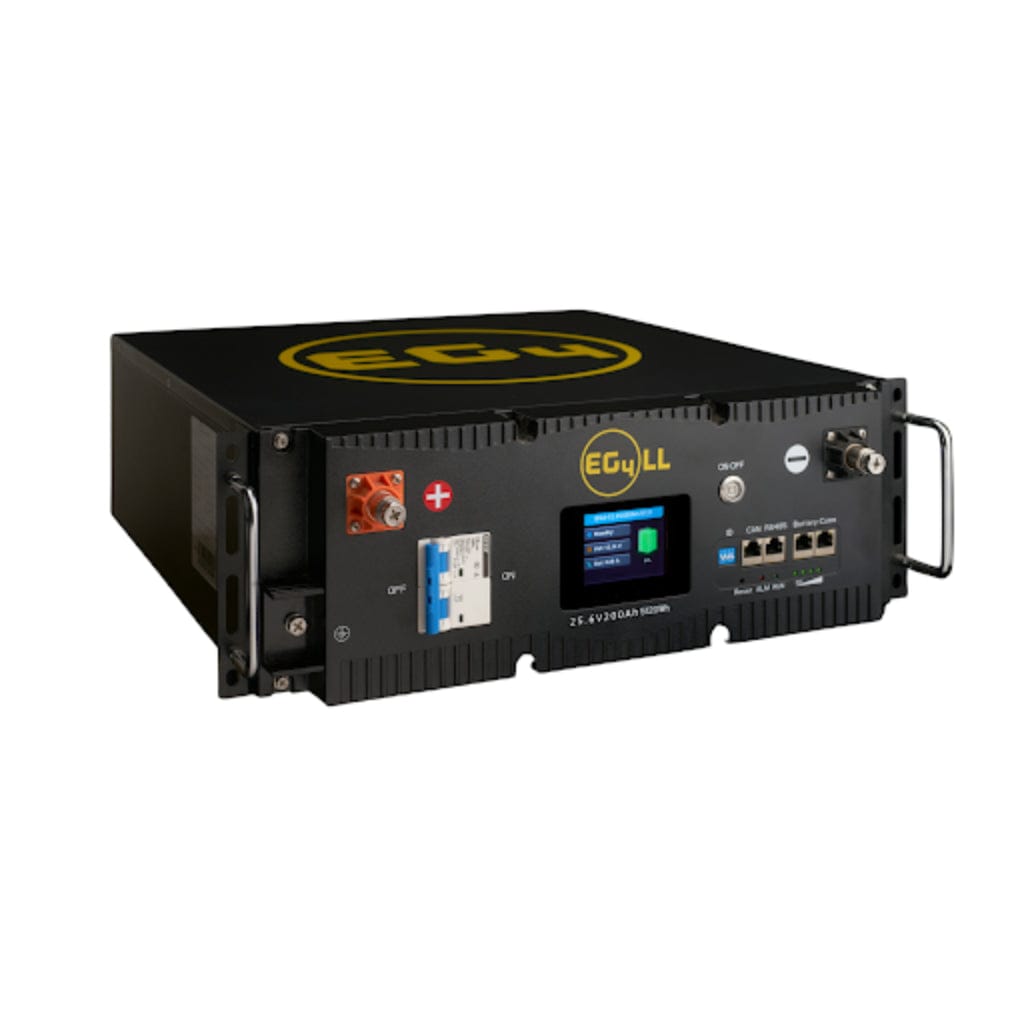

EG4 LL (V2) 12V / 24V Server Rack Battery | 400Ah / 200Ah | 5.12kWh | LiFePO4

EG4 LL (V2) 12V / 24V Server Rack Battery | 400Ah / 200Ah | 5.12kWh | LiFePO4

1511054

0 total reviews

Regular price
Price: $1,499.00
Regular price
$1,599.00
$1,499.00
Sale price
You Save: $100.00 (6%)

--You can save additional 3% OFF on top of all other discounts by paying via wire transfer or Zelle. Details at checkout--

Shipping & Returns

Shipping & Returns

Order Confirmation:

As soon as you place your order, you will receive a confirmation email. After that, we double-check if all items ordered are in stock and available for immediate shipment. If your order is available for the delivery within the advertised time frame, we will submit it for shipment to the warehouse. If the expected delivery time exceeds the advertised time frame, we'll reach out to you via email and/or phone to confirm the order.

Order Shipment:

Within 1-2 business day from the time the item has been shipped, you will receive an email confirmation with tracking number. If you would not receive tracking information within 6 business days of your order, feel free to follow up with us at support@epowerguys.com.

For LTL shipments, Free Shipping is Standard Curbside Delivery.

Curbside delivery is defined as delivery of the freight as close to the actual delivery address as possible. Please remember the size of the tractor trailer and certain safety precautions may prevent the freight carrier from delivering the freight at the actual curb or delivery address.

For addresses located on a cul-de-sac or dead-end street, curbside delivery is not guaranteed. In this case, the customer may need to meet the driver at the nearest intersection that the delivery truck can access.

In special cases, when the customer's address is in a high cost delivery area (e.g. remote suburbs or the center of a large city) an additional delivery fee may be required. This mainly applies to ZIP codes 10000-15000, and may also apply to some addresses in the New England Area (Connecticut, Maine, Massachusetts, New Hampshire, Rhode Island, and Vermont), Washington and Oregon.

Note - items heavier than 1,400 lbs may require delivery to a delivery dock or fork truck to unload them. Additional charges might apply.

To confirm the availability of Fee Shipping - Standard Curbside Delivery Option, please contact the ePowerGuys Team before placing your order.

Estimated Time of Arrival:

Our standard shipping out time for orders from our warehouse to the customer is 4-12 business days and most orders are shipped within 3-6 business days of placing the order. Custom-made products are usually shipped within 8-12 weeks. If the expected shipping date for your order would fall outside of the advertised 4-12 business day time frame, our customer service team will reach out to you to confirm if you are OK with that date.

Areas Covered:

All estimated delivery dates and shipping costs advertised on the website apply the Contiguous United States only. Please contact our customer service team to discuss the time and cost of shipping to Hawaii or Alaska. We don't ship directly to Canada, but we can ship your order to the freight carrier of your choice.

    Damages:

    It is very important that you inspect the packaging of your items and the items themselves when they arrive and check if you received all boxes listed on the delivery receipt.

    If you notice any damage or shortage of packages, you must make note of it on the bill of lading, take pictures, and REFUSE DELIVERY. Your note should say "refused due to damage". You must also take photos of all sides of the box and send them to us within 24 hours. If there are no damages visible before opening the box, you must note "subject to further inspection, may contain concealed damage".

    If a shipment with a damaged item is accepted by the recipient (even if the bill of lading would include information about the damage), we will not be able to offer you a replacement item or a refund for your order.

    After receiving the shipment and before unpacking the item, be sure to take photos of the packaging from all sides, even if there are no visible signs of damage - this is very important if after unpacking it turns out that the item has concealed damage and we would have to file a complaint with the carrier / manufacturer of the item.

    If you notice any damage after receiving the delivery, do not throw the box away, and contact us with the photos. After we receive information from you about the refused delivery or concealed damage, we immediately initiate a claim with the shipping company or with the manufacturer. After the claim is fully processed, we ship all replacements at absolutely no cost to you.

    Cancellations & Refunds:

    We can cancel your non-custom-made or non-made-to-order order at absolutely no cost to you before the shipping label or Bill of Lading has been created.

    Custom-made or made-to-order products are not eligible for refunds after the order and its conditions have been confirmed by the customer.

    Orders delivered outside the United States are not eligible for refunds.

    If your order arrived damaged, "Damages" section applies.

    To be eligible for a return, the item must be unused and in the same condition as you received it. It must also remain in the original packaging, and the packaging must be in a perfect condition. We do not charge restocking fees or return shipping fees. All eligible returns are 100% free.

    Our refund policy lasts 45 days. If 45 days have gone by since you received your item, unfortunately, we can’t offer you a refund.

    Before approving the return procedure for your item, we must receive photos of the unpacked product (on each side) and the product packed in the original packaging (on each side) - based on the photos received, we can assess whether the item is subject to the return procedure.

    If you want to return the ordered product, it has to be arranged in the same manner it arrived to you. For products delivered via LTL freight, it must be packed in its original packaging on a pallet and made available for pickup by our carrier within 45 days from the date the product was delivered to you, at the exact same location to which it was delivered.

    For products not shipped as LTL freight (e.g. via FedEx Ground / UPS / USPS), the product you wish to return must be packed in the original packaging and made available to the courier for pickup or dropped off at the local branch of the shipping company within 45 days of where the product was delivered to you.

    Please contact us at support@epowerguys.com before returning an item to discuss shipping details.

    Refunds

    We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.

    If more than 15 business days have passed since we’ve approved your return, please contact us at support@epowerguys.com.

    Lowest Price Guarantee

    We work very hard to ensure that we offer the absolute best prices online. If you find another legitimate online store that offers a lower prices on an identical item we stock (including shipping, tax, etc.), we will beat the competitor's price by 10% of the difference! Please see below for complete details.

    Please fill out the form below to find out if you qualify for the discount. In most cases you will receive a response within 1 business day.

    To request your 110% Best Price Guarantee simply email us a link to the same product on our website, or on our competitors' website.

    Our 110% Price Guarantee has some limitations:

    • Promotions such as rebates and buy one, get one free offer are not eligible
    • The item must be in stock on the competitors' website
    • The competitor must be an online store, they may not have a retail location
    • The website can not be a discounter or auction website (i.e.; eBay, overstock, etc..)
    • The competitor must be an Authorized Retailer of the product in question, and must not be violating advertising price agreements with the manufacturer
    • The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax

    There may be brands excluded from that offer. Please contact us for further information.

    VIP Extended Warranty - Why is it worth it?

    Top Reasons to Choose Our VIP Extended Warranty:

    • Guaranteed Repair or Replacement
      Comprehensive Coverage: If your unit encounters any issues, we'll repair it or simply send you a new or refurbished product of similar quality.
      Fast Resolutions: We prioritize quick service to minimize any inconvenience to you.
    • Zero Hidden Costs
      No Deductibles: You won’t pay anything extra when you need service.
      Transparent Terms: What you see is what you get—no surprises.
    • VIP Coverage for 1, 2, or 3 Years from the Date of Purchase
      Hassle-Free: Enjoy complete coverage for your purchase throughout the entire warranty period with no additional costs.
      No Unnecessary Questions: We make the process smooth and straightforward.

    Exceptional Benefits:

    • Extended Protection Options
      Flexible Terms: Choose coverage for 1, 2, or 3 years based on your needs.
      Beyond Manufacturer’s Warranty: Enjoy additional protection that surpasses the Manufacturer's Warranty.
    • Covers Normal Wear and Tear
      Real-World Use: We cover breakdowns from everyday use, not just defects.
      Power Surge Protection: Includes mechanical or electrical failures caused by power surges.
    • Dedicated Support Team
      Expert Assistance: Our technical support team is always ready to help.
      Easy Communication: Reach us via phone or email for prompt service.

    Why This Warranty is a Smart Investment:

    • Protect Your Investment
      Avoid Unexpected Costs: Save potentially hundreds on repairs or replacements.
      Long-Term Savings: The warranty pays for itself with just one claim.
    • Peace of Mind
      Stress-Free Ownership: Use your product without worrying about potential issues.
      Reliable Service: Trust that we have you covered, no matter what happens.
    • Easy and Efficient Claims Process
      Simple Steps: Provide photos or videos of the issue—no complicated paperwork.
      Quick Turnaround: We work swiftly to resolve your claims.

    Effortless Claim Process:

    • Document the Issue
      Snap a photo or record a video of the problem.
    • Contact Us
      Email: support@epowerguys.com
      Phone:  +1 (888) 556-5886
    • Quick Troubleshooting
      Our team will help identify simple fixes or confirm if a replacement is needed.
    • Receive Replacement
      If necessary, we'll guide you through receiving and installing your replacement component.

    What the VIP Extended Warranty Does Not Cover:

    1. Manufacturer's Warranty or Recalls: Repairs covered by the manufacturer's warranty or recalls.
    2. Unauthorized Service: Damage caused by unauthorized service or parts.
    3. Extraordinary Events: Loss or damage from events like invasion, rebellion, riots, acts of god, strikes, or civil disturbances.
    4. Additional Costs: Costs for installation, setup, or diagnostic services unless specified, return shipping fees.

      Eligible Products:

      1. Solar Panels
      2. Inverters
      3. Batteries
      4. Portable Power Stations

          Contact Us Anytime:

          ePowerGuys
          30 N Gould St, Ste 24751
          Sheridan, WY 82801
          Email: support@epowerguys.com
          Phone: +1 (888) 556-5886

          Invest in Peace of Mind:

          The VIP Extended Warranty isn’t just a service; it’s a commitment to your long-term satisfaction. Protect your valuable solar and power solutions today and enjoy stress-free ownership for years to come!

          Experience outstanding performance and longevity with the enhanced EG4-LL Lithium Battery V2 12V / 24V configurations. Designed to withstand over 7,000 deep charge and discharge cycles at 80% Depth of Discharge (DoD), this battery ensures reliable power delivery for over 15 years. With a storage capacity of 5.12 kWh and a built-in BMS supporting 200A charge and discharge capabilities. Both are reliable and energy-efficient, boasting a remarkable 99% operating efficiency.



          Safety is a top priority, with dual onboard fire arrestors included for high-risk environments. Monitoring is made simple with Bluetooth integration for real-time statistics via a customized app and PC software, as well as an onboard LCD touchscreen for easy access to critical information. The battery also supports selectable closed-loop communication with various inverter brands, including Victron and EG4, and allows for parallel connections of up to 16 batteries, providing up to 81.9 kWh of power while maintaining seamless BMS communication.



          EG4-LL Lithium Battery V2 12V / 24V features a user-friendly, plug-and-play interface for straightforward setup, with all essential components included. Each battery comes with a 1-foot RS485 communication cable and parallel cables, and for every six batteries purchased, an RS485 USB battery communication cable is provided and shipped separately. Backed by a 10-year warranty, this battery offers a dependable and efficient solution for your energy storage needs.



          EG4 offers 5 models of LiFePO4 WallMount and Server Rack Battery:



          CA Residents: See Prop 65 Warning



          Features

          Long-Lasting Performance
          Rated for 7,000 deep charge and discharge cycles with a 15-year lifespan at 80% Depth of Discharge (DoD) daily, and designed for up to 20 years of use.



          High-Quality Cell Composition
          Built with Tier One, A+ LiFePo4 16-cell pack, boasting 99% efficiency for optimal energy density in a server rack battery form factor.



          Advanced Inverter Compatibility
          Supports selectable closed-loop communications with inverters, including Victron and EG4, ensuring seamless integration.



          Safety First
          Equipped with dual onboard automatic fire arrestors, providing failsafe operation in high-risk environments and protection against rare hardware failures in high-voltage solar charge controllers.



          Scalable Power
          Parallel up to 16 batteries for a maximum power capacity of 80kWh, while maintaining reliable BMS communications.



          Performance Components
          Features a reliable built-in EG4 Smart BMS for voltage, current, temperature, and health management, along with stress-free battery bank expansion capacity.



          Comprehensive Protection
          Includes cell and module voltage protection, short circuit protection (>775A <0.1ms), and temperature protection (-4°F to 167°F).



          Low Power Consumption
          Operating power consumption is less than 14mA, ensuring efficient energy usage.



          User-Friendly Interface
          Comes with an onboard LCD screen, PC monitoring software, and lifetime firmware updates for advanced configurability.



          Tested Reliability
          Designed, optimized, and tested by EG4's R&D Solar Laboratory in Texas, featuring dual onboard fire arrestors for added safety.



          Environmentally Friendly
          Lead-free design that prioritizes sustainability.



          10-Year Warranty
          Supported and serviced in Texas, offering peace of mind with long-term coverage.

          Weight and Dimensions

          EG4 LL (V2) 12V 400Ah Server Rack Battery

          Weight (lbs) 98.1
          Dimensions
          Height Width Depth
          6.1" 19"  20.2"



          G4 LL (V2) 24V 200Ah ServerRack Battery

          Weight (lbs) 99.2
          Dimensions
          Height Width Depth
          6.1" 19" 20.2"

          Specifications

          EG4 LL (V2) 12V 400Ah Server Rack Battery

          MODULE OPERATING PARAMETERS

          Voltage 25.6V
          Capacity 200Ah
          Charging Voltage (Bulk/Absorb) 28.1V (+/-0.2V)
          Float 27.0V (+/-0.2V)
          SOC Cutoff 20%
          Charging Current 200A (Max. Continuous)
          Discharging Current 200A (Max. Continuous)



          ENVIRONMENTAL PARAMETERS

          Charging Range 32°F - 113°F (0°C to 45°C)
          Discharging Range -4°F - 122°F (-20°C - 50°C)
          Storage Range -4°F - 122°F (-20°C - 50°C)
          Ingress Protection IP20



          BMS PARAMETERS

          CHARGE SPEC DELAY RECOVERY
          Cell Voltage Protection 3.8V 1s 3.45V
          Module Voltage Protection 15.0V 1s 13.8V
          Over Charging Current 1 >220A 10s -
          Over Charging Current 2 ≥250A 3s -
          Temperature Protection <23°F or >167°F
          <-5°C or >75°C
          1s <41°F or >149°F
          >5°C or 65°C
          DISCHARGE
          Cell Voltage Protection 2.3V 1s 3.1V
          Module Voltage Protection 9.6V 1s 12.0V
          Over Charging Current 1 >220A 30s 60s
          Over Charging Current 2 >380A 3s 60s
          Short-Circuit >775A <0.1mS -
          Temperature Protection <-4°F or >167°F
          <-20°C or >75°C
          1s >14°F or <149°F
          >-10°C or <65°C
          PCB Temp Protection >221°F (>105°C) 1s <176°F (<80°C)



          GENERAL SPECIFICATIONS

          PARAMETER SPEC CONDITION
          Cell Balance 120mA Passive Balance Cell Voltage
          Difference >40mV
          Temperature Accuracy 3% Cycle Measurement Measuring Range
          -40°F ‒ 212°F
          (-40°C ‒ 100°C)
          Voltage Accuracy 0.5% Cycle Measurement For Cells/Module
          Current Accuracy 3% Cycle Measurement Measurement Range
          +/-200A
          SOC 5% Integral Calculation
          Power Consumption (Sleep & Off Mode) <300uA Storage/Transport
          Power Consumption (Operating) <20mA Charging/Discharging
          Communication Ports RS485/CAN Customizable
          Bluetooth Monitoring Customized EG4 App -
          Maximum Modules in Parallel 16 -
          Dimension (H×W×D) 6.1 in.×19 in.×20.2 in. (15.5 cm×48.2 cm×51.3 cm) -
          Weight 99.2 lbs. (44.5 kg) -

          *EG4 recommends this value be set no lower than 20% to maintain the recommended 80% depth of discharge.



          EG4 LL (V2) 24V 200Ah Server Rack Battery

          MODULE OPERATING PARAMETERS

          Voltage 25.6V
          Capacity 200Ah
          Charging Voltage (Bulk/Absorb) 28.1V (+/-0.2V)
          Float 27.0V (+/-0.2V)
          SOC Cutoff 20%
          Charging Current 200A (Max. Continuous)
          Discharging Current 200A (Max. Continuous)



          ENVIRONMENTAL PARAMETERS

          Charging Range 32°F - 113°F (0°C to 45°C)
          Discharging Range -4°F - 122°F (-20°C - 50°C)
          Storage Range -4°F - 122°F (-20°C - 50°C)
          Ingress Protection IP20



          BMS PARAMETERS

          CHARGE SPEC DELAY RECOVERY
          Cell Voltage Protection 3.9V 1s 3.45V
          Module Voltage Protection 30.0V 1s 28.8V
          Over Charging Current 1 >102A 10s -
          Over Charging Current 2 ≥120A 3s -
          Temperature Protection <23°F or >158°F
          <-5°C or >70°C
          1s <32°F or >140°F
          >0°C or <60°C
          DISCHARGE
          Cell Voltage Protection 2.3V 1s 3.1V
          Module Voltage Protection 20.8V 1s 22.4V
          Over Charging Current 1 >102A 10s 60s
          Over Charging Current 2 >150A 3s 60s
          Short-Circuit >250A <0.1mS -
          Temperature Protection <-4°F or >167°F
          <-20°C or >75°C
          1s >14°F or <149°F
          >-10°C or <65°C
          PCB Temp Protection >221°F (>105°C) 1s <176°F (<80°C)



          GENERAL SPECIFICATIONS

          PARAMETER SPEC CONDITION
          Cell Balance 100mA Passive Balance Cell Voltage
          Difference >40mV
          Temperature Accuracy 3% Cycle Measurement Measuring Range
          -40°F ‒ 212°F
          (-40°C ‒ 100°C)
          Voltage Accuracy 0.5% Cycle Measurement For Cells/Module
          Current Accuracy 3% Cycle Measurement Measurement Range
          +/-200A
          SOC 5% Integral Calculation
          Power Consumption (Sleep & Off Mode) <300uA Storage/Transport/Standby
          Power Consumption (Operating) <14mA Charging/Discharging
          Communication Ports RS485/CAN Customizable
          Maximum Modules in Parallel 16 -
          Dimension (H×W×D) 6.1 in.×19 in.×20.2 in. (15.5 cm×48.2 cm×51.3 cm) -
          Weight 98.1 lbs. (44.5 kg) -

          *EG4 recommends this value be set no lower than 20% to maintain the recommended 80% depth of discharge.

          What's Included?

          INCLUDED
          EG4 LL (V2) 12V / 24V Server Rack Battery | 400Ah / 200Ah | 5.12kWh | LiFePO4

          1x EG4 LL V2 12V 400Ah Lithium Battery

          • 12V
          • 400Ah
          • 5.12kWh LiFePO4
          • Server Rack Battery


          OPTIONAL
          EG4 LL (V2) 12V / 24V Server Rack Battery | 400Ah / 200Ah | 5.12kWh | LiFePO4

          1x EG4 LL V2 24V 200Ah Lithium Battery

          • 24V
          • 200Ah
          • 5.12kWh LiFePO4
          • Server Rack Battery

          Accessories

          OPTIONAL

          EG4 6-Slot Battery Rack

          • Enclosed Cabinet Design
          • Heavy Duty Steel
          • With Removable Casters
          • Price $598.99

          EG4 Battery Charger

          • Exclusively Compatible For EG4 LL (V2) 24V Server Rack Battery 200Ah LiFePO4 Battery Only
          • 12V
          • 15A
          • 120V Input Voltage
          • Overvoltage Protection
          • Price $188.99

          Warranty

          • 10-Year Warranty
          • EG4 LLS Battery Warranty Information Sheet - Download

          Videos



          Downloads

          • EG4-LL Lithium Battery 12V Specification Sheet - Download
          • EG4-LL Lithium Battery 24V Specification Sheet - Download
          • EG4-LL Lithium Battery 12V / 24V User Manual V2.0.3 - Download
          • EG4-LL Lithium Battery 12V / 24V Installing With Other Batteries - Download
          • EG4-LL Lithium Battery 12V / 24V BMS Tools V1.0 RS232 Connection Guide - Download
          • EG4-LL Lithium Battery 12V / 24V BMS Tools V1.0 RS485 Connection Guide - Download
          • EG4-LL Lithium Battery 12V / 24V Cables Needed For Updating EG4 Batteries Categorized - Download
          • EG4-LL Lithium Battery 12V / 24V BMS Tools Setup - Download
          • EG4-LL Lithium Battery 12V / 24V BMS Tools Setup Spanish - Download

          Get in touch with us

          Text or Call : 888-556-5886 or simply start a live chat with our experts.

          Average response time is 39 seconds. We are open 7 days a Week; 8:00 AM - 8:00 PM EST

          support@epowerguys.com

          6 Reasons Why Clients Recommend Us:

          Collapsible content

          FREE SHIPPING

          On all orders over $200

          110% LOWEST PRICE GUARANTEE

          We will beat the competitors' price. With us, you buy knowing you get the best deal

          FREE RETURNS (FOR REAL!)

          For all eligible returns, we DO NOT charge any shipping fees or restocking fees.

          BIGGEST SELECTION AVAILABLE ONLINE

          We work with the best Manufacturers on the market. If competition has it out of stock, we will get it for you.

          REAL PEOPLE HERE TO HELP

          Our Customer Service team is here for you 7 days a week. You will always get customized help and assistance.

          SAFE & SECURE ORDERING

          Secure checkout on a website ensures that your personal and payment information is encrypted and protected during the transaction.

          • Live Chat Support

            or call 888-556-5886

          • No Restocking Fees

            $0 Restocking Fees

          • No Sales Tax

            $0 Sales Tax!
