MRCOOL

MRCOOL DIY OuttaSight Series 18K BTU Ceiling Cassette | 21.8 SEER | 12.5 EER | Multi Zone Compatible

MRCOOL DIY OuttaSight Series 18K BTU Ceiling Cassette | 21.8 SEER | 12.5 EER | Multi Zone Compatible

DIYCASSETTE18HP-230C25

Regular price
Price: $2,517.90
Regular price
$2,517.90
Sale price

--You can save additional 3% OFF on top of all other discounts by paying via wire transfer or Zelle. Details at checkout--

Shipping & Returns

Shipping & Returns

Order Confirmation:

As soon as you place your order, you will receive a confirmation email. After that, we double-check if all items ordered are in stock and available for immediate shipment. If your order is available for the delivery within the advertised time frame, we will submit it for shipment to the warehouse. If the expected delivery time exceeds the advertised time frame, we'll reach out to you via email and/or phone to confirm the order.

Order Shipment:

Within 1-2 business day from the time the item has been shipped, you will receive an email confirmation with tracking number. If you would not receive tracking information within 6 business days of your order, feel free to follow up with us at support@epowerguys.com.

For orders over $500.00 we offer Free Shipping (within the continental US). For orders under $500.00 a Shipping & Handling fee of $49.99 will be applied.

For LTL shipments, Free Shipping is Standard Curbside Delivery.

Curbside delivery is defined as delivery of the freight as close to the actual delivery address as possible. Please remember the size of the tractor trailer and certain safety precautions may prevent the freight carrier from delivering the freight at the actual curb or delivery address.

Curbside delivery is not guaranteed for addresses located on a cul-de-sac, dead-end street or dirt road. In this case, the customer may need to meet the driver at the nearest intersection / paved street that the delivery truck can access.

In special cases, when the customer's address is in a high cost delivery area (e.g. remote suburbs or the center of a large city) Free Shipping is not guaranteed and an additional delivery fee may be required. This mainly applies to ZIP codes 10000-15000, and may also apply to some addresses in the New England Area (Connecticut, Maine, Massachusetts, New Hampshire, Rhode Island, and Vermont), Washington and Oregon.

Note - items heavier than 1,400 lbs may require delivery to a delivery dock or fork truck to unload them. Additional charges might apply.

To confirm the availability of Fee Shipping - Standard Curbside Delivery Option, please contact the ePowerGuys Team before placing your order.

Estimated Time of Arrival:

Our standard shipping out time for orders from our warehouse to the customer is 4-12 business days and most orders are shipped within 3-6 business days of placing the order. Custom-made products are usually shipped within 8-12 weeks. If the expected shipping date for your order would fall outside of the advertised 4-12 business day time frame, our customer service team will reach out to you to confirm if you are OK with that date.

Areas Covered:

All estimated delivery dates and shipping costs advertised on the website apply the Contiguous United States only. Please contact our customer service team to confirm the possibility, time and cost of shipping to Hawaii / Alaska / Puerto Rico. We don't ship directly to Canada, but we can ship your order to the freight forwarder of your choice.

    Damages:

    It is very important that you inspect the packaging of your items and the items themselves when they arrive and check if you received all boxes listed on the delivery receipt.

    If you notice any damage or shortage of packages, you must make note of it on the bill of lading, take pictures, and REFUSE DELIVERY. Your note should say "refused due to damage". You must also take photos of all sides of the box and send them to us within 24 hours. If there are no damages visible before opening the box, you must note "subject to further inspection, may contain concealed damage".

    If a shipment with a damaged item is accepted by the recipient (even if the bill of lading would include information about the damage), we will not be able to offer you a replacement item or a refund for your order.

    After receiving the shipment and before unpacking the item, be sure to take photos of the packaging from all sides, even if there are no visible signs of damage - this is very important if after unpacking it turns out that the item has concealed damage and we would have to file a complaint with the carrier / manufacturer of the item.

    If you notice any damage after receiving the delivery, do not throw the box away, and contact us with the photos. After we receive information from you about the refused delivery or concealed damage, we immediately initiate a claim with the shipping company or with the manufacturer. After the claim is fully processed, we ship all replacements at absolutely no cost to you.

    Cancellations & Refunds:

    We can cancel your non-custom-made or non-made-to-order order at absolutely no cost to you before the shipping label or Bill of Lading has been created.

    Custom-made or made-to-order products are not eligible for refunds after the order and its conditions have been confirmed by the customer.

    Orders delivered outside the continental United States are not eligible for returns or refunds. In the event that an order shipped outside of the continental US needs to be returned for warranty service, you will be responsible for the cost of shipping the item to the designated location within the continental US.

    Any additional delivery options that go beyond the standard Free Shipping such as high cost delivery area fee / expedited delivery / to the garage delivery / inside delivery / white glove delivery etc. are non-refundable.

    If your order arrived damaged, "Damages" section applies.

    To be eligible for a return, the item must be unused and in the same condition as you received it. It must also remain in the original packaging, and the packaging must be in a perfect condition. We do not charge restocking fees or return shipping fees. All eligible returns are 100% free.

    Our refund policy lasts 45 days. If 45 days have gone by since you received your item, unfortunately, we can’t offer you a refund.

    Before approving the return procedure for your item, we must receive photos of the unpacked product (on each side) and the product packed in the original packaging (on each side) - based on the photos received, we can assess whether the item is subject to the return procedure.

    If you want to return the ordered product, it has to be arranged in the same manner it arrived to you. For products delivered via LTL freight, it must be packed in its original packaging on a pallet and made available for pickup by our carrier within 45 days from the date the product was delivered to you, at the exact same location to which it was delivered.

    For products not shipped as LTL freight (e.g. via FedEx Ground / UPS / USPS), the product you wish to return must be packed in the original packaging and made available to the courier for pickup or dropped off at the local branch of the shipping company within 45 days of where the product was delivered to you.

    Please contact us at support@epowerguys.com before returning an item to discuss shipping details.

    Refunds

    We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.

    If more than 15 business days have passed since we’ve approved your return, please contact us at support@epowerguys.com.

    Lowest Price Guarantee

    We work very hard to ensure that we offer the absolute best prices online. If you find another legitimate online store that offers a lower prices on an identical item we stock (including shipping, tax, etc.), we will beat the competitor's price by 10% of the difference! Please see below for complete details.

    Please fill out the form below to find out if you qualify for the discount. In most cases you will receive a response within 1 business day.

    To request your 110% Best Price Guarantee simply email us a link to the same product on our website, or on our competitors' website.

    Our 110% Price Guarantee has some limitations:

    • Promotions such as rebates and buy one, get one free offer are not eligible
    • The item must be in stock on the competitors' website
    • The competitor must be an online store, they may not have a retail location
    • The website can not be a discounter or auction website (i.e.; eBay, overstock, etc..)
    • The competitor must be an Authorized Retailer of the product in question, and must not be violating advertising price agreements with the manufacturer
    • The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax

    There may be brands excluded from that offer. Please contact us for further information.

    VIP Extended Warranty - Why is it worth it?

    Top Reasons to Choose Our VIP Extended Warranty:

    • Guaranteed Repair or Replacement
      Comprehensive Coverage: If your unit encounters any issues, we'll repair it or simply send you a new or refurbished product of similar quality.
      Fast Resolutions: We prioritize quick service to minimize any inconvenience to you.
    • Zero Hidden Costs
      No Deductibles: You won’t pay anything extra when you need service.
      Transparent Terms: What you see is what you get—no surprises.
    • VIP Coverage for 1, 2, or 3 Years from the Date of Purchase
      Hassle-Free: Enjoy complete coverage for your purchase throughout the entire warranty period with no additional costs.
      No Unnecessary Questions: We make the process smooth and straightforward.

    Exceptional Benefits:

    • Extended Protection Options
      Flexible Terms: Choose coverage for 1, 2, or 3 years based on your needs.
      Beyond Manufacturer’s Warranty: Enjoy additional protection that surpasses the Manufacturer's Warranty.
    • Covers Normal Wear and Tear
      Real-World Use: We cover breakdowns from everyday use, not just defects.
      Power Surge Protection: Includes mechanical or electrical failures caused by power surges.
    • Dedicated Support Team
      Expert Assistance: Our technical support team is always ready to help.
      Easy Communication: Reach us via phone or email for prompt service.

    Why This Warranty is a Smart Investment:

    • Protect Your Investment
      Avoid Unexpected Costs: Save potentially hundreds on repairs or replacements.
      Long-Term Savings: The warranty pays for itself with just one claim.
    • Peace of Mind
      Stress-Free Ownership: Use your product without worrying about potential issues.
      Reliable Service: Trust that we have you covered, no matter what happens.
    • Easy and Efficient Claims Process
      Simple Steps: Provide photos or videos of the issue—no complicated paperwork.
      Quick Turnaround: We work swiftly to resolve your claims.

    Effortless Claim Process:

    • Document the Issue
      Snap a photo or record a video of the problem.
    • Contact Us
      Email: support@epowerguys.com
      Phone:  +1 (888) 556-5886
    • Quick Troubleshooting
      Our team will help identify simple fixes or confirm if a replacement is needed.
    • Receive Replacement
      If necessary, we'll guide you through receiving and installing your replacement component.

    What the VIP Extended Warranty Does Not Cover:

    1. Manufacturer's Warranty or Recalls: Repairs covered by the manufacturer's warranty or recalls.
    2. Unauthorized Service: Damage caused by unauthorized service or parts.
    3. Extraordinary Events: Loss or damage from events like invasion, rebellion, riots, acts of god, strikes, or civil disturbances.
    4. Additional Costs: Costs for installation, setup, or diagnostic services unless specified, return shipping fees.

      Eligible Products:

      1. Solar Panels
      2. Inverters
      3. Batteries
      4. Portable Power Stations

          Contact Us Anytime:

          ePowerGuys
          30 N Gould St, Ste 24751
          Sheridan, WY 82801
          Email: support@epowerguys.com
          Phone: +1 (888) 556-5886

          Invest in Peace of Mind:

          The VIP Extended Warranty isn’t just a service; it’s a commitment to your long-term satisfaction. Protect your valuable solar and power solutions today and enjoy stress-free ownership for years to come!

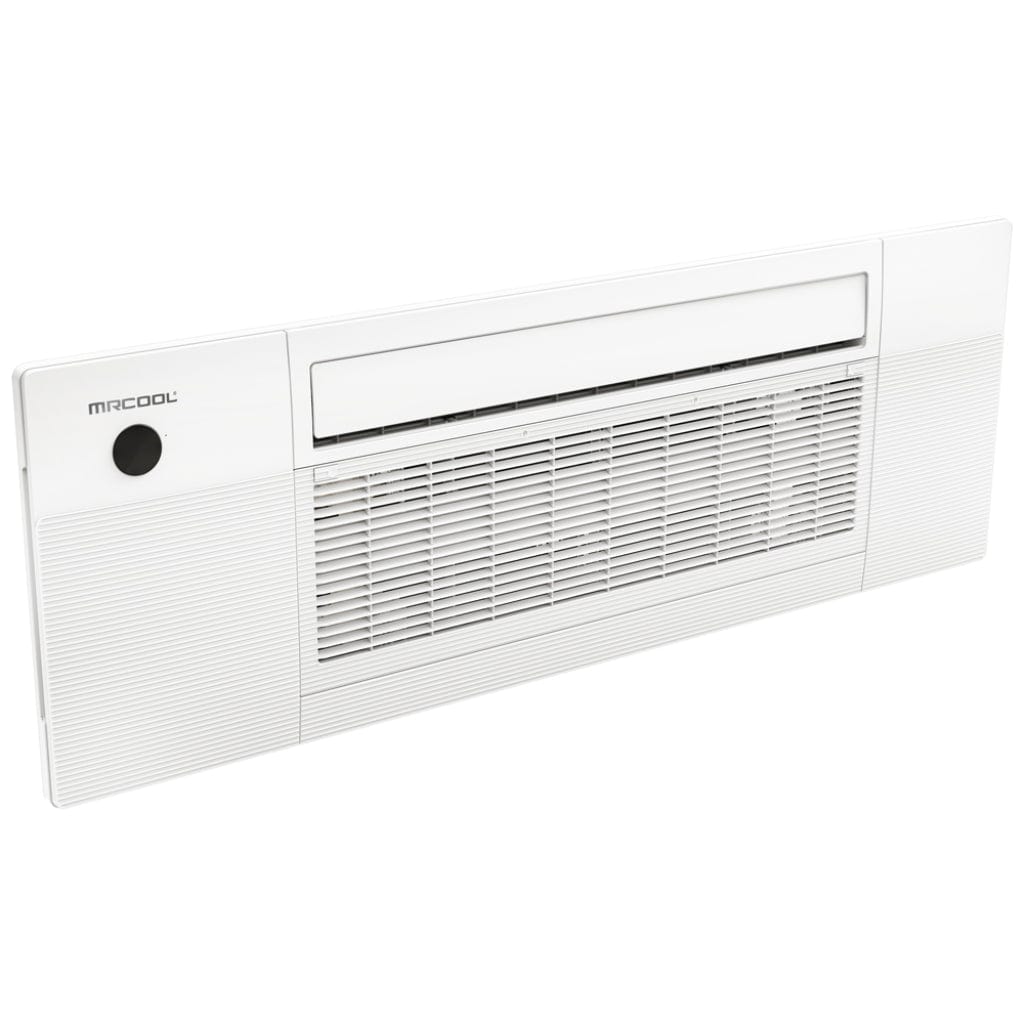

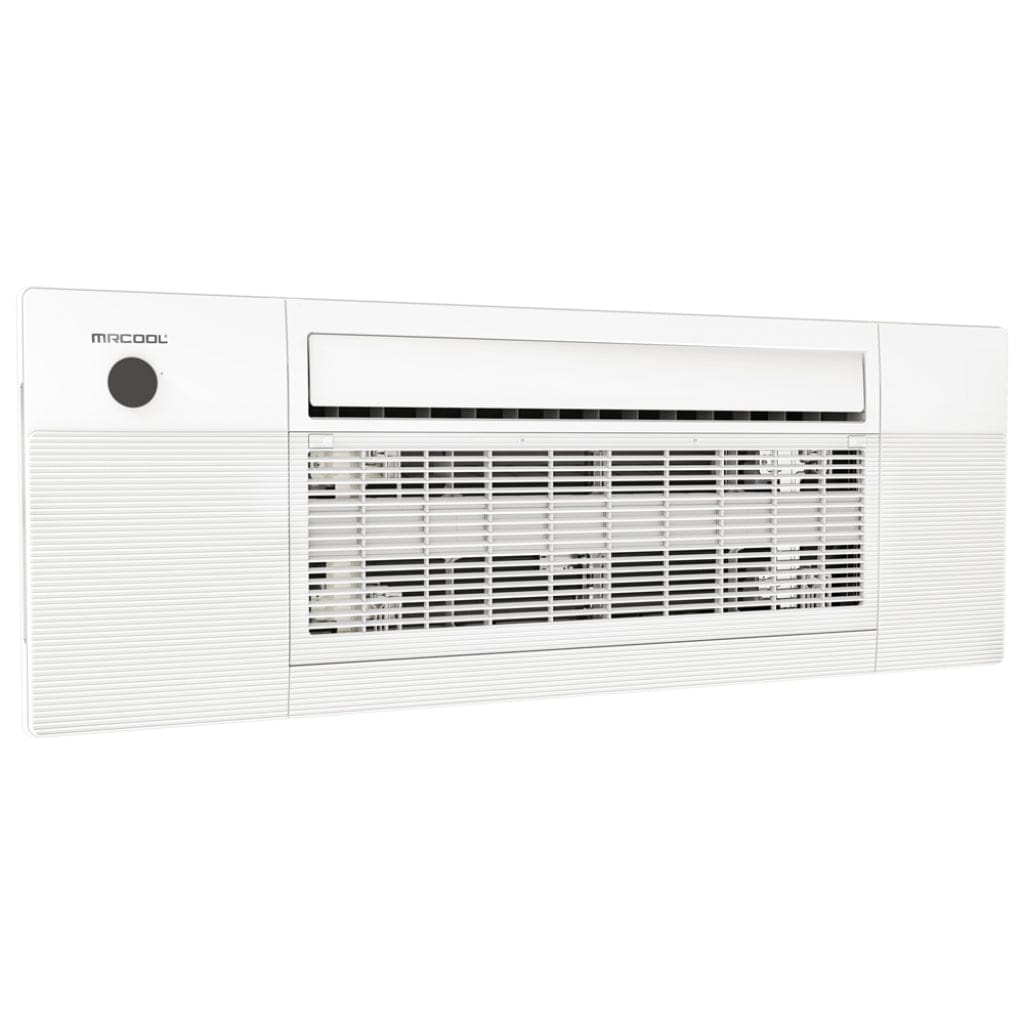

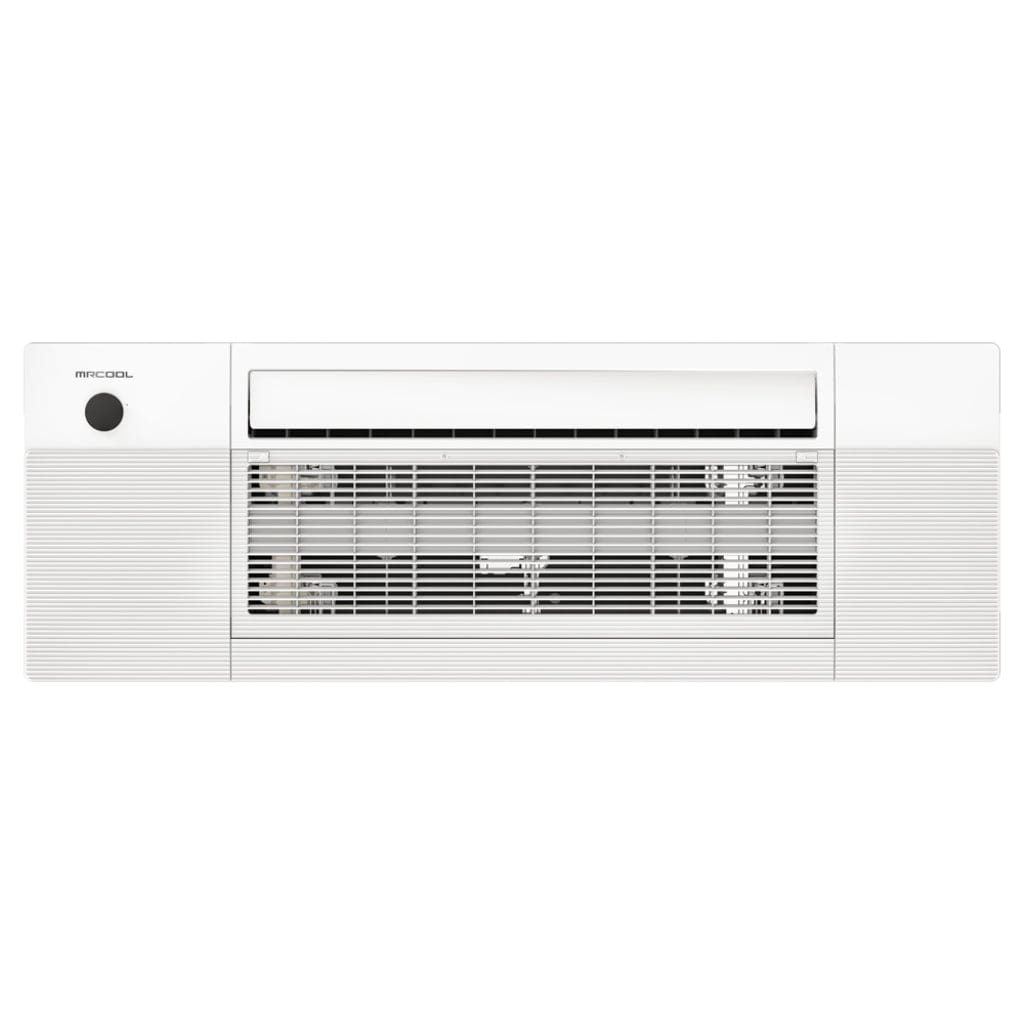

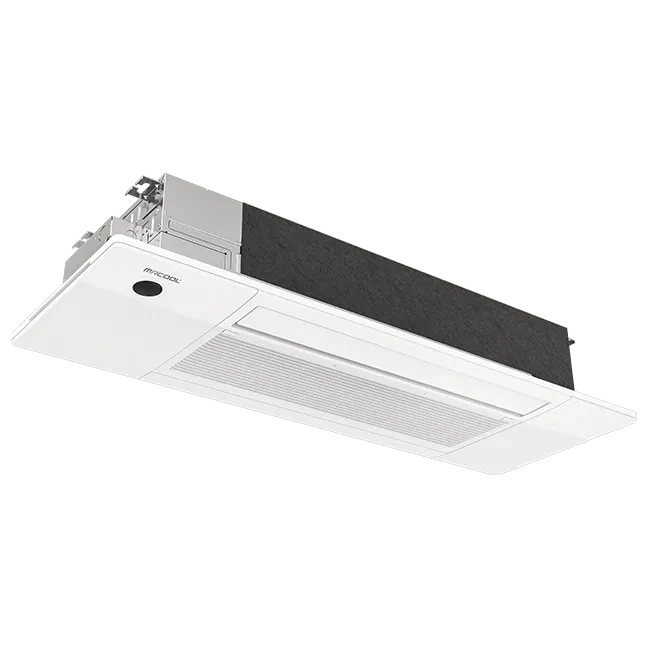

          The MRCOOL® DIY® Series OuttaSight™ 18k BTU Ceiling Cassette provides efficient heating and cooling while remaining out of sight and discreet, making it a perfect fit for any space. This easy to install and easy to maintain unit is offered in both single-zone and multi-zone options and can provide coverage for large and small spaces.

          The OuttaSight™ cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space.

          The OuttaSight™ works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series OuttaSight™ 18k BTU Ceiling Cassette are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.


          MRCOOL offers 3 models of DIY OuttaSight Ceiling Cassette:



          CA Residents: See Prop 65 Warning



          Features

            Discreet heating & cooling for any space

            The MRCOOL® DIY® Series OuttaSight™ Ceiling Cassette provides efficient heating and cooling while remaining discreet and out of sight, making it a perfect fit for any space. This unit, which is easy to install and maintain, is available in both single-zone and multi-zone options and can provide coverage for large and small spaces.

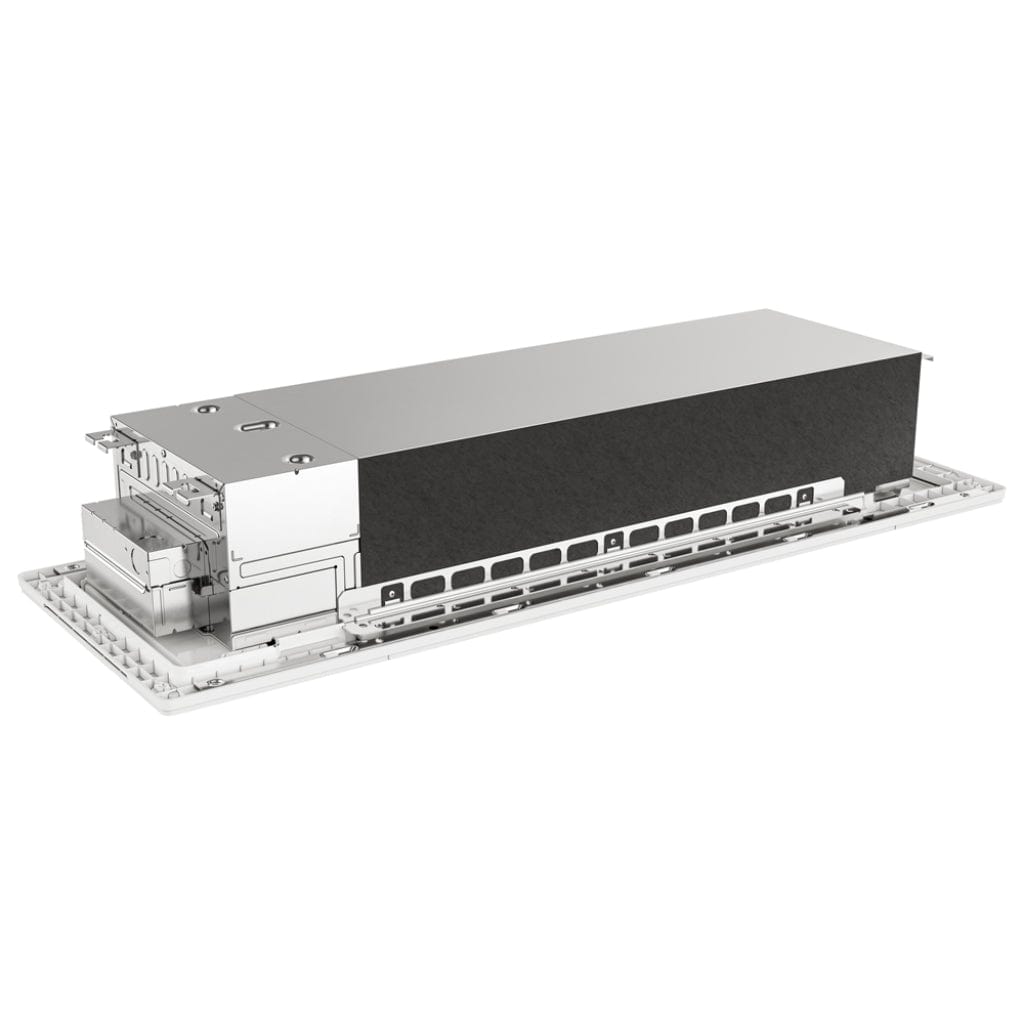

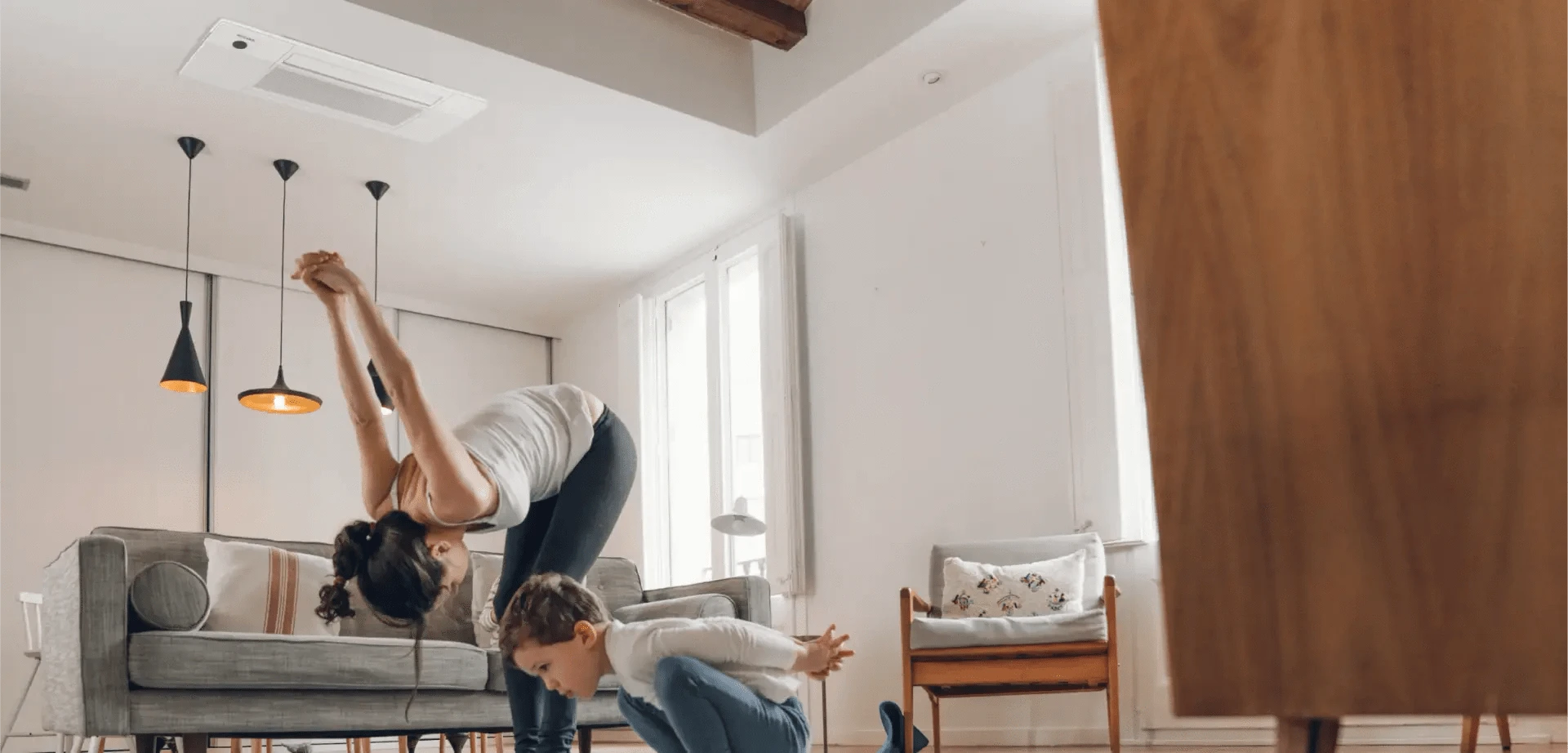

            Low profile installation

            You won't even know it’s there. The MRCOOL® DIY® Series OuttaSight™ offers a low-profile heating and cooling option to discreetly fit any space.



            New construction, retrofit, and anything between

            Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.



            Single & multi-zone possibilities

            This unit works with the MRCOOL® DIY® 4th generation series. The 18k ceiling cassette can also be installed as a single zone configuration.



            Installed as a single zone configuration
            The 18k BTU MRCOOL® DIY® OuttaSight™ Ceiling Cassette can be installed in a single-zone system. This unit can cover around 750 square feet in the precise temperature you want.

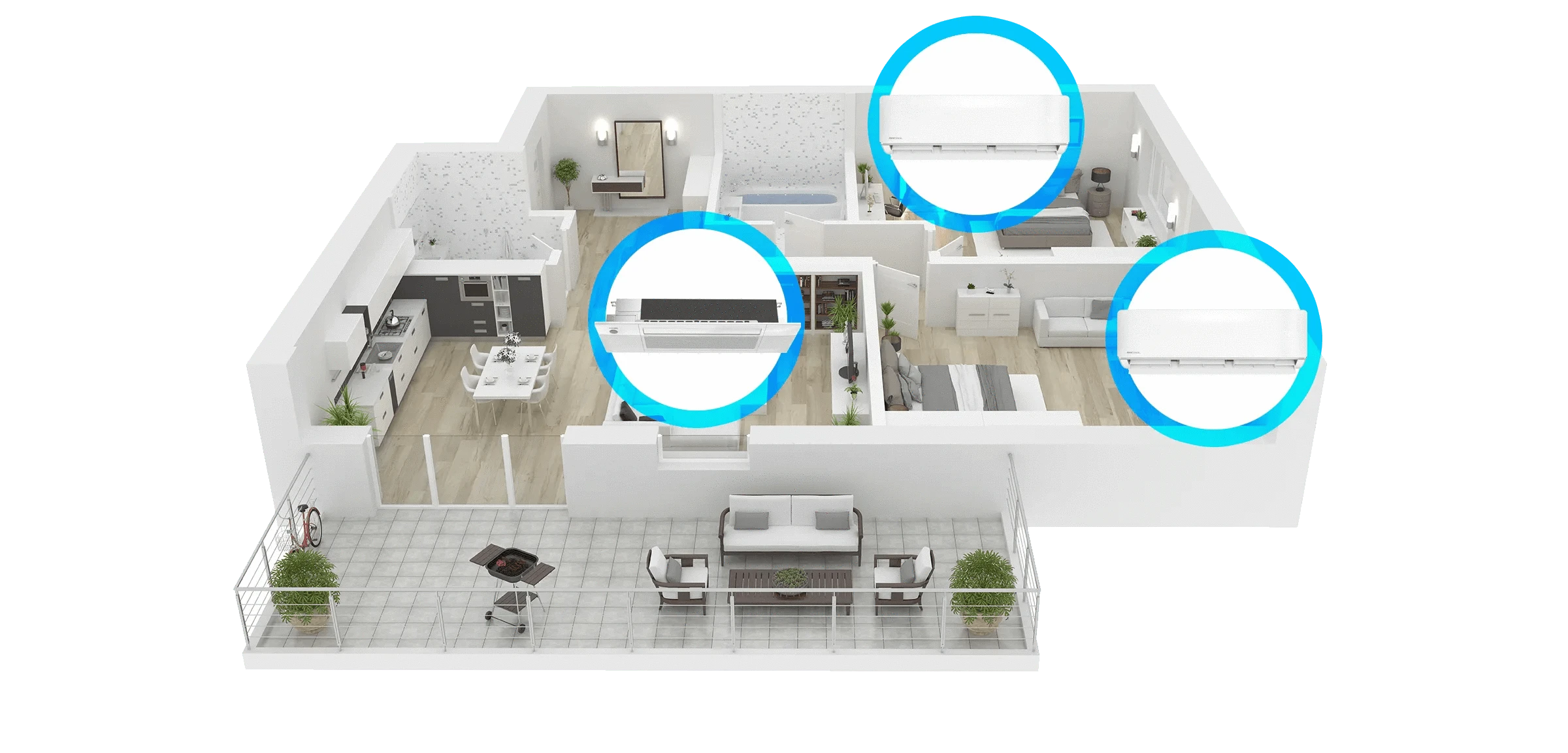

            Add it to your multi-zone configuration
            Our multi-zone MRCOOL® DIY® systems allow you to install both wall-mounted air handlers and the OuttaSight® Ceiling Cassette within the same system so you can mix and match your comfort to fit your needs.



            Compatible with smart technology

            The OuttaSight™ Ceiling Cassette not only offers total comfort, it offers totally customizable control. Set specific schedules, decide on your ideal temperature parameters, manage your settings and more from your phone with the Smart HVAC app.

            Enhanced control from anywhere

            Control your MRCOOL® DIY® OuttaSight™ wherever you are with your Apple or Android smart device and an internet connection.



            Best warranty in the business

            When paired with a 4th Generation MRCOOL® DIY® Ductless Mini-Split condenser, the DIY® Outtasight™ Ceiling Cassette have an optional LIMITED LIFETIME compressor warranty*, a 7-year compressor replacement* warranty, and a standard 5-year parts warranty for the original registered owner. See rules and restrictions here.

            Weight & Dimensions

            Net Weight (lbs) 44.97
            Gross Weight (lbs) 89
            Dimensions
            Height Width Depth
            Net 8.98" 50.31" 13.19"
            Gross 22.64" 57.60" 22.48"

            Specifications

            SEER Up to 21.8
            EER Up to 12.5
            HSPF-4 11.6
            HSPF-5 9.7
            Cooling Capacity (BTU) 17000
            Heating Capacity (BTU) 19000
            Voltage (V) 208-230
            Phase 1
            Cycle 60
            Max Fuse Breaker (A) 15
            Min Circuit Ampacity (A) 3
            Rated Load 1.5
            Decibel Rating (dBA) 40/28
            Decibel Rating Low (dBA) 21
            Decibel Rating High (dBA) 44
            Min Ambient Cool (°F) 60 ~ 90
            Min Ambient Heat (°F) 32 ~ 86
            Liquid Line Size 1/4
            Suction Line Size 1/2
            Blower Motor HP 598/510/352
            Blower Motor Speeds 4
            Blower Motor RPM 1344/1184/1024
            Filter Type Reusable
            Fan Only Option Yes
            Quiet Mode Yes
            Sleep Mode Yes
            Auto Cool Yes
            WiFi Compatibility Yes
            App Compatibility Yes
            Works with iOS Yes
            Works with Android Yes
            Remote Control Included Yes
            Registered Warranty Limited Lifetime Compressor
            Base Warranty 5-year Parts/7-year Compressor
            Base Parts Warranty 5-year Parts
            Registered Compressor Warranty Limited Lifetime Compressor
            Base Compressor Warranty 7-year Compressor
            Has Batteries Yes
            Contains Electronics Yes
            Contains Chemicals Yes
            Contains Aerosol Yes
            Contains Compressed Gas Yes
            Proposition 65 Warning Yes
            Restricted States GU; PR; VI
            Net Depth (in) 13.19
            Net Height (in) 8.98
            Net Width (in) 50.31
            Net Weight (lbs) 44.97
            Gross Depth (in) 22.48
            Gross Height (in) 22.64
            Gross Width (in) 57.6
            Gross Weight (lbs) 89

            FAQ

            What is the MRCOOL® DIY® OuttaSight™ Ceiling Cassette?

            The MRCOOL® DIY® OuttaSight™ Ceiling Cassette is a sleek, discreet, design-focused air handler option within the DIY® Ductless Mini-Split series. Designed for multi-zone systems but compatible with the single-zone 18k BTU DIY® Ductless Mini-Split, the OuttaSight™ comes in three different sizes: 9k BTUs, 12k BTUs, and 18k BTUs.



            Do you have to connect all of your air handlers at the same time when you're installing a Multi-Zone DIY® system?

            You do not need to connect all of your air handlers to a Multi-Zone DIY® Ductless Mini-Split system, but you do have to meet a certain BTU capacity depending on which condenser model you have. You must install at least 3/4ths of the BTU capacity of the condenser in air handlers for the system to work properly. This means that if you have a 36k BTU Multi-Zone DIY® Ductless Mini-Split condenser and four 9k BTU air handlers, you'll need to install at least three of them at the same time in order for the system to properly function.



            Are the indoor and outdoor components included?

            The MRCOOL® DIY® OuttaSight™ is a new air handler option to give you the choice between a ceiling cassette and a typical wall-mounted air handler. When you purchase a Multi-Zone DIY® system, you'll need to be sure that you select the OuttaSight™ Ceiling Cassette as an option.



            Does the system include the communication wire to connect the indoor to the outdoor unit?

            The OuttaSight™ will come with a DIYPRO™ cable, which securely connects the air handler to the condenser. This cable has a special, tough exterior that protects it from damage from weather, animals and pests, and lawn tools and appliances.

            What's Included?

            INCLUDED

            1x MRCOOL DIY OuttaSight Series 12K BTU Ceiling Cassette

            • 12000 BTU (Cooling and Heating)
            • 20.75 SEER
            • 12.5 EER

            MRCOOL No-Vac Quick-Connect Lineset (25 Ft.)

            • Designed for fast and hassle-free installation of the MRCOOL DIY Ceiling Cassette
            • It eliminates the need for specialized HVAC tools, refrigerant handling, or professional assistance, making it perfect for DIY installations
            • Its pre-charged, sealed system ensures an airtight connection, reducing the risk of leaks and improving efficiency

            WiFi Dongle

            • Allows you to connect the system to a wireless network for enhanced smart control and remote operation using a smart phone or tablet

            MRCOOL Remote

            • Allows you to conveniently operate and adjust your ceiling cassette unit without direct access to it.
            • It enables precise temperature control, mode selection, and fan speed adjustment, ensuring a comfortable indoor environment

            Warranty

            • Registered Warranty: Limited Lifetime Compressor
            • Base Warranty: 5-year Parts / 7-year Compressor
            • Base Parts Warranty: 5-year Parts
            • Registered Compressor Warranty: Limited Lifetime Compressor
            • Base Compressor Warranty: 7-year Compressor

            Downloads

            • MRCOOL DIY OuttaSight Ceiling Cassette Brochure - Download
            • MRCOOL DIY OuttaSight Ceiling Cassette Installation Manual - Download
            • MRCOOL Remote Control User Manual - Download
            • MRCOOL  Trouble Shooting Guide - Download
            • MRCOOL 4th Gen DIY Series Warranty Document - Download
            • MRCOOL Multi Zone Matchup Guide - Download

            ★★★★★
            ★★★★★
            ★★★★★
            ★★★★★

            Get in touch with us

            Text or Call : 888-556-5886 or simply start a live chat with our experts.

            Average response time is 39 seconds. We are open 7 days a Week; 8:00 AM - 8:00 PM EST

            support@epowerguys.com

            6 Reasons Why Clients Recommend Us:

            Collapsible content

            FREE SHIPPING

            On all orders over $500

            110% LOWEST PRICE GUARANTEE

            We will beat the competitors' price. With us, you buy knowing you get the best deal

            FREE RETURNS (FOR REAL!)

            For all eligible returns, we DO NOT charge any shipping fees or restocking fees.

            BIGGEST SELECTION AVAILABLE ONLINE

            We work with the best Manufacturers on the market. If competition has it out of stock, we will get it for you.

            REAL PEOPLE HERE TO HELP

            Our Customer Service team is here for you 7 days a week. You will always get customized help and assistance.

            SAFE & SECURE ORDERING

            Secure checkout on a website ensures that your personal and payment information is encrypted and protected during the transaction.

            • Live Chat Support

              or call 888-556-5886

            • No Restocking Fees

              $0 Restocking Fees

            • No Sales Tax

              $0 Sales Tax!
